Mountz EPC-10 Controller
The EPC-10 wireless controller operates with only the EPT-Series Transducerized Smart Cordless Screwdrivers. One controller can be used with up to 8 screwdrivers.
Mountz EPT transducerized smart cordless screwdriver systems provide engineers and operations with the latest error-proofing technology that eliminates manufacturing risks and prevents product defects.
The EPT control system monitors and controls all aspects of the fastening process, from installing error-proofing disciplines to adaptive fastening strategies.
Combined with built-in screw counters and error-proofing software, Mountz DC control tools offer maximum production results and product oversight. The EPT control system monitors and controls all aspects of the automation process, from installing error-proofing disciplines to adaptive fastening strategies.
EPT-Series drivers offer a torque range suitable for low and higher torque applications.
All Mountz DC controllers include free product software for programming and analysis – no annual licensing is required.
Optimize Your Manufacturing Process:
- Using the EPT driver and EPC-10 controller, engineers can provide operators with on-screen step-by-step instructions for up to 15 assembly processes.
- Job Manager interface makes it easy to create, save and recall visual assembly instructions for an operator to use. Program or verify parameter settings for cordless screwdrivers.
- Using a smart tool reduces tooling costs and improves operations by optimizing a company’s manufacturing footprint. A single electric screwdriver fastening system can replace up to 15 screwdrivers.
- NEW – MountzCom III Software: Empower your team to maximize productivity, efficiency, and control of your tools like never before with an improved suite of quality-of-life improvements. Customization meets simplicity with MountzCom III’s user role preferences. Tailor access and permissions to individual team members, granting them the right level of control and visibility. Our software ensures that every user experiences a role centered interface, reducing errors in selecting and editing parameters.
- Description
- Reviews (0)
Description

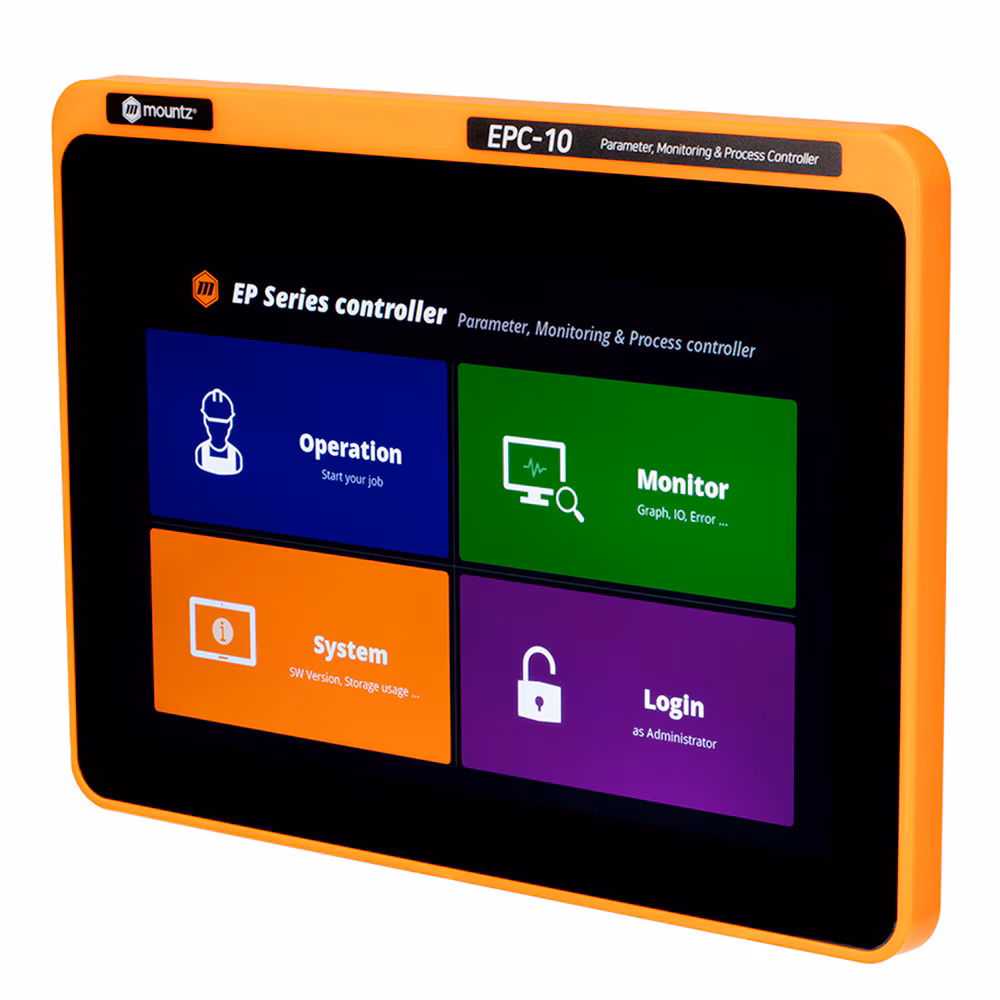

The Mountz EPC-10 controller is the wireless brain of the EPT-Series transducerized cordless screwdriver system: one EPC-10 controller programs, monitors and records up to 8 EPT screwdrivers. Phil Industries, an authorised Mountz distributor in Singapore, supplies the EPC-10 with the EPT pistol grip and right angle tools, on-site set-up and after-sales support.
CHOOSE THE MODEL BELOW FOR PURCHASING DETAILS
| Model | Item Name / Number | Input VAC | |
|---|---|---|---|
 |
EPC-10 Controller | 313005 | 100 ~240V, 50–60Hz,0.35A |
Where the EPC-10 Controller fits in Singapore
On a Singapore assembly line the EPC-10 does the work that used to sit in a paper traveller. It holds 15 presets and 15 models of up to 20 steps each, shows operators step-by-step pictures on its touch screen, and stores every fastening result on an SD card with mean, standard deviation, Cp and Cpk. Because it offers digital I/O for PLC interlocks and reads the barcode scanner built into the EPT tool, it can select the right program per work order and block a unit that has a missing or under-torqued screw. As a result, EMS, semiconductor equipment and medical device plants use it as the traceability record for critical joints.
Pair it with

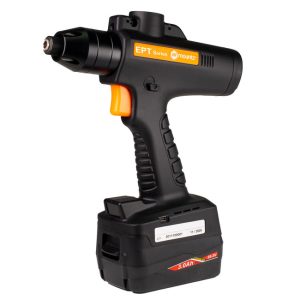

- EPT-Series pistol grip cordless screwdriver
- EPT-Series right angle cordless screwdriver
- 44P I/O wiring box for the EPC-10
- Mountz batteries and chargers
- Mountz DC control tools
- torque control basics
Frequently asked questions about EPC-10 controller
Which tools work with the EPC-10 controller?
The EPC-10 works only with Mountz EPT-Series transducerized cordless screwdrivers, both pistol grip and right angle. One controller serves up to 8 tools at once.
Do I need one EPC-10 per screwdriver?
No. A single EPC-10 controller manages up to 8 EPT screwdrivers wirelessly, so one controller can cover a whole assembly cell.
What data does the EPC-10 record?
It stores torque, angle and result for every fastening on an SD card and calculates mean, standard deviation, Cp and Cpk on the controller. MountzCom III software, included at no annual licence fee, downloads and analyses the data.
Can the EPC-10 connect to my PLC or line control?
Yes. Digital I/O signals let the EPC-10 interlock with a PLC or line controller, for example to release a pallet only after all screws pass. The optional 44P I/O wiring box simplifies the wiring.
Can Phil Industries demonstrate the EPC-10 and EPT system in Singapore?
Yes. Phil Industries is an authorised Mountz distributor in Singapore. Our engineers can demonstrate the EPC-10 and EPT system on your line, help you select the model and controller, and quote the complete system. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
- Control screwdrivers remotely
- Connect up to 8 EPT cordless screwdrivers
- Front panel 10.1″ Color LCD with touch screen
- 16 Input & 16 Output flexible I/O (25P D-Sub
- Communication 1 x RS232C, 1 x Ethernet, WiFi
- Protocol: Modbus
- 4.0 MES system ready
- Mini SD Card data memory slot (memory card included)
- Mounting bracket included
- Supports barcode scanner
Error-Proofing
- Job Manager interface makes it easy to create, save and recall visual assembly instructions for an operator to use. Program or verify parameter settings for cordless screwdrivers
- Provide operators with on-screen step-by-step instructions with pictures for up to 15 assembly processes.
Process Optimization
- Fastening Quality Control: OK/NG monitoring of screw fastening by a preset pattern of angle and/or time
- Fully programmable via the touch screen.
- PC-based program for parameter settings, monitoring, and real-time output
- The built-in screw counting function ensures that all screws are accounted for during the assembly process.
- Digital I/O allows interfacing with a machine & PLC interface for line control monitoring techniques.
- Programmable fastening sequences and workflows. Create standardized fastening workflows.
- Program up to 15 presets and 15 models, consisting of up to 20 steps for each model.
Data Collection and Analysis
- Data collection – record and store torque and fastening data.
- Collect and store essential quality data in a repository for data analytics, regulatory compliance, and traceability.
- Provides fastening torque data analysis (Standard Deviation, Mean, Average, CP, CPK ).
Mountz Quality Standards
- Clean room compliant (ISO14644-1 2015 Class 5)
- Free product software — no annual licensing required — savings of $2K.
Operates with Cordless Screwdriver Models: EPT-Series
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
Mountz also publishes further datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
