Mountz BF-Series Mini Screwdriver Models
The Mountz BF-Series mini screwdriver models are the smallest drivers in the range. They handle micro fasteners where a standard driver is simply too coarse.
- Torque: 0.17–3.9 lbf.in — the lowest band Mountz offer
- Built for micro screws in optics, medical devices and small electronics
- Drive: 1/4″ F/Hex
- ESD-safe housings on the ESD models, for use inside an EPA
- Pick the model from the table below — torque range, drive size and item number are listed per model
- From Phil Industries, an authorised Mountz distributor in Singapore — held at our Ubi warehouse
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | Requires Program Lock Key | |
|---|---|---|---|---|---|---|---|
 |

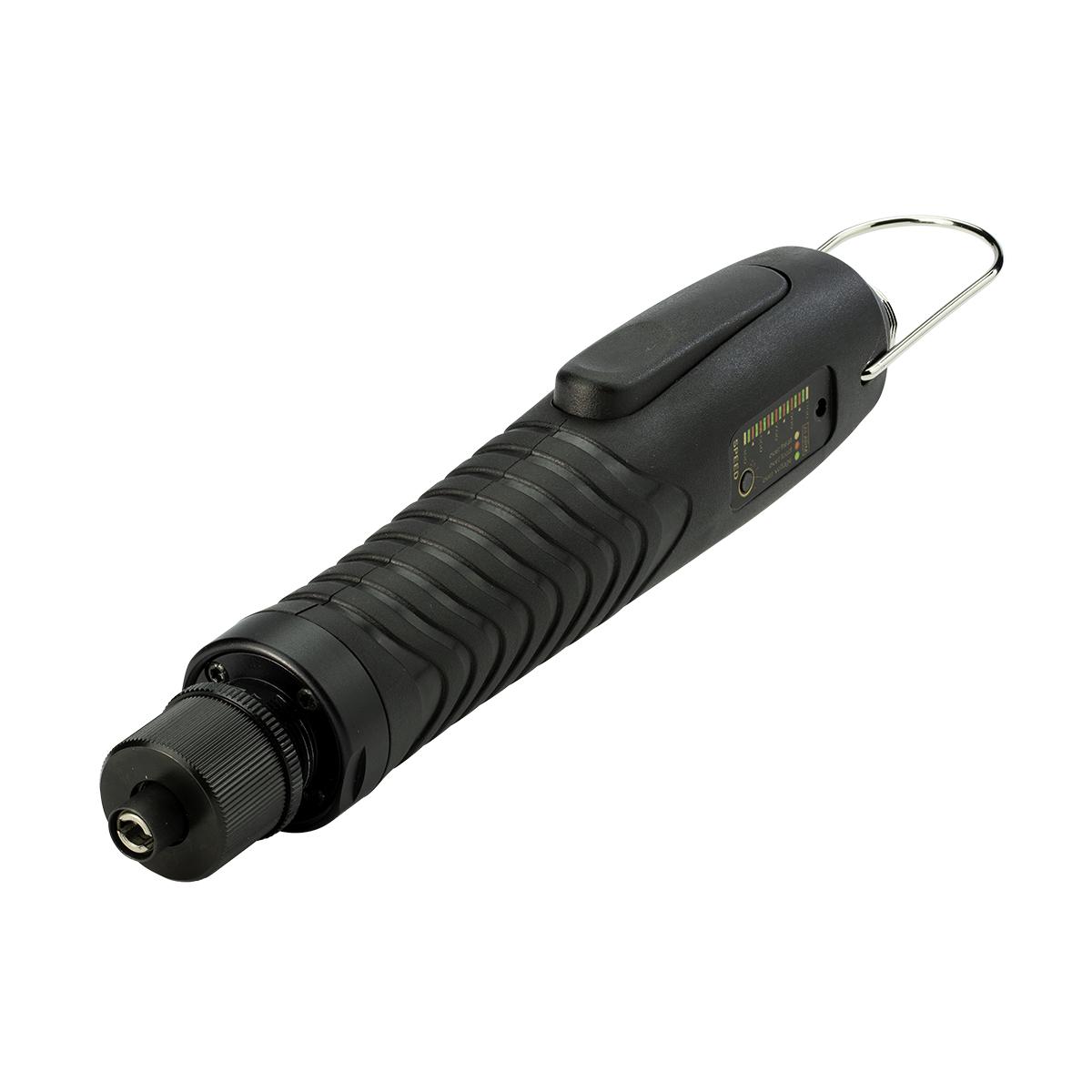

BF035E ESD | Lever Start | 145844 | 0.17 – 3 lbf.in | 2 – 34.3 cN.m | 4mm Dr. | T |
 |

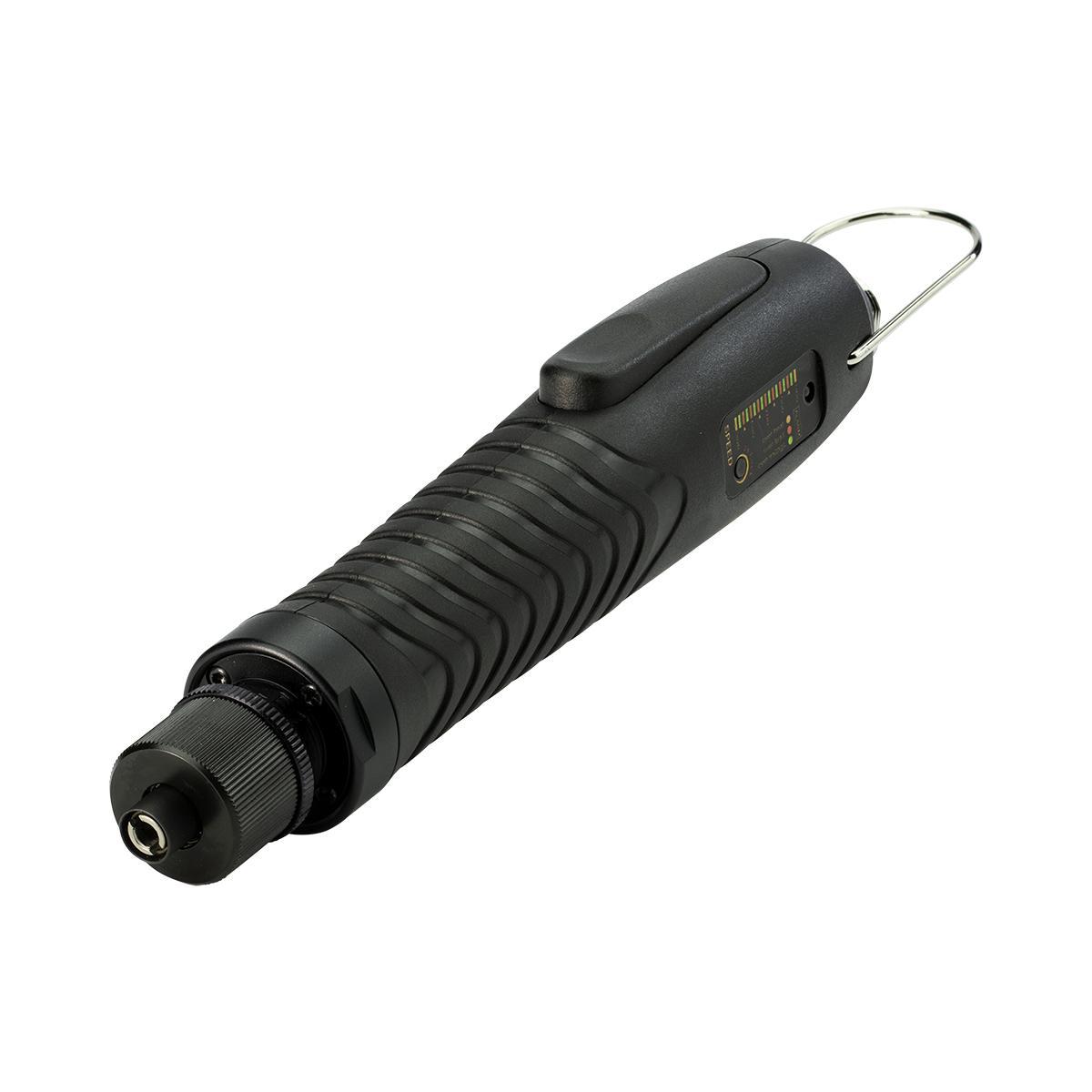

BF045E ESD | 4mm Drive | 145845 | 0.35 – 3.9 lbf.in | 4 – 44.1 cN.m | 4mm Hios Dr. | T |
Calibration and Preventative Maintenance
- View the calibration and preventative guidelines for Mountz electric screwdrivers.
- BF-Series mini models range from 0.17 to 3.9 lbf.in. Suitable for micro torque applications.
Error-Proofing
- The external torque adjustment scale allows team leaders to change torque quickly and easily. For an extra layer of error-proofing, add a torque cover that prevents operators from making adjustments without approval, preventing mistakes.
Process Improvement
- Designed for high-production environments, BF drivers experience minimal heat build-up, even when the tool is operated continuously. Over Heat Protection (OHP) and Over Current Protection (OCP) protect drivers from damage or malfunction.
- ESD safe tool prevents electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation, and profitability.
- BF-Series drivers can be connected with the Scout Screw Counter for an additional layer of error-proofing.
- Precision “Soft-Stop” clutch prevents shock to sensitive assemblies like disk drives, plastics, electronics, etc.
- The screwdriver features a selectable soft start mode (from 0.2-0.6 seconds) that controls the initial speed ramp. Adjust the starting speed of an electric screwdriver for a slow rotation, which allows for smooth engagement between fasteners and parts. It helps prevent cross-threading.
- BF-Series Mini Models feature an adjustable RPM setting on the tool. The RPM setting is adjusted with designated RPM increments within the range of the tool model.
Mountz Quality Standard
- High-performance Swiss Maxon brushless motor design provides durability and reduces the standard maintenance costs for electric screwdrivers.
Set-Up
- Requires STC 40 Transformer or FT-30D Mini Transformer (power supply).
- Requires Program Lock Key (Item # 145774) in order to adjust RPM & Soft Start Settings for select BF-Series models. The Program Lock Key must be plugged into the STC40 or FT-30D Transformer.
Set-Up
- Requires STC 40 Transformer or FT-30D Mini Transformer (power supply).
- Requires Program Lock Key in order to adjust RPM & Soft Start Settings for BF-Series mini models. The Program Lock Key must be plugged into the STC40 or FT-30D Transformer.
- Drive Adapter: 4mm HIOS drive to ¼” F/Hex drive on the BF-Series mini driver.
Error-Proofing & Process Improvement:
- Torque Cover: for BF035 and BF045 models only. Torque cover protects the BF-Series electric screwdriver from incidental adjustment or operator tampering with the tool.
- Screw Counter: Add an error-proofing device to the BF driver, eliminate costly screw fastening errors and reduce scrap rates. The fastener tracking device counts the number of screws delivered and detects and displays fastening errors in real-time such as cross-threading, stripped screws, cam-outs, unfinished rundowns, and parts with missing screws.
- Screw Presenter: Deliver up to two screws per second to a fixed point where a human or robotic operator picks them up, cutting production time in half.
- Mag-O-Nets: Magnetize a bit by sliding it onto the bit—commonly used with a screw presenter.
- Vacuum Adapters: The kit is mounted on an electric screwdriver with a suction head that holds the screw on the bit, enabling the operator to pick it up with the tool. This effective, time-saving device works with most fasteners—commonly used with a screw presenter.
Ergonomics:
- Tool Balancers: Provides easy handling for operators that work with power tools for long, continuous hours. A balancer enables a tool to be positioned over the workstation and helps workers avoid fatigue which can lead to low productivity, mistakes, and injuries.
- Ergonomic Torque Arms: Providing ergonomic solutions for your assembly line workers lessens fatigue, prevents injuries, and boosts productivity. Torque arm absorbs the torque reaction generated by a power tool. Mountz offers various arm configurations for flexible and mobile workstation designs. The ergonomic torque arms improve employee safety.
- Tool Stand: Prevent damage to power tools from dropping. Convenient tool positioning – adjust both vertically and horizontally.
Service & Calibration
- Torque Analyzers & Sensors: If torque tools slip out of calibration, that could impact the quality of your products. Having an accurate way to test calibration onsite regularly is a great way to reduce risk. With Mountz torque analyzers and sensors, you can test tools before they go into service daily or weekly.
- Run-Down Adapters: It is used when testing power tools with a torque analyzer or sensor. The run-down adapter (RDA) is designed to provide consistent and reliable torque readings for power-driven torque control tools. An RDA reduces the impact and irregular peaks that cause poor repeatability. The device is mounted in-line between the tool drive and the transducer.
Mountz publishes datasheets and manuals for this product. For this reason, we send the current PDF set with every quotation. To receive them now, email sales@phil-industries.com.sg or WhatsApp +65 9853 9030 with the model number you are considering.
CAD drawings and parts lists for each model are available on request. As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
Related Mountz pages in Singapore
- Browse all BF-Series and the wider Power Assembly Tools range.
- See the full Mountz torque tools range in Singapore.
- Read our engineers’ guides to torque control basics and choosing between a torque wrench, screwdriver or multiplier.
- Verify tool output in-house with the Mountz EZ-TorQ III torque analyzer.
Phil Industries, an authorised Mountz distributor in Singapore, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
