Two-Layer ESD Rubber Sheet Mat
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | EM0103 |
- Description
- Reviews (0)
Description
This two-layer ESD rubber mat is available in Singapore from Phil Industries. Two Layer Electrostatic Discharge Mat ESD Rubber Sheet provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD rubber mats in Singapore, Phil Industries offers island-wide delivery on all two-layer ESD rubber mat products.
Detailed Product Description

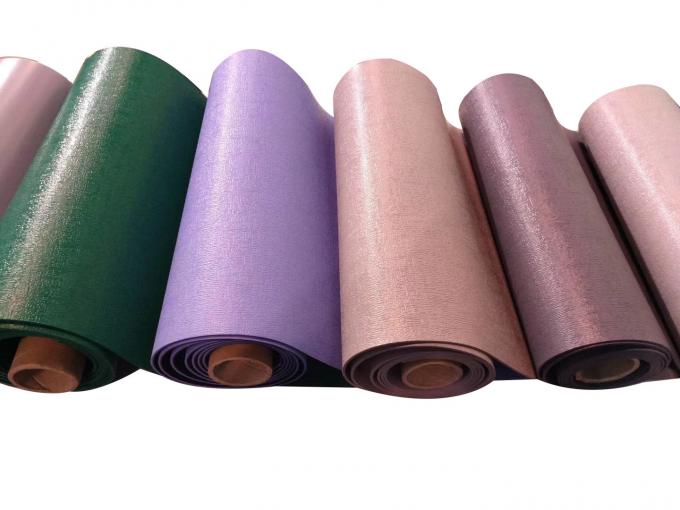

Two Layer Electrostatic Discharge Mat Esd Rubber Sheet Vinyl Material
Description
Sulphur easily reacts with other substances to cause decoloring of the products and bring harm to huaman body. Our Dissipative Table Mat/Floor Mat does not contain sulphur. It has a solid vinyl homogeneous construction, which provides superior physical and electrical qualities. Temperature resistance to 70deg.
Our normal size(roll) are 1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T). It is available in rolls or ESD work surface mat kits which include a ground snap and common point ground. We can cut mats to special sizes, so please contact us if you have special size requirements.
Many colors for options, custom colors accepted. If you have a quantity no less than 300 square meters, just let us know the Pantone color, we will customize for you
Features
1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor
2, Two layers contruction proportion 1:1
Top Static Dissipation Layer (Color: Green/Blue/Grey options)
Bottom Conductive Layer (Color: Black)
3, Some of the Characteristics are as follows:
| Dissipative Table Mat/Floor Mat | Specification | Color | ||
| Static Dissipation layer | Surface resistance | 10⁸–10⁹ |
1.2mx*10mx*2mm(T) 1.0mx*10mx*2mm(T) |
Blue, Grey, Green |
| Friction static potential V | ＜100 | |||
| Conductive layer (black bottom) | Surface resistance | ≤10⁶ | ||
| Friction static potential V | ＜60 | |||
| Static voltage attenuation period | 5000 – 500V | ＜1.9s | ||
| Flame retardation | GB4609-84, FV-0 (less than 10S) | |||
| Volume resistance | 10⁷–10¹⁰ Ωcm | |||
| Physical performance index of Dissipative Table/Floor Mat | ||||
| No. | Description | Test reference | Results | |
| 1 | Tensile strength | GB 1040 | 3.6Mpa | |
| 2 | Fracture elongation | GB 1040 | 188% | |
| 3 | Tear elongation | GB/T 529 | 20.6KN/m | |
| 4 | Rebound elasticity (the specimen is laminated with 6 layers of sheets) | GB/T 1681 | 14% | |
| 5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage | |
| at -25℃ | ||||
| 6 | Permanent compression change rate, 70℃*22h, compression 25% | GB 10654 | 17.90% | |
| 7 |
Hot air ageing |
Tensile strength change rate |
GB/T 7141 |
8.00% |
| Fracture elongation change rate | -3.80% | |||
| Weight loss on heating | 1.08% | |||
| Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141. | |||
About Temp Resistance
| Item | Permanent /degree | Flash /degree |
| ESD Rubber Mat | 160 | 300 |
| ESD Vinyl Mat | 70 | 120 |
