Teeth-Shape ESD Brush – Conductive Plastic Handle

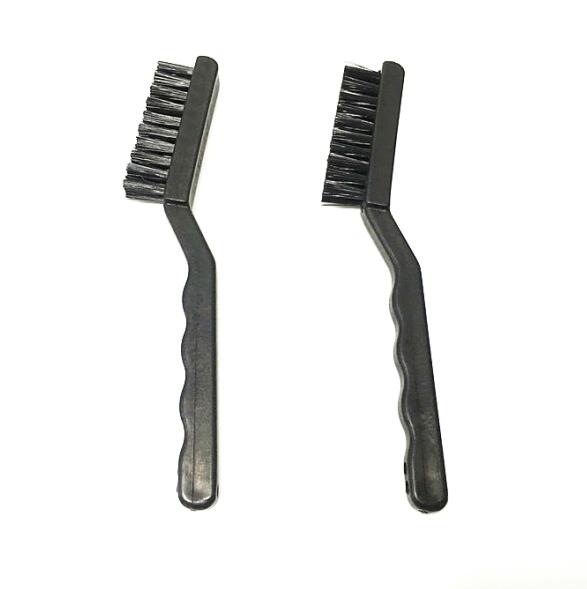

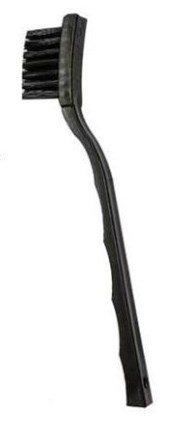

Teeth Shape ESD Safe Brush Conductive Plastic Handle With Synthetics Fibers

Description

1, ESD brushes are needed in electronics manufacturing, they help to clean the PCB’s (remove dirt, flux residues etc.), and discharge static electricity through properly ESD grounded operator.
2, Conductive brushes minimize static charge generation during cleaning.
3, Black static dissipative polypropylene handles are able to pass the charges to the ground.
4, Conductive fibers resistanc: 10³–10⁴ Ω, Dissipative handle resistance: 10⁵–10⁸ Ω
5, There’re neutral brushes, harder brushes and soft brushes:

Harder brushes are used mainly for electronics in manufacturing and service of the circuit boards.
Soft brushes are used for cleaning optics, micro-circuits etc.

Specifications

Picture	Part Number	Rows and Bristles	Description	Total length (mm)	Bristle Length (mm)	Bristle Width (mm)	Bristle Height (mm)
	B-01	3 rows 20 bristles bundles	ESD Teeth Brush / Small	175	31	10	16mm
	B-02	3 rows 20 bristles bundles	ESD Teeth Brush / Medium	185	36	12	16mm
	B-03	2 rows 20 bristles bundles	ESD Teeth Brush / Large	175	60	10	18mm
	B-04	3 rows 34 bristles bundles	ESD Teeth Brush / X-Large	225	94	16	22mm
	B-S-04	3 rows 34 bristles bundles	ESD Teeth Brush / X-Large / Sharp Handle	225	94	16	22mm

Applications

More Details

A, ESD Teeth Brush / X-Large / B-04

B, ESD Teeth Brush / Small / B-01

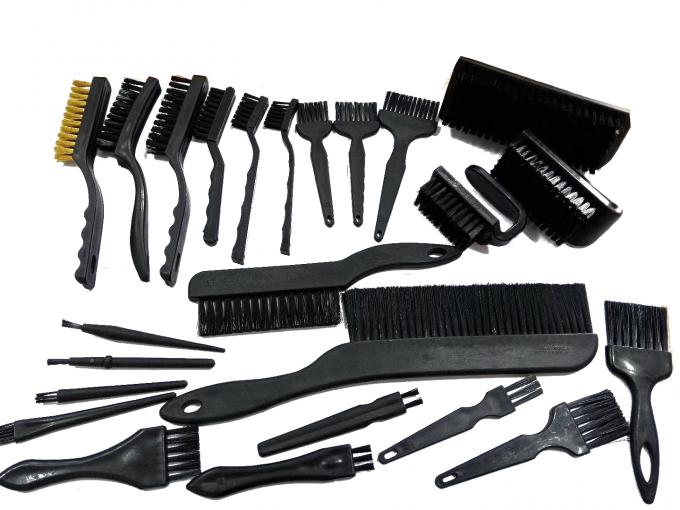

C, ESD Brush Family
