SMT ESD Magazine Rack – Screw Adjustable
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | MR6602 |
- Description
- Reviews (0)
Description
This magazine rack ESD magazine rack is available in Singapore from Phil Industries. Smt ESD Magazine Rack Adjustable Throught Screws Size 3 provides reliable ESD protection for packaging and electronics manufacturing. As a supplier of ESD packaging materials in Singapore, Phil Industries offers island-wide delivery on all magazine rack ESD magazine rack products.
Detailed Product Description

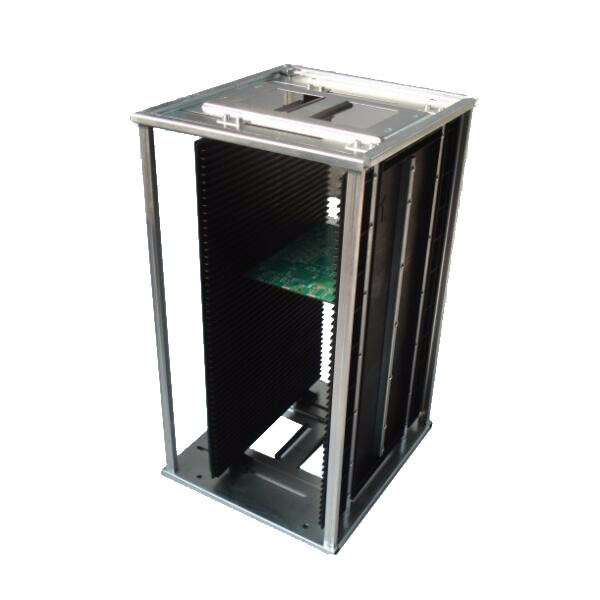

SMT ESD Magazine Rack Adjustable Throught Screws Size 355x315x580 mm
Model: MR6602
Description
1, Surface resistance: 10⁴–10⁸ Ohms(80-100℃)
2, External dimension: 355x315x580mm
3, Available for storing 50 pieces of PCB plates
4, Sizes of PCBs to be accommodated: 355*(80-250)mm
5, Side guide slot, with depth of 3.2mm, width of 7mm and pitch of 10mm
6, The top and bottom boards are made of plastic
7, Adjustable throught screws
8, Can be stacked, and hooks design at left and right allow for proper placement
Features
1, Automation requires precision. For the use of the PCB Magazines in automated assembly lines, precision, stability and flexible are our most important quality assurance.
2, The stable and robust frame construction guarantees a long lasting use of the magazine rack in your production.
3, The rack walls are manufactured from conductive materials
Standard Size Table & Information
| Model NO. |
Base Material |
Adjust |
Heat- Resistan Temp(℃) |
Outer Dimension (mm) |
Adjustable Width (mm) |
Ref. Position (mm) |
Side board structure |
Weight (kg) |
|||
| L | W | H | Material | structure | |||||||
| MR6601 | Metal |
Gear track |
100 |
400*320/380 *563 |
50-250/ 300 |
34 | Polystyrene |
Combined panel |
7.2 | ||
| MR6602 | Plastic | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene | Whole panel | 5.1 | ||
| MR6602F | Metal | Screw | 80 | 355*315*580 | 80-250 | 34 | Polystyrene |
Whole panel |
5.2 | ||
| MR6603 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.2 | ||
| MR6603G | Metal |
Gear track |
230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
7 | ||
| MR6603GL | Metal |
Gear track |
502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6604 | Metal | Screw | 100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.1 | ||
| MR6604G | Metal | Screw | 230 | 355*320*563 | 50-250 | 34 | Polycarbonate |
Combined panel |
6.9 | ||
| MR6604GL | Metal | Screw | 502 | 355*320*563 | 50-250 | 34 | Aluminum |
Combined panel |
6.7 | ||
| MR6605 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
4.9 | ||
| MR6606 | Metal |
Gear track |
100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.5 | ||
| MR6606G | Metal |
Gear track |
230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6607 | Metal | Screw | 100 | 460*400*563 | 50-330 | 34 | Polystyrene |
Combined panel |
7.4 | ||
| MR6607G | Metal | Screw | 230 | 460*400*563 | 50-330 | 34 | Polycarbonate |
Combined panel |
9.7 | ||
| MR6608 | Metal |
Gear track |
100 | 535*460*570 | 50-390 | 34 | Polystyrene |
Combined panel |
10.5 | ||
| MR6609 | Metal |
Gear track |
100 | 535*530*570 | 120-460 | 34 | Polystyrene |
Combined panel |
12.7 | ||
| MR6666 | Metal |
Belt drive |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
7 | ||
| MR6663 | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
5.7 | ||
| MR6665 | Plastic |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Whole panel |
4.4 | ||
| MR6610 | Metal | Screw | 100 | 355*320*563 |
50-225 /75-225 |
34 | Polystyrene |
Combined panel |
7 | ||
| MR6611 | Metal |
Gear track |
100 | 355*320*363 | 50-250 | 34 | Polystyrene |
Combined panel |
4 | ||
| MR6603k | Metal |
Gear track |
100 | 355*320*563 | 50-250 | 34 | Polystyrene |
Combined panel |
5.3 | ||
Top and Bottom Metal Materials also Available Model 6602F/Screw Adjustable
