ESD-Safe PU Chair with Chrome Base

Polyurethane ESD Safe Chairs Anti Static w/Chrome Base And Aluminum Castor

Polyurethane Electrostatic Discharge Chair: AC3310

Description: Anti-static ESD safe chair for clean room class 1,000-10,000

Applications: Effective contamination and static control for cleanroom, semi-conductor, aerospace, bioscience, pharmaceutical, computer, medical device, medical equipment and munitions industries

Features

1) Color: black

2) Height adjustable, optional available for backrest adjustable

3) 360° swivel, easy-to-use pneumatic seat height adjustment from 460-620mm

4) Lifetime guarantee on the pneumatic cylinder

5) Optional for high performance footring diameter 400mm

6) 5-Star chrome steel base radius 260mm or 300mm for options, with conductive grounding chain

7) Meets ESD standards, system resistance 10⁶–10⁹ ohms

8) No tools needed for assembly

9) More details as below

Parts List

• Support Bar Q’ty 1pcs ( L-shape, width 60mm & thickness 6mm)
• Backrest w/hinge assembly and handwheel Q’ty 1pcs
• Seat w/control Mechanism Q’ty 1pcs
• Chrome Five-star Base Q’ty 1pcs
• Pnuematic Cylinder Q’ty 1pcs
• Glides/Casters Q’ty 5pcs
• Footring (optional) Q’ty 1pcs
• Armrests (optional) Q’ty 1pair

Assembly Instructions

1.  Insert glides or casters into each leg of the base.
2.  Slide footring (if enclosed) onto cylinder.
3.  Slide the cylinder into the center of the base.
4.  Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
5.  Slide screw through slot in back support bar so it is aligned with the two raised squares on hinge assembly, then position white washer against back bar and then tighten handwheel securely.
6.  Slide bottom of back support bar into the opening of the control mechanism underneath back of seat. Tighten handwheel securely.
7.  Optional arms available for ESD leather seat series. Slide arm bracket into mounting plate attached underneath seat. Tighten handwheel securely.

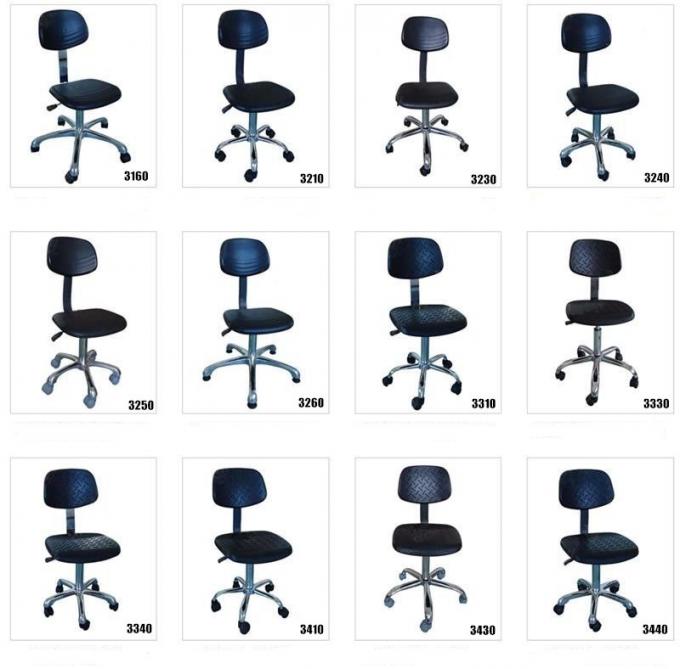

More Styles
