Mountz MSP-Series
The MSP is a small, tabletop screw presenters used to organize and automate work areas and production cells. Screw presenters make assemblers and the assembly process more efficient by mechanically presenting a screw to a fixed pick up point. Conventional assembly methods cause assemblers to inefficiently fumble with screws that are stored in bins or shaker trays. The enhancement of productivity is estimated to improve assembly time by nearly fifty percent. The inexpensive screw presenter is an alternative tool instead of the cumbersome and very expensive screwfeeder systems.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Screw Max Head Diameter “d” | Screw Dia Adjust Capacity “d” | Screw Max Head Height “t” | Screw Max Length “L” | Tool Length (IN) | Tool Width (IN) | Tool Height (IN) | Tool Weight | Tool Weight Unit – American | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

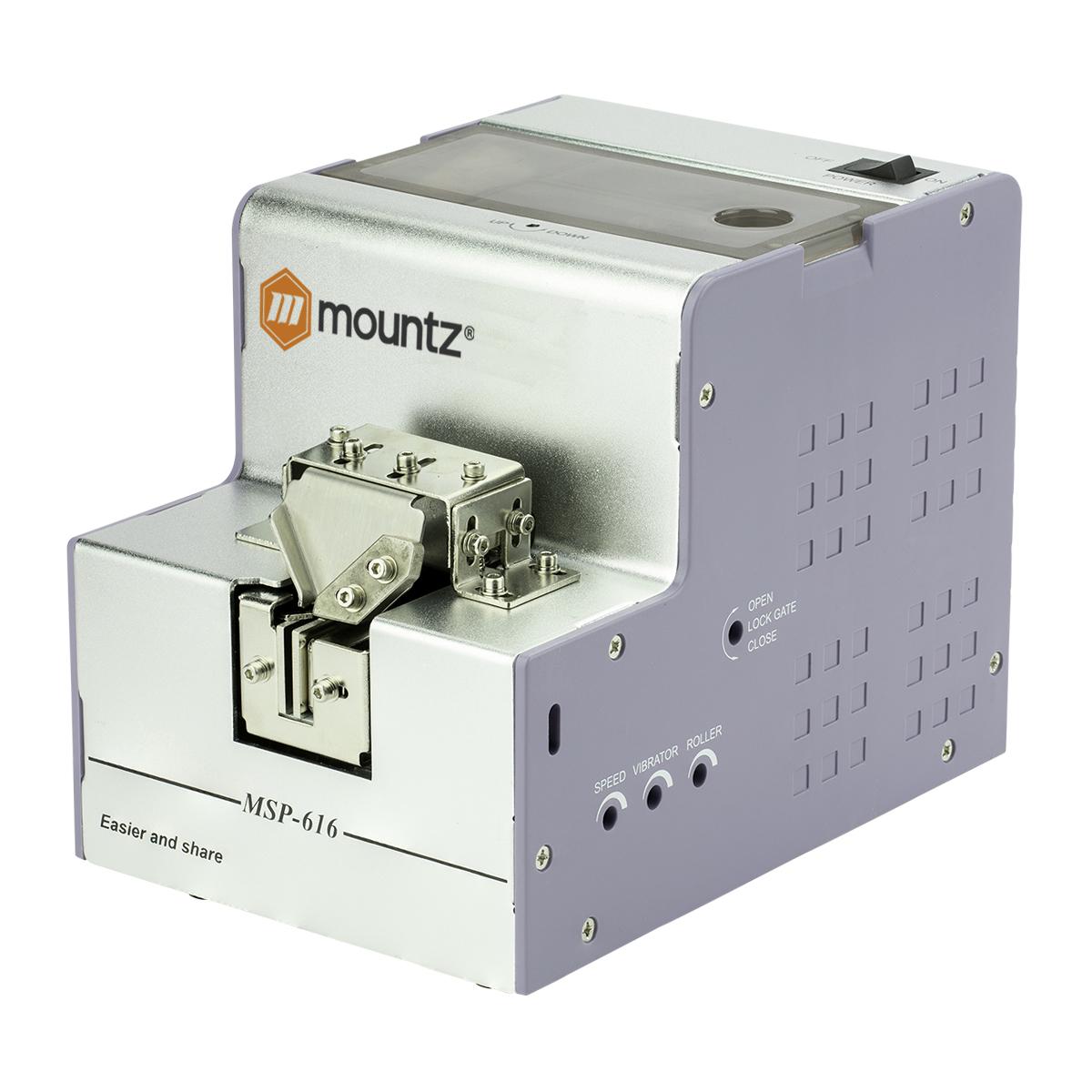

MSP-616 | 144778 | 11 | M1.2 – M5.0 | 9 | 15 | 11 | 6.75 | 8 | 4.8 | lbs. |
 |

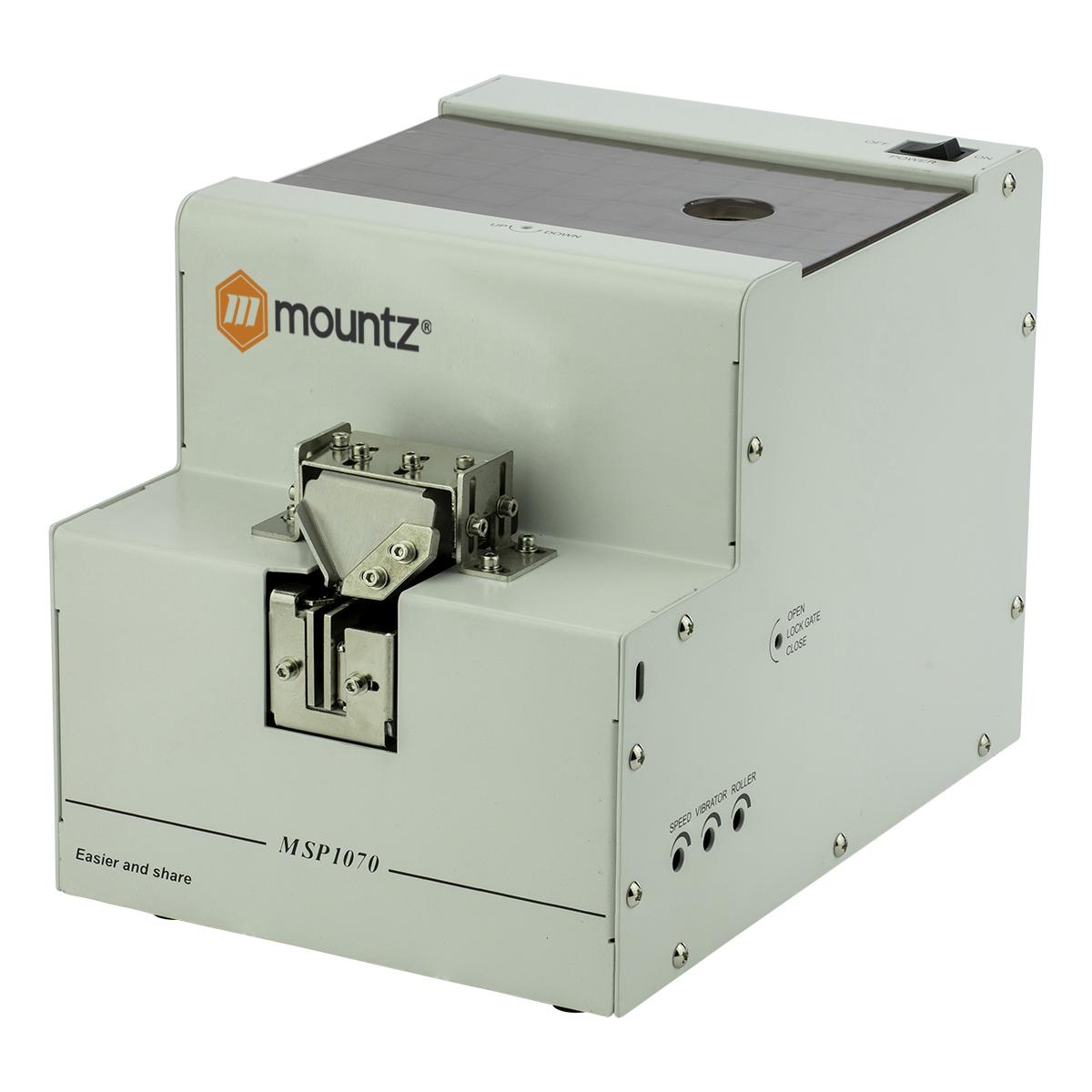

MSP-1070 | 144781 | 13 | M3.0 – M6.5 | 10 | 24 | 13.5 | 8 | 9.25 | 9.05 | lbs. |
CHOOSE THE MODEL BELOW
table {
width: auto;
border-collapse: collapse;
margin-bottom: 1rem;
font-family: Arial, sans-serif;
font-size: 14px;
}
table td, table th {
border: 3px solid #222;
padding: 10px 14px;
vertical-align: top;
}
.p_name {
font-weight: bold;
background: #e9e9e9;
white-space: nowrap;
}
.p_attribute {
background: #fff;
}
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
For cell or line based assembly, an operator uses a magnetized bit or to pick up a screw from the presenter screw guide. Conventional assembly methods cause assemblers to inefficiently fumble with screws that are stored in bins or shaker trays.
- Screws are poured into the hopper of the screw presenter and automatically lined up for dispensing.
- This simple mechanism allows trouble-free operation, eliminating jammed or stuck screws.
- The inexpensive screw presenter is an alternative tool instead of the cumbersome and very expensive screwfeeder systems.
- Fully adjustable models, as the screw presenters can be adjusted to match different screw sizes. No need change or purchase additional rails.
- Smoothly supplies screws. Adjustable vibration and speed settings.
- The compact system can fit into and work environment for easy accessibility and provides virtually maintenance-free operation.
As an authorised Mountz distributor in Singapore, Phil Industries supplies the full Mountz torque tool range with product advice and after-sales support.
