Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric Singapore
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | AF0060 |
| Minimum Order Quantity: | 150 Meters / Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/knitting bags |
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1,500,000 meters per month |
- Description
Description
This stripe ESD fabric is available in Singapore from Phil Industries. Lint Free 5mm Stripe Class 1000 Cleanroom ESD Fabric provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a leading supplier of ESD fabric in Singapore, Phil Industries offers fast delivery and competitive pricing on all stripe ESD fabric products.
Detailed Product Description
High Quality 5mm Stripe Pink Blue Yellow Antistatic Polyest Anti-static Clothing Fabric Cleanroom ESD Fabric
5mm Stripe Pink Blue Yellow Antistatic Polyest Fabric Description:

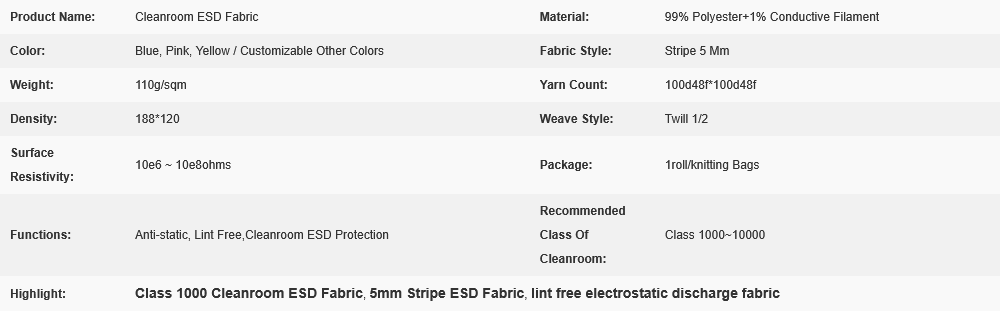

| Spec | Value |
|---|---|
| Anti-static Clothing Fabric Material | 99% Polyester 1% Carbon Fiber |
| Available Colors | White, Blue, Pink, Yellow, Green and etc / Customizable other colors |
| Use | ESD protection in clean rooms, work wear |
| Carbon Configuration | Stripe 5mm |
| Weight (gr/sqm) | 110-115 gr/sqm |
| Surface Resistivity (ohm/unit) | 10e8 ~ 10e9 |
| Friction charges (V) | <300 |
|
Number of yarns (denier) Warp Weft |
100 100 |
| Weave style | Twill 1/2 |
| Air permeability (cc/cm²/sec) | 30 |
| Recommended Class Of Cleanroom | Class 1000~10000 |
ESD Clothing Fabric Use:
Industry, Accessories, Coat and Jacket.
Cleanroom ESD Fabric Features:
- It is also called “conductive silk”, and it adopts the special polyester filament and high quality conductive yarns
- This fabric can be used for sewing kinds of functional garments, such as coverall, suit, jacket, caps, boots and etc.
- It offers good resistance to static, chemicals and abrasion.
- It is designed for Class 1000 cleanrooms and higher.
- It has wide applications in electronics, medicals, biology, optics, spaceflight industries etc
- It meets ESD standards, system resistance 106-109ohmsm
- It is one of the most economic fabrics for static control and dust free solutions.
Other Products we Supply:
* Cleanroom Apparels(Disposable, Launderable)
* Cleanroom Documentation(Paper, Pen, Notebook),
* Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
* Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
* ESD Package Materials(Bags, Tapes etc),
* ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
* Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
* Cleanroom &ESD Chairs/Stools,
* ESD Wrist/Heel Straps/Grounding Cords.
* Static Control Ionizing Blower/Gun/Nozzle,
* Illuminated Magnifier,
* Cleanroom Curtain and etc
FAQ:
● Q1: Are you a manufacturer?
①.Ans:Yes, we have been in manufacturing and providing excellent Cleanroom and ESD solutions for customers more than 10years.
②.Our own production plants and a wide network of suppliers who are strictly selected, are totally qualified for ISO Quality Management System.
● Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand. If customized one, about a week around.
● Q3: How about batch order production?
Ans: Normally 3-7days or so
● Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to ISO standard and ruled by our QC staff.
● Q5: How do you ship the goods?
Ans: By sea, by air, by truck or by courier (UPS, DHL, Fedex, TNT etc.)
● Q6: What advantage do you have?
Ans:
①.We have professional engineers, customers can expect the best possible advice and support.
②.Related responsible team to answer all your questions and follow-up process for you and do update in time
③.Strict and standard process control according to Quality Management System.
④.Documents support on products, we have strong technical data sheet to support our products,
which could make you easier to know our products.
