Washable Silicone PCB Dust Removal Sticky Roller
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/CTI |
| Model Number: | SR0220 |
- Description
- Reviews (0)
Description
This silicone cleanroom sticky roller is available in Singapore from Phil Industries. Industry Washable Cleaning PCB Remove Dust Silicone Sti provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom sticky rollers in Singapore, Phil Industries offers island-wide delivery on all silicone cleanroom sticky roller products.
Detailed Product Description

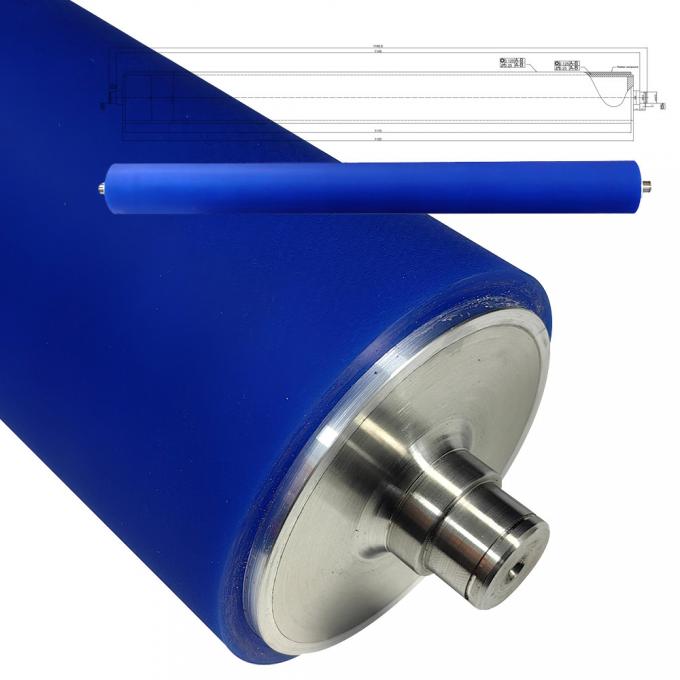

Replaceable Reusable Industry Washable Cleaning PCB Remove Dust Silicone Sticky Roller for Cleaning Machine
Constructions:PDMS(Polydimethylsiloxane)
Roller:Silicon
Pipe:Aluminium and Bearings
Standard Width:All sizes are customized on drawings
Roller Color:blue
Handle:Aluminum alloy
Frame:Aluminum alloy
Tackiness:None/Low/Middle/High
Protective film:PET
Applications:Applicable to breadboard, PCB, LCD, SMT, clean room, stainless steel sheet, film for dusting and etc.
General Physical Properties
| Roller Diameter/mm: | 112.4 |
| Hardness(shore A): | 25-30degree |
| Tear Strength(KM/M): | 19.08 |
| Tensile Strength (MPa): | 5.3 |
| Elongation at Break(%): | 611 |
| Impact elasticity(%): | 43 |
| Thickness of Protective film/µm: | 40±5 |
Performance Testing
| Rotation: | Flexible, no abnormal sound |
| Crumbs Test: | No drop litter when roll over 60,000 times |
| Hardness Testing: | 25-30 |
| Packing: | 1pcs/opp shielding bag |
Features
1.Its surface is smooth like mirror, can pick up particulates’ size below 2um.
2.It is effectual in adhering to hair, scurf, dust or other impurities.
3.It is easy to transfer impurities to sticky paper, so that prolong the self-adhesiveness of silicon.
4.Reusable and washable
Instructions for using silicone roller
1. Correct usage: when using silicone roller, please roll backward. (especially clean uneven products, such as PCB board) In this way, the service life of silicone adhesive can be prolonged, and the support can not be easily deformed and the screws can be prevented from loosening.
2. Cleaning silicone sticky roller: please clean the silicone sticky roller with clean water or soapy water, wipe it dry or air
dry it naturally.
3. Do not contact benzene and ester solvents (such as Tianna water, net washing water, phenanthrene water, ethyl acetate, etc.) during use. Once in contact, wipe it quickly with anhydrous alcohol and dry it with an air gun.
4. After every 5000 times of use, if the viscosity drops significantly, clean it with clean water, wrap it with clean packaging film, and place it for 48 hours, the viscosity also rises.
5. The service life of our silicone sticky roller is more than 10000 times
Precautions for silicone roller
1. It is strictly prohibited to use benzene and ester solvents (such as Tianna water, net washing water, phenanthrene water, ethyl acetate, etc.) to clean the silicone adhesive. Such solvents will cause the silicone adhesive to expand, age, deform, and reduce the viscosity quickly.
2. Please do not use silicone rubber wheels to clean the ground, wall and rough board surface: it is easy
to scratch the silicone sticky roller.
3. Please do not scratch the silicone with a sharp blade.
Maintenance and storage of silicone sticky roller
After use:
please use the silicone sticky roller to roll back and forth on the sticky paper book several times to keep the
silicone sticky roller clean.
Storage:
please keep away from benzene solvents, inks and curing agents and put them in clean packaging.
When not in use:
please avoid high temperature environment and direct sunlight.
