HS-Series

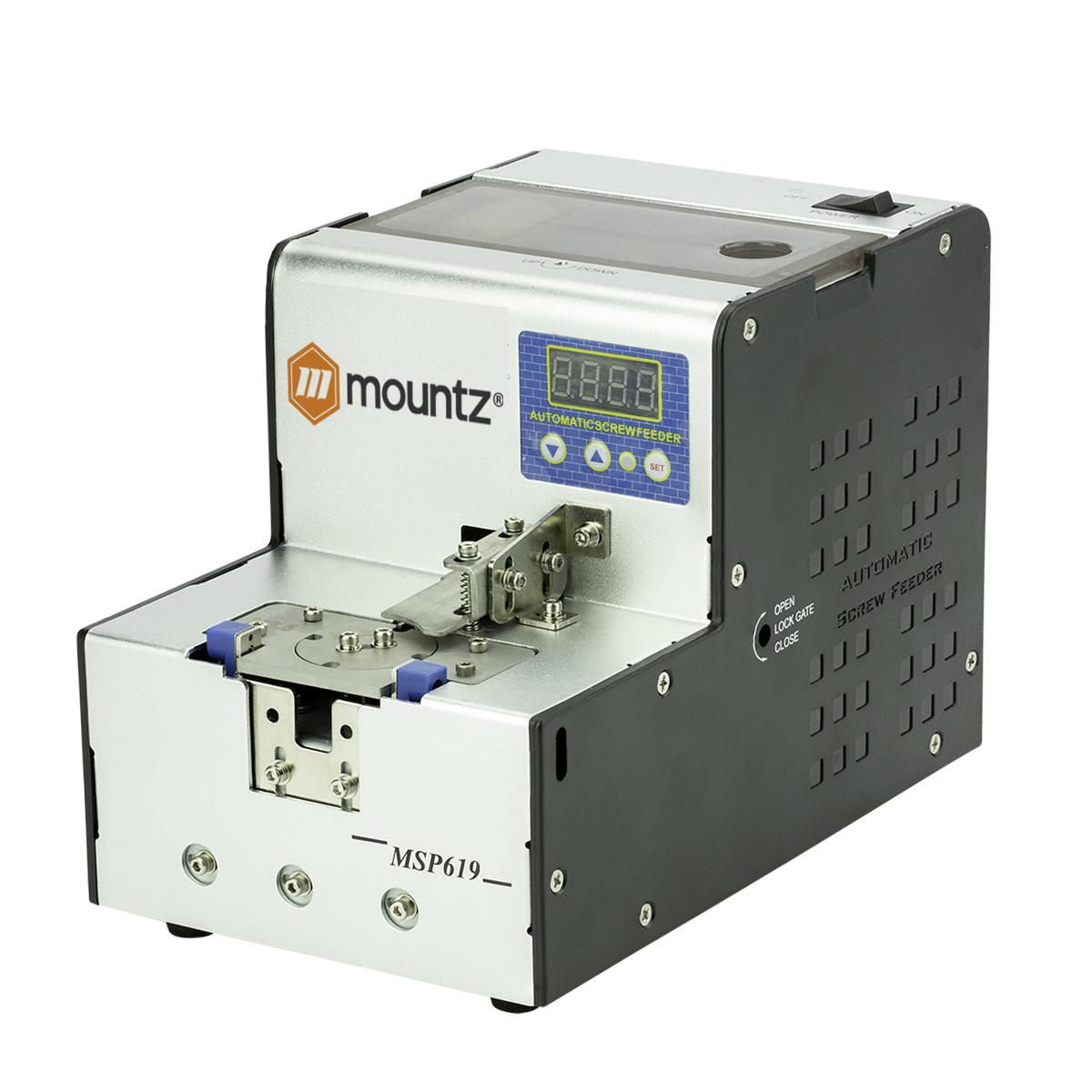

The SureFeed is a high precision yet inexpensive table top screw-feeder designed to enhance productivity. Instead of an operator picking-up screws for the assembly process, screws are placed into the hopper of Surefeed and dispensed for pick-up by assembly tool. The compact system can fit into any work environment for easy accessibility and provides virtually maintenance-free operation.
- Description
- Reviews (0)
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Screw Head Diameter “D” | Screw Size Diameter “d” | Screw Head Height “T” | Screw Length “L” | Tool Length (IN) | Tool Width (IN) | Tool Height (IN) | Tool Weight | Tool Weight Unit – American | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSP619-10 | 144783 | 1.2 – 12 | M1.0 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 |
lbs. |
|
MSP619-12 | 144784 | 1.2 – 12 | M1.2 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-16 | 144785 | 1.2 – 12 | M1.6 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-14 | 144786 | 1.2 – 12 | M1.4 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-18 | 144787 | 1.2 – 12 | M1.8 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-20 | 144788 | 1.2 – 12 | M2.0 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-23 | 144789 | 1.2 – 12 | M2.3 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-25 | 144790 | 1.2 – 12 | M2.5 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-26 | 144791 | 1.2 – 12 | M2.6 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-27 | 144792 | 1.2 – 12 | M2.7 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-35 | 144793 | 1.2 – 12 | M3.5 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-40 | 144794 | 1.2 – 12 | M4.0 | 0.2 – 6 | 1.0 – 14 | 7.125 | 5 | 6 | 5.5 | lbs. |
|
MSP619-30 | 144795 | 1.2 – 12 | M3.0 | 0.2 – 6 | 1.0 – 14 | 11 | 6.75 | 8 | 5.5 | lbs. |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
Screws are poured into the hopper of the Surefeedand automatically lined up for dispensing.
- This simple mechanism allows trouble-free operation, eliminating jammed or stuck screws.
- The unique up and down screw hopper feeds screws efficiently to the screw-feeding rail and the photosensors prevent screws from jamming or sticking.
- Pick up rate of up to two screws per second.
- The versatile unit can easily change to another screw by simply changing the screw-feeding rail. It can feed sems, w-sems, washer-head, and flat head screws.
