Description
This colored ESD rubber mat is available in Singapore from Phil Industries. Green Blue Black Grey ESD Rubber Mat Anti Static For Wo provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD rubber mats in Singapore, Phil Industries offers island-wide delivery on all colored ESD rubber mat products.
Detailed Product Description
Green Blue Black Grey ESD Rubber Mat Anti Static For Workplace Table / Floor
Descriptions:

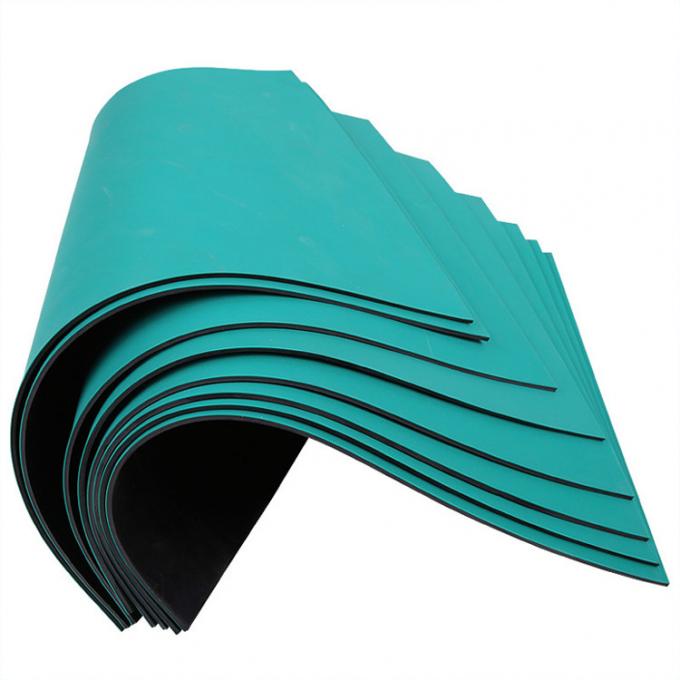

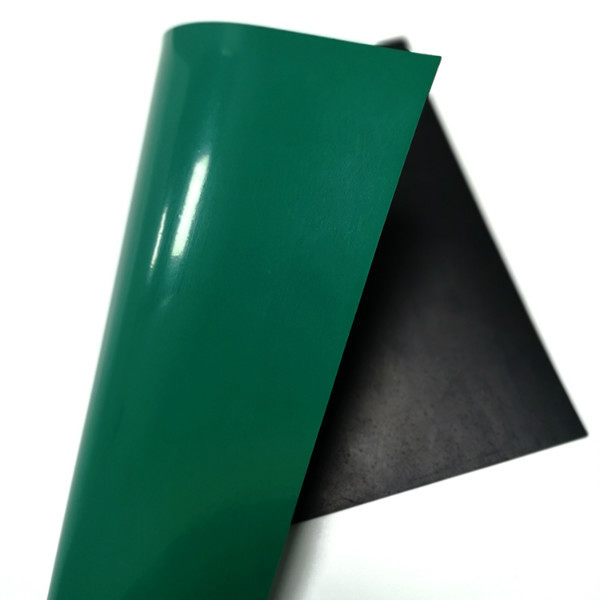

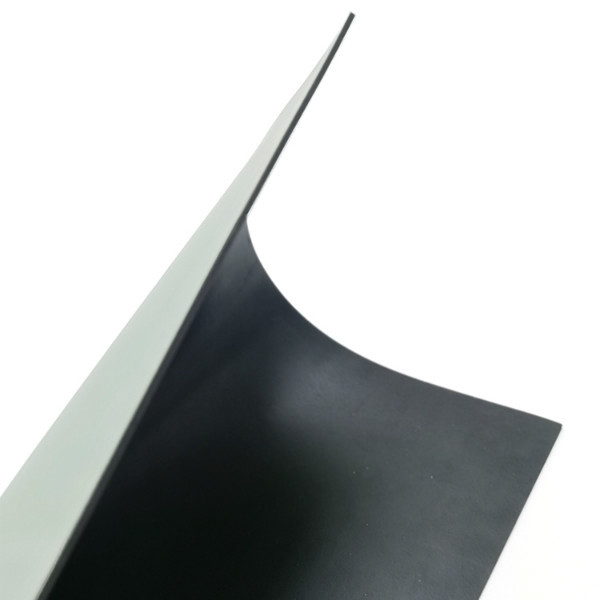

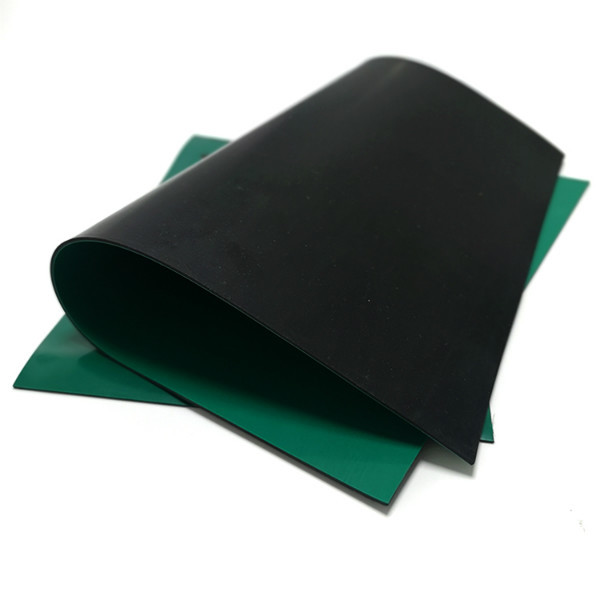

ESD Rubber Mats are made of two layers with the top one as a static dissipative rubber layer, laminated to a black conductive bottom layer.
Surface resistivity of the top layer is 10⁸ – 10⁹ ohms and bottom layer is 10⁵ – 10⁶ ohms.
It offers excellent resistance to oil, grease and solvent.
Its temperature resistance to 160 degree, could be resistant to hot solder, while ESD vinyl mats are suitable for general electronics assembly whose temp resistance reach to 70degree around.

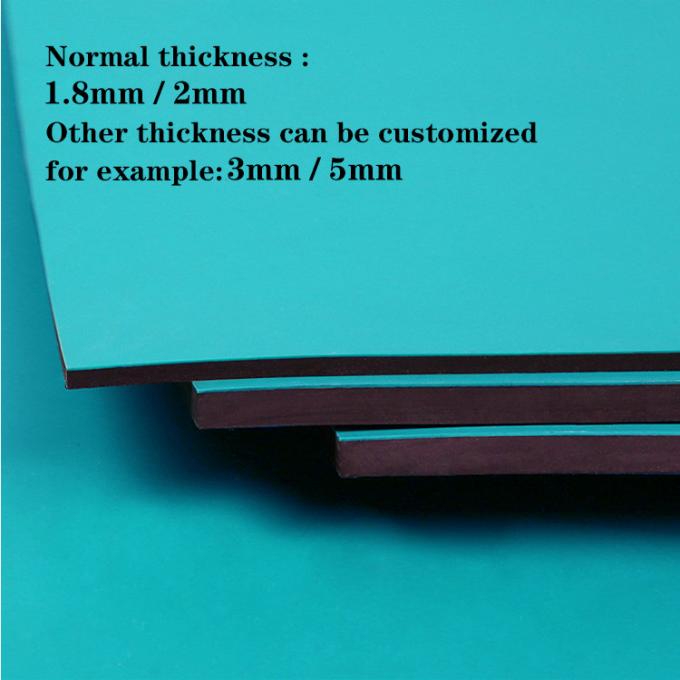

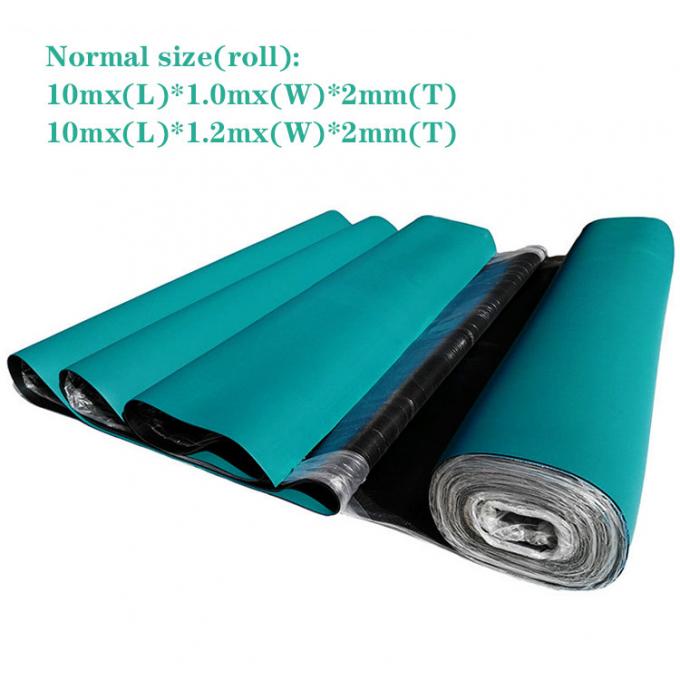

Normal size(roll): 1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T)
Features
1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor
2, It is available in rolls or ESD work surface mat kits which include a ground snap and common point ground. We can cut mats to special sizes, so please contact us if you have special size requirements.

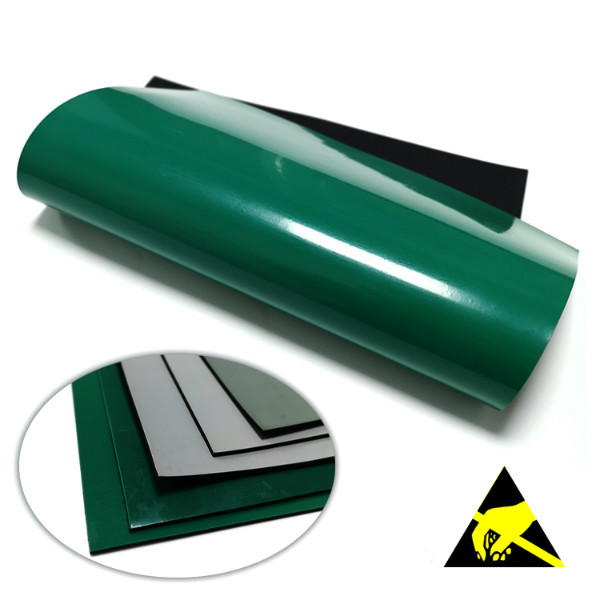

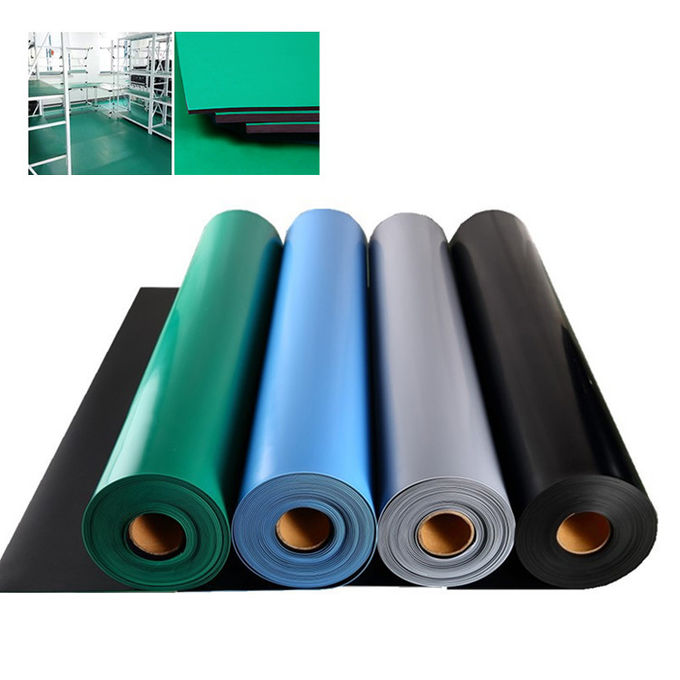

3, Many colors for options, custom colors accepted. If you have a quantity no less than 300 square meters, just let us know the Pantone color, we will customize for you.
4, Some of the Characteristics are as follows:
| Dissipative Table Mat/Floor Mat | Specification | Color | ||
| Static Dissipation layer | Surface resistance | 10⁶–10⁹ |
1.2mx*10mx*2mm(T) 1.0mx*10mx*2mm(T) |
Blue, Grey, Green, Black |
| Friction static potential V | ＜100 | |||
| Conductive layer (black bottom) | Surface resistance | ≤10⁵ | ||
| Friction static potential V | ＜60 | |||
| Static voltage attenuation period | 5000 – 500V | ＜1s | ||
| Flame retardation | GB4609-84, FV-0 (less than 10S) | |||
| Volume resistance | 10⁵–10⁸ Ωcm | |||
| Physical performance index of Dissipative Table/Floor Mat | ||||
| No. | Description | Test reference | Results | |
| 1 | Tensile strength | GB 1040 | 3.6Mpa | |
| 2 | Fracture elongation | GB 1040 | 188% | |
| 3 | Tear elongation | GB/T 529 | 20.6KN/m | |
| 4 | Rebound elasticity (the specimen is laminated with 6 layers of sheets) | GB/T 1681 | 14% | |
| 5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage | |
| at -25℃ | ||||
| 6 | Permanent compression change rate, 70oC*22h, compression 25% | GB 10654 | 17.90% | |
| 7 |
Hot air ageing |
Tensile strength change rate |
GB/T 7141 |
8.00% |
| Fracture elongation change rate | -3.80% | |||
| Weight loss on heating | 1.08% | |||
| Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141. | |||
About Temp Resistance
| Item | Permanent /degree | Flash /degree |
| ESD Rubber Mat | 160 | 300 |
| ESD Vinyl Mat | 70 | 120 |
