GM3110 High-Precision Portable Surface Resistance Tester
| Brand Name: | ESDpro |
| Certification: | – |
| Model Number: | GM3110 |
- Description
- Reviews (0)
Description
This digital ESD tester is available in Singapore from Phil Industries. Gm3110 Surface Resistance Tester High Precision Portabl provides reliable ESD protection for electronics repair and manufacturing. As a supplier of ESD safe tools in Singapore, Phil Industries offers island-wide delivery on all digital ESD tester products.
Detailed Product Description

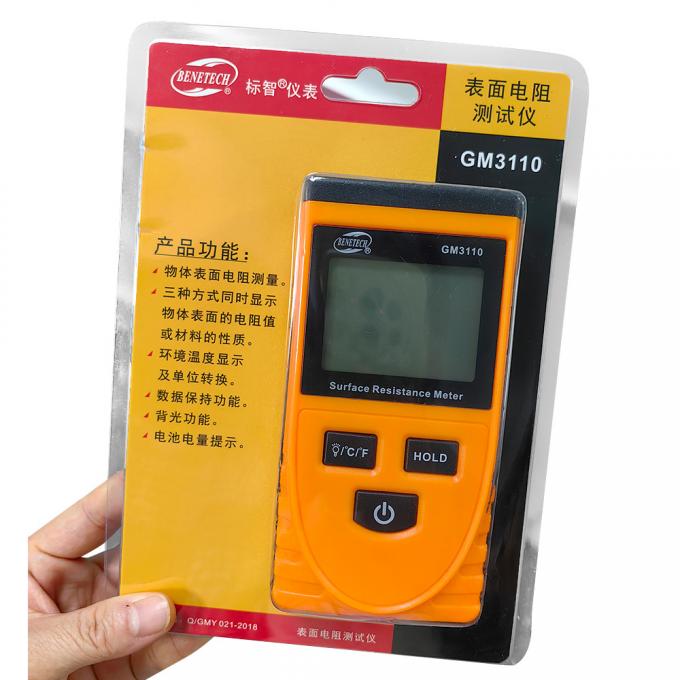

GM3110 Surface Resistance Tester High-Precision Portable Insulation Resistance Tester Electrostatic Detector
Description
GM3110 Surface Resistance Tester, also known as high-precision portable insulation resistance tester or electrostatic detector, is an instrument designed specifically for measuring material surface resistance and static electricity.
| Model | SL-030B |
| Resistance measurement range | 10e3-10e10 |
| Resistance measurement error | ± one order of magnitude |
| Resistance measurement response time | 1s |
| Temperature measurement range | 10e3-10e12 ohms |
| Instrument weight | 0 ° C~50c/32~122 ° F |
| Temperature measurement accuracy | ± 2 ℃/± 36 ° F |
| Power supply | 9V 6F22 battery |
| Size | 63.6 × 31X125.8mm |
| Weight | 122g |
Product Function Introduction
● Surface resistance test of objects
● Three ways to simultaneously display the surface resistance value or material properties of an object
● Environmental temperature measurement
● Temperature unit conversion
● Data retention function
● LCD backlight display
● pairs of ground resistance measurement
● Automatic shutdown function
Application area
● The GM3110 surface resistance tester is particularly suitable for various anti-static fields, such as electronics, semiconductors, pharmaceuticals, chemical industries, etc. It can be used to measure the surface resistance of materials such as table mats, floor coatings, paint surfaces, wristbands, work clothes, shoes (shoe covers), bags, and containers.
Usage method
● By pressing the two parallel electrodes of the instrument tightly against the surface of the object being measured, the resistance value of the object’s surface can be measured, thereby determining whether the object being measured is a conductor, anti-static material, or insulator.
● For measuring the ground resistance of an object, the grounding wire of the tester should be inserted into the grounding socket at the front end of the instrument, and the other end of the grounding wire should be grounded. Keep the right electrode of the instrument tightly attached to the surface of the object being measured, and the resistance value displayed on the LCD is the ground resistance value.
More picture :
