ESD Anti-Static PVC Vinyl Cleanroom Flooring Tile
ESD anti-static PVC vinyl flooring tile for cleanrooms and electronics manufacturing floors in Singapore. Conductive construction dissipates static safely to earth once properly grounded. Available in grey, white, black and blue; stocked by Phil Industries (ESDpro, Model EM0200, ISO/SGS certified).
- Description
- Reviews (0)
Description
ESD Anti-Static PVC Vinyl Cleanroom Flooring Tile is a conductive PVC vinyl floor tile designed to control electrostatic discharge (ESD) in cleanrooms, electronics manufacturing floors and other environments where static build-up can damage sensitive components. Phil Industries stocks this tile in Singapore under our ESDpro range (Model: EM0200, ISO/SGS certified).
The tile is made from PVC vinyl with a conductive layer that dissipates static charge to earth rather than letting it build up on the floor surface. It suits precision-instrument rooms, network/server rooms, and general ESD-controlled work areas alongside cleanrooms and electronics assembly floors.
📋 Specifications
| Material | PVC vinyl |
| Available colours | Grey, White, Black, Blue |
| Size | 590 x 590mm / 600 x 600mm / 610 x 610mm |
| Weight | 2-6kg/m² (size dependent) |

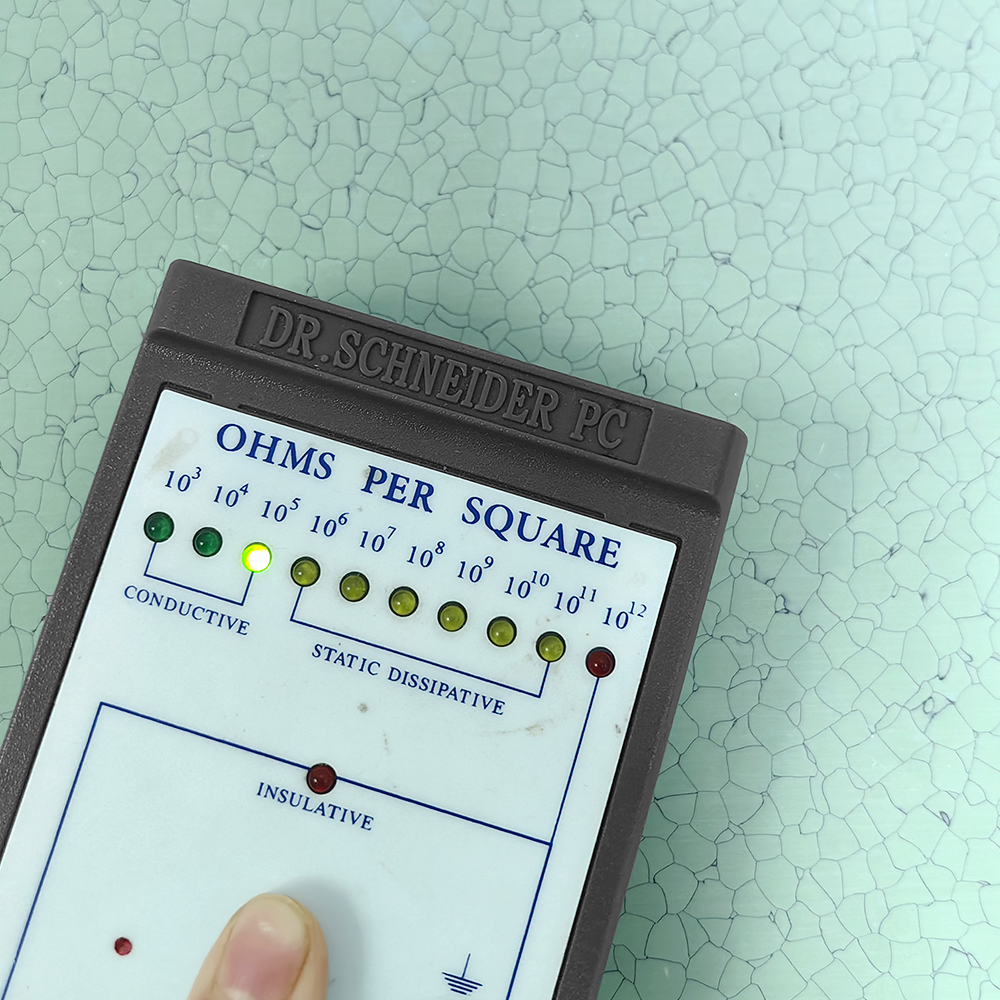

| Surface resistivity | 10⁶-10⁹ Ω |
| Static voltage decay period | ≤ 0.4 seconds |
| Friction electrification voltage | < 70V |
| Sound absorption | 2dB |
| Brand | ESDpro |
| Model | EM0200 |
| Certification | ISO / SGS |
✨ Features
- 💧 Waterproof and easy to clean
- 🔥 Flame-retardant
- 🛠️ Wear-resistant
- 📏 Dimensionally stable
- 🧪 Resistant to common workshop chemicals
- ⚡ Conductive layer — only dissipates static once properly earthed, see Installation below
🏭 Applications
- 🔌 Electronics and microelectronics manufacturing
- 📡 Telecommunications equipment rooms
- 🖥️ Network / server rooms
- 🧼 Cleanrooms
- ⚙️ Other precision-instrument or equipment rooms where static control matters
🧰 Installation
- 🧱 Sub-floors should be level, smooth and free of cracks before installation
- 💧 Residual sub-floor moisture should be under 2.5% (CM method) — worth checking carefully given Singapore’s humid climate, where slabs can retain moisture longer than expected
- 🌡️ Tiles, adhesive and the installation site should be at a temperature of at least 18°C for at least 24 hours before laying
- 🧴 Use a qualified conductive adhesive with a resistance below 10Ω

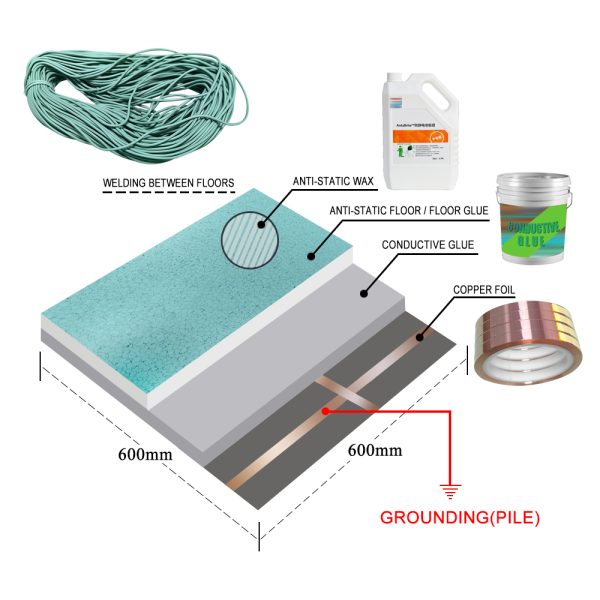

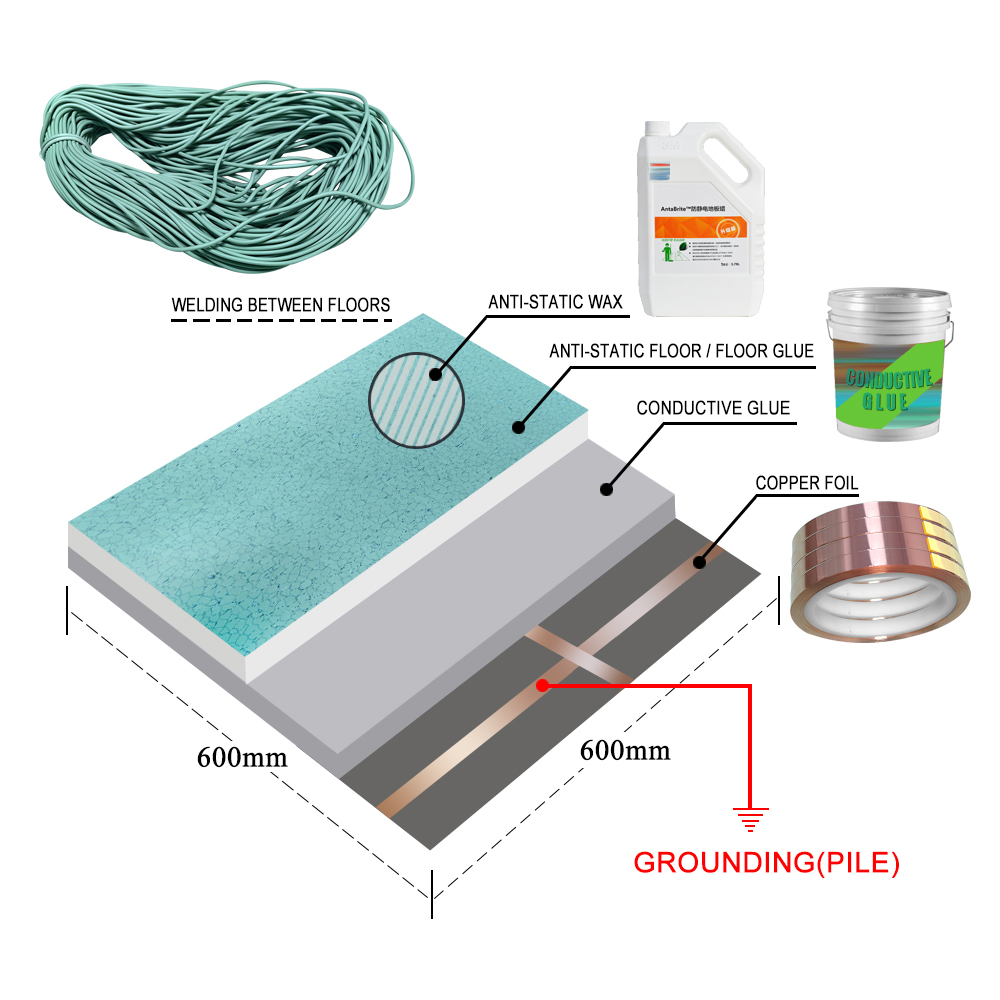

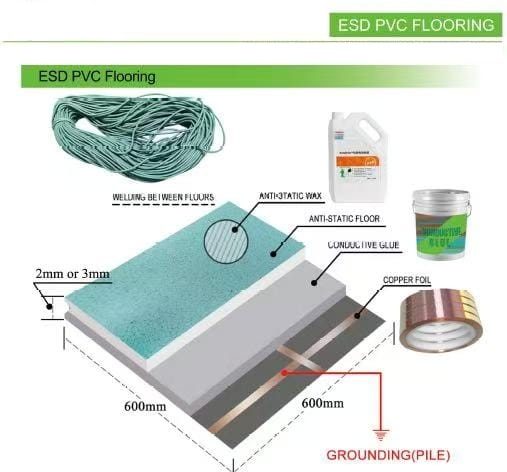

- 🔗 Earth the floor via a copper foil grounding strip connected to a proper grounding point (see reference diagram)
For installation guidance specific to your site, contact Phil Industries.
