ESD-Safe Drafting Chair for EPA Areas
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/CTI |
| Model Number: | AC2530 |
- Description
- Reviews (0)
Description
This antistatic ESD safe chair is available in Singapore from Phil Industries. Epa Sensitive Area ESD Drafting Chair Chinese Knot Patt provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD safe chairs in Singapore, Phil Industries offers island-wide delivery on all antistatic ESD safe chair products.
Detailed Product Description
EPA Sensitive Area ESD Drafting Chair Chinese Knot Pattern Surface Pneumatic Rotatable
Polyurethane ESD Stool: AC2530
Description: It is made of polyurethane seat, with esd grounding resistivity up to 10⁹ ohms.
Features:
1) Conductive metal chain acts as ground.
2) Adjustable height and optional chrome foot ring
3) Cleanroom Class 100-1000 certified.
4) ESD grounding resistivity range from 10⁷–10⁹ ohms
5) 5 star chrome conical foot, Radius 260 or 320mm
6) PA nylon glides, optional castors If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge
7) Resists stains, punctures and chemicals.
8) Height adjustable: 470-620mm
9) Warranty: 1Year
10) Pacakge: partially assembled
Technical Spec
| Spec | Value | Test Method |
|---|---|---|
| Material | Polyurethane | |
| Design | Round surface with Chinese-knot Pattern | |
| Seat Size | Dia.340mm | |
| Thickness | 45mm | |
| Standard Color | Black | |
| Back Tilt | Not available | |
| Seat Tilt | Not available | |
| Gas Lift | Yes | |
| Seat Height Adjustment | 470-620mm | |
| Base | 5-Star Chromed Foot | |
| Footring (Optional) | 400mm diameter adjustable chrome footring | |
| Glides/Castors | ESD or Non-ESD for options |
Parts List:
- Seat w/control Mechanism Q’ty 1pcs
- Chromed Five Star Base Q’ty 1pcs
- Pnuematic Cylinder Q’ty 1pcs
- Glides/Casters Q’ty 5pcs
- Footring (optional) Q’ty 1pcs
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring (if enclosed) onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
Applications
Widely used in EPA / Clean room environment

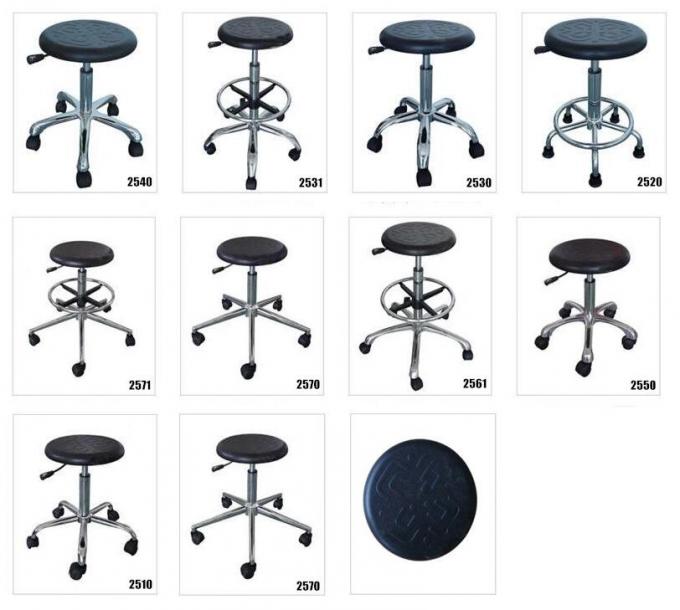

More Styles
