Dust-Free ESD Woven Twill Fabric, 5mm Stripe, 100D x 100D
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | AF0060 |
- Description
- Additional information
- Reviews (0)
Description
This stripe ESD fabric is available in Singapore from Phil Industries. Dust Free ESD Fabric 5mm Stripe 100d x 100d Woven Twill For Workwear ESD Cap provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD fabric in Singapore, Phil Industries offers island-wide delivery on all stripe ESD fabric products.
Detailed Product Description
Dust Free ESD Fabric 5mm Stripe 100D X 100D Woven Twill For Workwear ESD Cap
Dust Free ESD Fabric 5mm Stripe: AF0060
Description
Anti-static ESD Woven Polyester Fabric, 5mm Stripe
Applications: For making antistaitc clothing, workwear, and other garment accessories, such as ESD bag, ESD cap, ESD Facemask, ESD Shoe cover and so on to protect sensitive components from harmful static charges.
Features:
1) It is also called”conductive silk”, it adopts the special polyester filament and high quality conductive yarns, to meet ESD standards, and system resistance range 10⁸–10¹¹ ohms

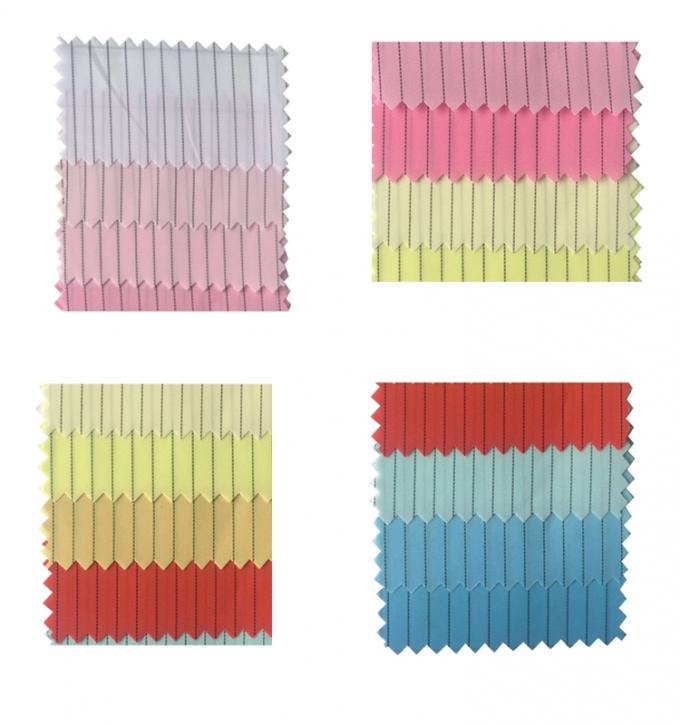

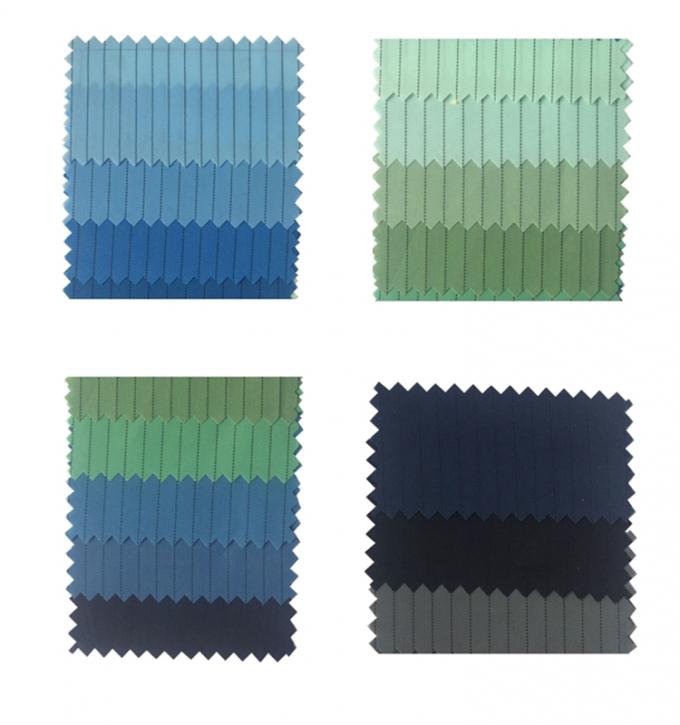

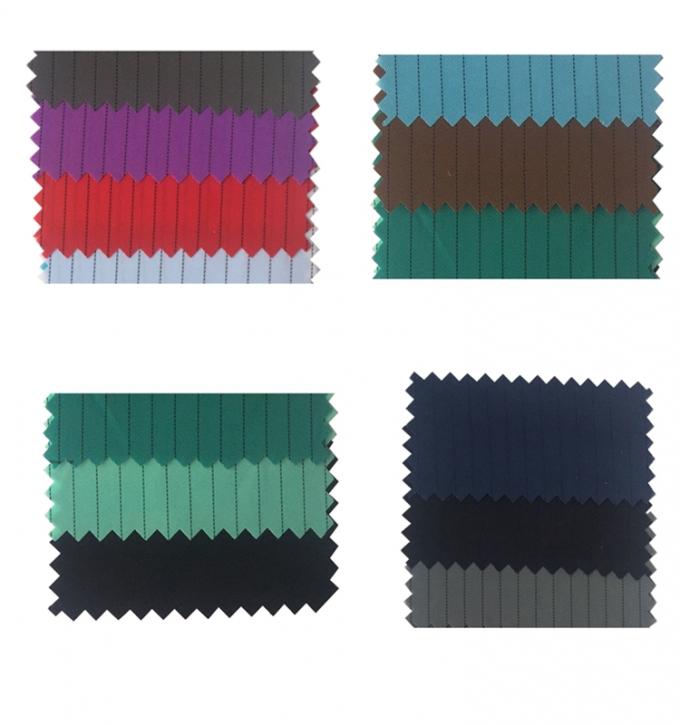

2) Excellent conductivity and available in all colors, included sky blue,dark blue, pink, white, yellow, green and grey. It is recommended for pharmaceutical industry, medical device, food processing and general assembly cleanrooms.
3) More details as below
| Spec | Value | Test Method |
|---|---|---|
| Material | 99% Polyester 1% Carbon Fiber | |
| Available Colors | All | |
| Carbon Configuration | Stripe 5mm | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 115~120 | |
| Surface Resistivity (ohm/unit) | 10⁸–10⁹ | |
| Friction charges (V) | <300 | |
| Number of yarns (denier) Warp Weft |
100 100 |
|
| Weave style | Twill 1/2 | |
| Air permeability (cc/cm²/sec) | 30 | |
| Recommended Class Of Cleanroom | Class 1000~10000 |
Our ESD Woven Fabric 100D Series

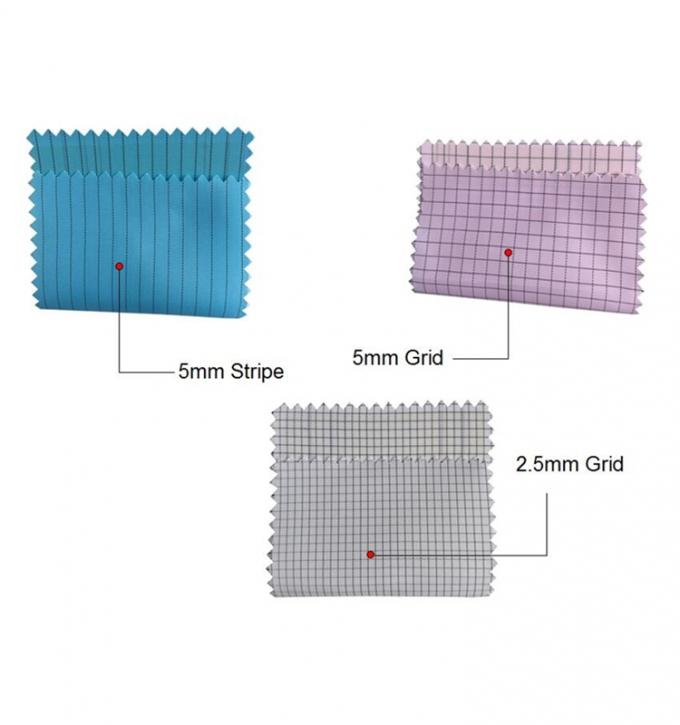

| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0060 | Strip 5mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 1.2uc/m | <300V |
| AF0064 | Strip 10mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 1.2uc/m | <300V |
| AF0080 | Grid 5mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 0.8uc/m | <200V |
| AF0083 | Grid 2.5mm | 100D48F*100D48F | 115-120g/m² | 165*89ends/inch | 0.8uc/m | <150V |
Other ESD Fabric & Products we Supply
- Other ESD Fabric: Antistatic TC and CVC fabric, Antistatic knitted diamond fabric, Antistatic knitted fabric, Antistatic polyester stripe fabric,
- Cleanroom Apparels(Disposable)
- Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
- Cleanroom &ESD Chairs/Stools,
- Cleanroom Documentation(Paper, Pen, Notebook),
- Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
- Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
- ESD Package Materials(Bags, Tapes etc),
- ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
- ESD Wrist/Heel Straps/Grounding Cords.
- Static Control Ionizing Blower/Gun/Nozzle,
- Illuminated Magnifier,
- Cleanroom Curtain and etc
More Photos
COMPARISONS
Additional information
| ESD Classification | |
|---|---|
| Surface Resistance | 10⁸–10⁹ Ω |
