Antistatic 2.5mm Grid ESD Polyester 1/2 Twill Fabric
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/COO |
| Model Number: | AF0083 |
- Description
- Additional information
- Reviews (0)
Description
This grid ESD fabric is available in Singapore from Phil Industries. Antistatic 2 5mm Grid ESD Fabric Polyester 1 2 Twill White Blue Yellow Pink Stock provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD fabric in Singapore, Phil Industries offers island-wide delivery on all grid ESD fabric products.
Detailed Product Description

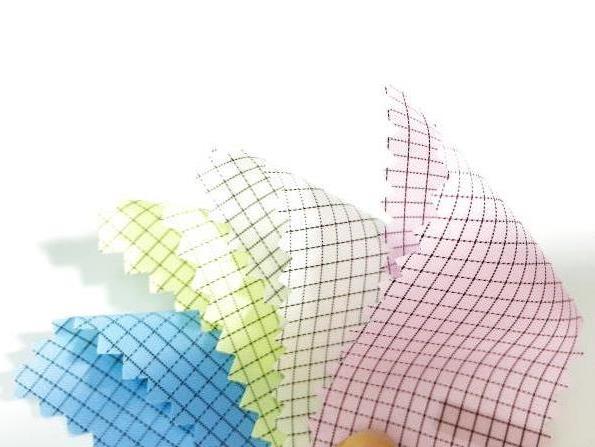

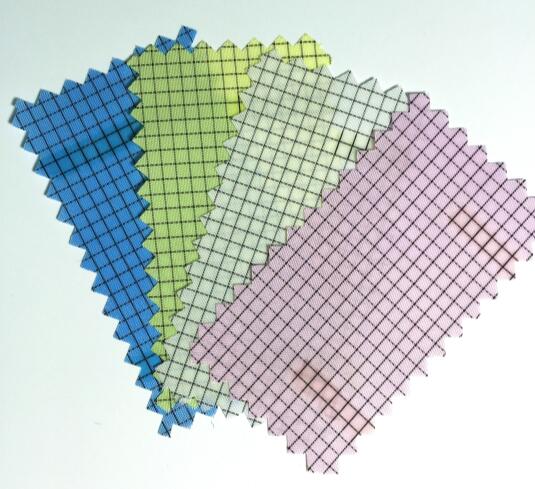

Antistatic 2.5mm Grid ESD Fabric Polyester 1/2 Twill White Blue Yellow Pink Stock
ESD Fabric 2.5mm Grid(Checked): AF0083
Description: Anti-static ESD Woven Polyester Fabric, 2.5mm Grid
Applications: ESD protection in clean rooms, work wear
Features
1) It is also called”conductive silk”, and it adopts the special polyester filament and high quality conductive yarns
2) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in electronics, medicals, biology, optics, spaceflight industries etc
3) Meets ESD standards, system resistance 10⁶–10⁷ ohms
Specifications
| Spec | Value | Test Method |
|---|---|---|
| Material | 96% Polyester 4% Carbon Fiber | |
| Available Colors | White Pink Yellow Blue | |
| Carbon Configuration | Grid 2.5mm | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 115~120 | |
| Surface Resistivity (ohm/unit) | 10⁶–10⁷ | |
| Friction charges (V) | <150 | |
|
Number of yarns (denier) Warp Weft |
100 100 |
|
| Weave style | Twill 1/2 | |
| Air permeability (cc/cm²/sec) | 30 | |
| Recommended Class Of Cleanroom | Class 100~1000 |
Our ESD Woven Fabric 100D Series
| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0060 | Strip 5mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 1.2uc/m | <300V |
| AF0064 | Strip 10mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 1.2uc/m | <300V |
| AF0080 | Grid 5mm | 100D48F*100D48F | 110-115g/m² | 165*82ends/inch | 0.8uc/m | <200V |
| AF0083 | Grid 2.5mm | 100D48F*100D48F | 115-120g/m² | 165*89ends/inch | 0.8uc/m | <150V |
More Photos
Related pages in Singapore
- Browse all ESD Fabric.
- Learn about ESDpro, our own ESD and cleanroom brand.
- Read our guides on ESD standards IEC 61340 and ANSI/ESD S20.20 and setting up an ESD grounded workstation.
Phil Industries, the Singapore company behind the ESDpro brand, supplies this product with selection advice and after-sales support. Call +65 6555 1745, WhatsApp +65 9853 9030 or email sales@phil-industries.com.sg.
Additional information
| ESD Classification | |
|---|---|
| Surface Resistance | 10⁶–10⁷ Ω |
