Model 6001 Dry Dust-Free Cleanroom Wiper, 135GSM
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | 6001 |
- Description
- Reviews (0)
Description
This lint-free cleanroom wiper is available in Singapore from Phil Industries. Dry Dust Free Cleanroom Wiper Model 6001 Single Knitting Basic Weight 135gsm provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all lint-free cleanroom wiper products.
Detailed Product Description

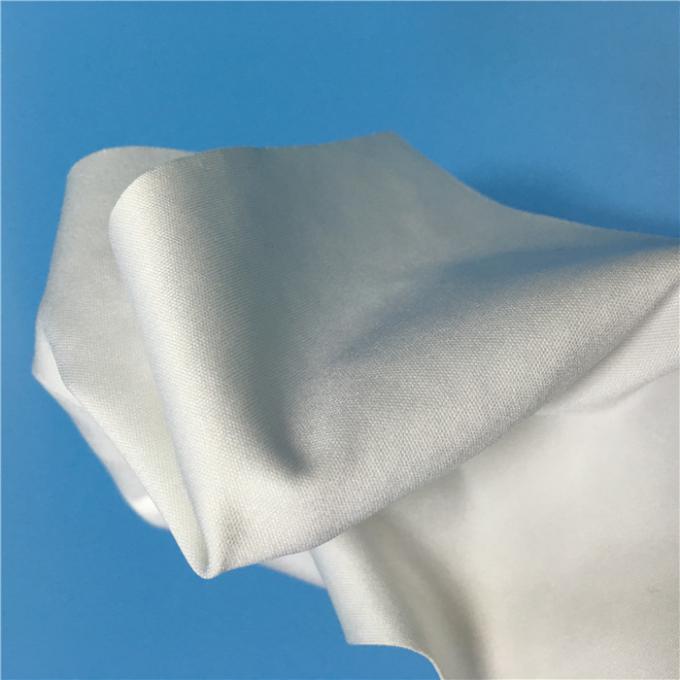

Dry Dust Free Cleanroom Wiper Model 6001 Single Knitting Basic Weight 135GSM
Dry Clean room Polyester Wiper Size 4″x4″/6″x6″/9″x9″/12″x12″ Other Sizes could be Customized, Model 6001, Basic weight 135gsm, Single Knitting
Description:
They are comprised of 100% continuous filament polyester
Laser cut edge maximize reduces fiber contamination
Highly absorbent with extremely low levels of particulate and extractable counts.
Laundered (if requested, be washed by 18MΩ ultra pure water) and packaged in a Cleanroom
Tested and manufactured in ISO compliant facilities
Features:
• Critically low particles, fibers, ions and extractables
• High abrasion resistance
• Chemically compatible with IPA, Acetone and other solvents
• High absorbency
• Weight and caliper provide an excellent hand for cleaning rough surfaces
• Complies with RoHS and REACH requirements
Technical Data:
| Spec | Value | Test Method |
|---|---|---|
| Size | 4” x 4”, 6” x 6”, 9” x 9”, 12” x 12” | |
| Material | 100% polyester | |
| Basis weight | 135 ± 5 g/m² | Electronic Balance Test |
| Liquid absorption ability | 320g/m² | Referred to IES-RP-CC004.3 analysis method |
| Particle Counts LPC: ≥0.5 µm | 595 count /m² | Tested by liquid particle analyzer |
|
IPA Extractant
|
1.5 µg/cm²
|
Measured by the weight of extract before and after volatilization |
|
DI Water Extractant
|
1.6 µg/cm² | Measured by the weight of extract before and after volatilization |
RoHS Compliant:
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | 0.0030 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.0012 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0020 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Fluoride(F) | 0.0010 | 0.0010 µg/cm² | test by ion chromatography(IC) |
100% Polyester Knit Wiper Main Catalogues:
|
NO.
|
Model
|
Description
|
Weaving process
|
Composition
|
Basic Weight
|
Sealing Method
|
Standard Package
|
|
1
|
1009DLE/120
|
Cleanroom Wiper
|
Double Knitting
|
100% Polyester
|
120g/㎡
|
Laser Cut
|
150PCS/BAG, 15BAG/CTN
|
|
2
|
1009DLE/140
|
Cleanroom Wiper
|
Double Knitting
|
100% Polyester
|
140g/㎡
|
Laser Cut
|
150PCS/BAG, 15BAG/CTN
|
|
3
|
1009SLE/120
|
Cleanroom Wiper
|
Single Knitting
|
100% Polyester
|
120g/㎡
|
Laser Cut
|
150PCS/BAG, 15BAG/CTN
|
|
4
|
6001
|
Cleanroom Wiper
|
Single Knitting
|
100% Polyester
|
135g/㎡
|
Laser Cut
|
150PCS/BAG, 15BAG/CTN
|
|
5
|
1009SLE/160
|
Cleanroom Wiper
|
Single Knitting
|
100% Polyester
|
160g/㎡
|
Laser Cut
|
150PCS/BAG, 15BAG/CTN
|
Applications:
It is designed for critical processing applications where the high level of contamination control is required.
It is widely used for cleaning medical device products; applying, removing, cleaning and disinfecting solutions;
Also used for flat panel, optics cleaning and chips multiprocessing(CMP).
