SL-030B Hammer-Type Digital Surface Resistance Tester
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | SL-030B |
- Description
- Reviews (0)
Description
This digital ESD tester is available in Singapore from Phil Industries. Digital Surface Resistance Meter Hammer Type Surface Resista provides reliable ESD protection for electronics repair and manufacturing. As a supplier of ESD safe tools in Singapore, Phil Industries offers island-wide delivery on all digital ESD tester products.
Detailed Product Description

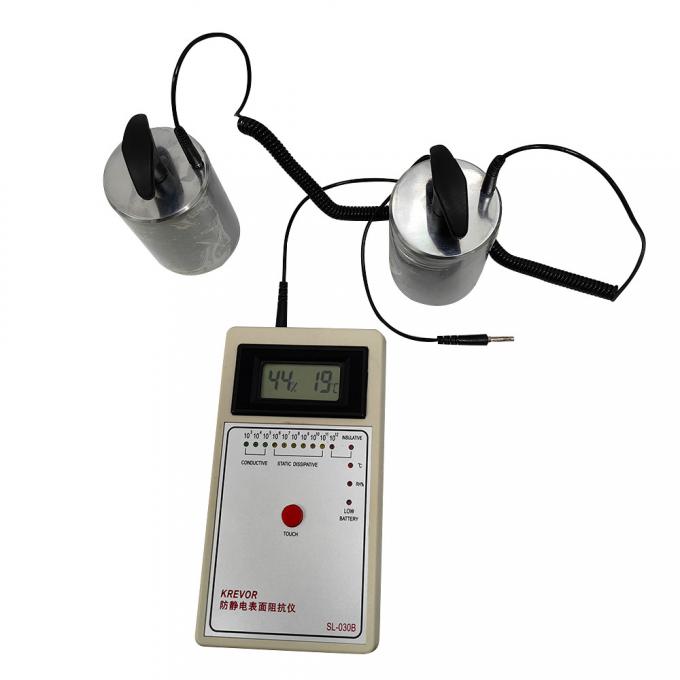

SL-030B Digital Surface Resistance Meter Hammer Type Surface Resistance Tester
Description
SL-030B tester is used to measure the resistivity or resistance of all conductive, anti-static and electrostatic discharge surfaces.
| Model | SL-030B |
| Working voltage | DC9V |
| Battery life | 40 hours (continuous operation) |
| Size | 170mm (H) * 100mm (L) * 40m (W) |
| Measuring range | 10e3-10e12 ohms |
| Instrument weight | 350g |
| Weight of heavy hammer | 2.5 ± 0.2kg/piece |
| Measuring temperature | 0 ℃ – 100 ℃ |
| Measured humidity | 0-100% |
Features
● Easy to use- LCD digital displays of temperature, humidity and surface resistance;
● Multi-Range – designed to test on all conductive, anti-static and static dissipative surfaces at 10V or 100V;
● Built-in electrode parallel leads can be used to test any conductive or dissipative surface; Test Range: 10e3 – 10e12ohms; Accuracy Range +/-10%;
● When the battery voltage is lower than 5 volts, the LIBATTERY indicator light flashes.
Kit Includes
1. SL-030B/1 pc
2, Hammer/2 pc
3. Connecting wires/2 pc
4, 9V battery/1 pc
Usage Method
● Insert the connecting plug into the two sockets of the meter and connect the banana plug with the two 5-pound probes;
● Place two probes on the surface of the object to be measured according to the measurement procedures;
● Press “TOUCH” until the measured resistance (in ohms), and the relative humidity and temperature are displayed on the LCD.
Note: Before measurement, please ensure that the surface to be measured is clean and free of pollution
More picture :
