Disposable PE Cleanroom Sticky Mat – Blue/White, 30 Layer
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/CTI |
| Model Number: | SM0102 |
- Description
- Reviews (0)
Description
This disposable cleanroom sticky mat is available in Singapore from Phil Industries. Blue White Disposable PE Cleanroom Sticky Mat 30 Layers provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom sticky mats in Singapore, Phil Industries offers island-wide delivery on all disposable cleanroom sticky mat products.
Detailed Product Description

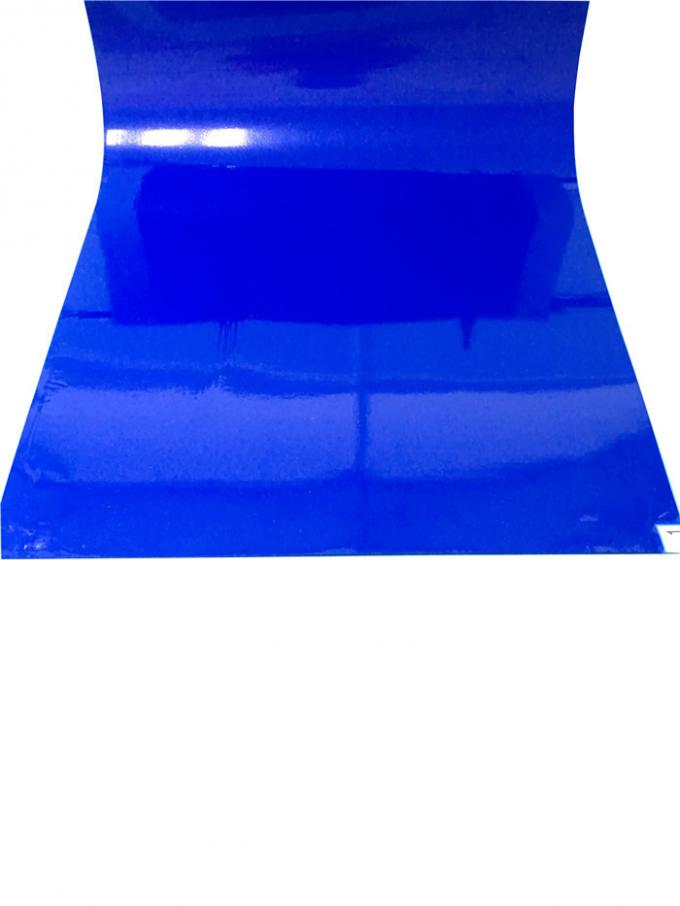

Blue White Disposable PE Cleanroom Sticky Mat 30 layers High Tackiness 18″ x 36″
Description
Clean room mats also known as sticky mats, that help pickup impurities for door entrances that require dust and dirt control.
Our clean room sticky mats feature a tacky surface which removes dirt and dust from shoe or cart castor before they enter.
Sticky mat can vary in sizes, colors, placement, and numbers based on the characteristics and logistics of each cleanroom.
Placement
Matting should be placed in an area where it is clean and flat. It should be placed just before or just after the ingress/ egress point for each cleanliness or control change. It is suggested that the placement sites are worked backward from the final clean area or cleanroom.
Size
The proper size mat depend on the width of the opening and direction and variance of the traffic.
Normally the width of mat should be 2/3rds to 3/4ths of the width of the doorway.
It does not normally need to cover the full width as usually approaching from the straight direction, passes through middle of the doorway.
However, if the traffic enters from the side of the entry or at a sharp angle, then the width of the mat needs to be wider so as to allow for enough footstep.
Color
The color of sticky mats can vary from standard blue, white, grey or transparent. The color will not effect on the function of the mat. In general, the blue color is preferred by most electronics industry to make sure the layers are changed at frequent intervals. However, white and grey is also popular for hospital or pharmaceutical industry.
Storage
Mats should be stored flat. Also it should be used in a controlled temperature of 12-35 C environment for ideal results
Long-term storage of mat should always be on a hard, flat, and solid surface. Storage on the original shipping pallet is recommended.
Normal warehouse conditions are acceptable but extreme temperatures (less than 0 or greater than 40 C) should be avoided.
Storage of product in excess of one year is not recommended. However, under normal storage conditions, product will not have any variation in performance for a period of up to three years.
Applications:
Widely used in entrance of clean rooms, food manufacturing, labs, electronics etc.
Features
| Spec | Value |
|---|---|
| Size | 18″ X 36″, 24″ X 36″, 18″ X 45″, 26″ X 45″ |
| Color | Blue, White, Grey, Transparent, Green |
| Tackiness | Middle/High |
| Thickness | 28/30/32/35/40/45 micron |
| Layer | 30 or 60 layers |
|
Vertical Stretching Strength(N)
|
＞ 20
|
|
Lateral Stretching Strength(N)
|
＞ 12 |
|
Vertical Fracture Elongation Rate(%)
|
＞ 200 |
|
Lateral Fracture Elongation Rate(%)
|
＞ 300 |
|
Anti-Aging Performance
|
240 H |
| Temperature Stability |
60°C-80°C
|
| Package | 4 Mats/case; 8 Mats/case; 10 Mats/case |

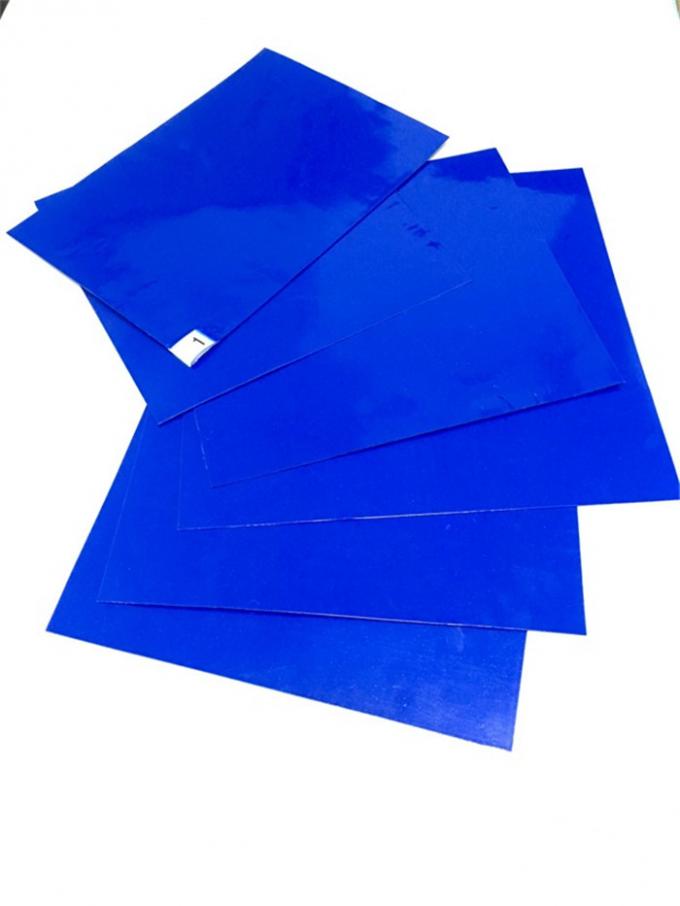

More photos
