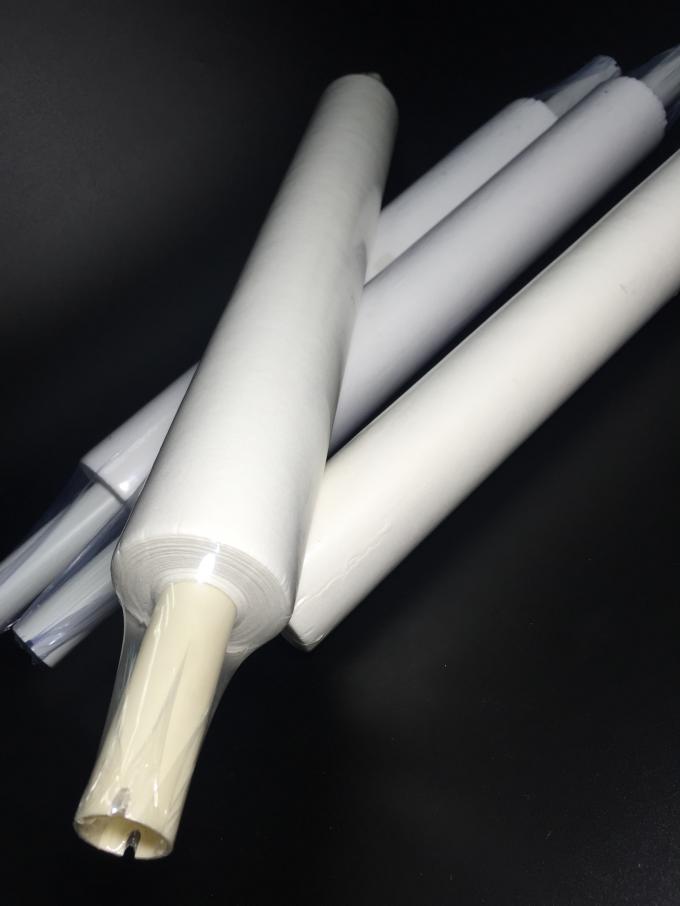

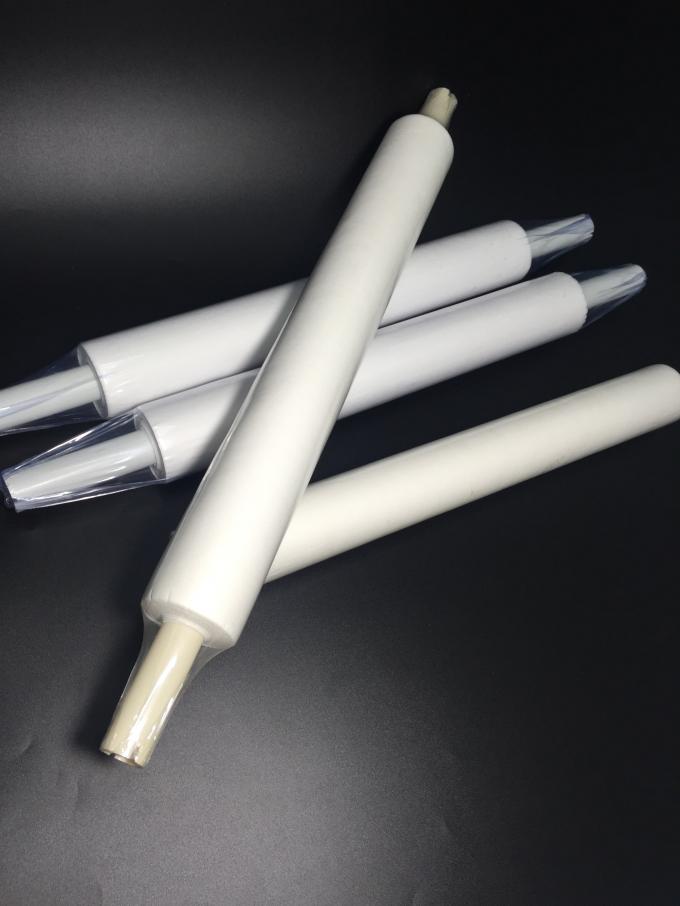

55/45 Wood Pulp-Polyester Non-Woven SMT Stencil Wiper Roll
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/ROHS |
| Model Number: | CW-0102 |
- Description
- Reviews (0)
Description
This polyester cleanroom wiper roll is available in Singapore from Phil Industries. 55 Woodpulp 45 Polyester Non Woven SMT Stencil Cleanroom Wiper Roll provides reliable contamination control for cleanroom and electronics manufacturing environments. As a supplier of cleanroom wipers in Singapore, Phil Industries offers island-wide delivery on all polyester cleanroom wiper roll products.
Detailed Product Description
SMT / PCB Industry Cleanroom Wiper Rolls Non Woven Stencil Weight 68GSM
Description:
Stencil Wiping Rolls are used to remove residual solder paste from the bottom side of PC Board stencils.
It is made by the 55% wood pulp and 45% polyester, or 100% polypropylene, or viscose & polyester. 3 kinds of wiper material for options.
The basic weight of wiper could be: 50gsm, 56gsm, 60gsm, 68gsm etc for choosing.

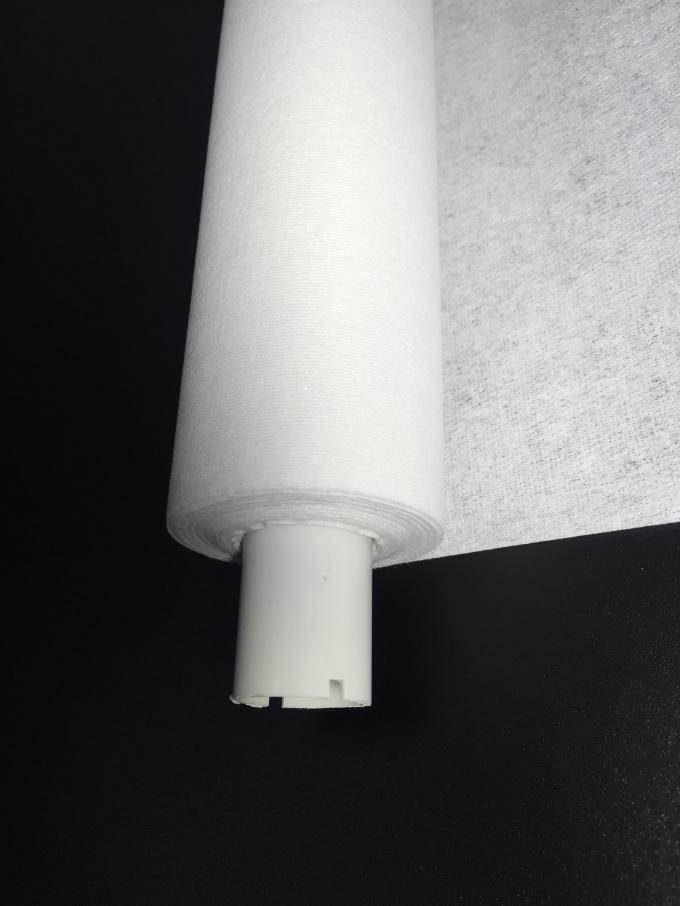

Core materials: Card Paper Core/ Plastic core for options.
We manufacture stencil rolls in a wide range of sizes to fit popular printer models including; DEK machines, MPM machines, EKRA machines, Panasonic machines, Yamaha machines and so on.
Features:
1. Specifically designed for SMT screen printers
2. Solvent resistant, highly water and oil absorbent, and efficient removal of stains, degreasing
3. High strength, tough and durable, even when wet
4. Soft and make no any scratches and damage the surface of the object.
5. Exceptionally low lint levels, and without any chemical adhesive
Specifications
| Spec | Value | Test Method |
|---|---|---|
| Size | Chart as below | |
| Material | 55% Wood Pulp and 45% Polyester | |
| Basis weight | 68g/m² | Electronic Balance Test |
RoHS Compliant
| Ion | Average Value | Equipment Limit Test Value | Test Mehod |
| Chloride(Cl- ) | 0.13 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sulfate(SO₄ ²⁻) | 0.215 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Sodium(Na⁺ ) | 0.554 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Ammonium(NH₄⁺) | 0.0734 | 0.0010 µg/cm² | test by ion chromatography(IC) |
| Silicone/DOP | N.D. | 0.0010 µg/cm² | test by ion chromatography(IC) |
For Examples

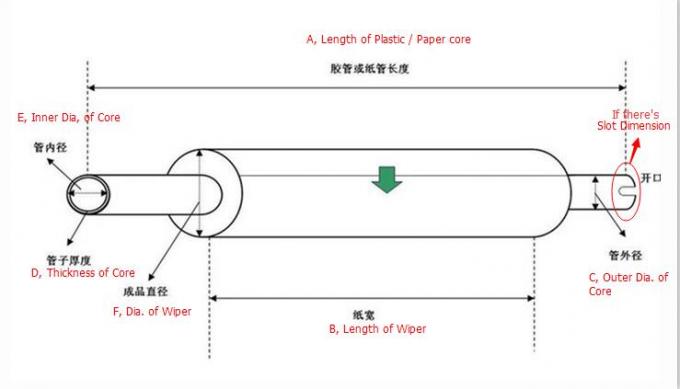

| Machines | Core Inside Dia.(mm) | Core Length(mm) | Cloth Width(mm) | Cloth Length(m) |
| DEK | Ø19.5 | 530 | 520 | 10 |
| MPM | Ø19 | 455 | 445 | 10 |
| PANASERT | Ø38 | 360 | 360 | 12 |
| MINAMI | Ø8 | 290 | 270 | 5 |
| KME | Ø38 | 480 | 480 | 15 |
| EKRA | Ø13.5 | 300 | 300 | 8 |
Always we customize sizes upon request, pls let us know more specific parameters if possible.
Application:
High standard surface cleaning in processing industry, like the cleanout of PCB board, SMT stencil or silk screen.
SMT line, semiconductor production, optical products, PCB production, automotive, mobile phone production, medical equipment and etc.
More photos
