ESD-Safe PU Stool with Chrome Base – 300 lb Capacity
| Brand Name: | ESDpro |
| Certification: | ISO/SGS/CTI |
| Model Number: | AC2471 |
- Description
- Reviews (0)
Description
This PU ESD safe stool is available in Singapore from Phil Industries. 300 Lbs Polyurethane ESD Safe Chairs ESD Stool W Chrome provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD safe chairs in Singapore, Phil Industries offers island-wide delivery on all PU ESD safe stool products.
Detailed Product Description
300 Lbs Polyurethane ESD Safe Chairs ESD Stool w/Chrome Foot Ring Pneumatic
Polyurethane ESD Stool w/Chrome Foot Ring: AC2471
Description: It is made of polyurethane seat, with esd grounding resistivity up to 10⁹ ohms.
Features:
1) Conductive metal chain acts as ground.
2) Adjustable height and optional chrome foot ring
3) Cleanroom Class 100-1000 certified.
4) ESD grounding resistivity range from 10⁷–10⁹ ohms
5) 5 star chrome conical foot, Radius 320mm
6) PA nylon glides, optional castors If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge
7) Resists stains, punctures and chemicals.
8) Height adjustable: 600-800mm
9) Warranty: 1Year
10) Pacakge: partially assembled
Technical Spec
| Spec | Value | Test Method |
|---|---|---|
| Material | Polyurethane | |
| Seat Size | 340*350mm | |
| Thickness | 50mm | |
| Standard Color | Black | |
| Back Tilt | Not available | |
| Seat Tilt | Not available | |
| Gas Lift | Yes | |
| Seat Height Adjustment | 600-800mm | |
| Base | 5-Star Chrome Conical Foot | |
| Footring (Optional) | 400mm diameter adjustable chrome footring | |
| Glides/Castors | ESD or Non-ESD for options |
Parts List:
- Seat w/control Mechanism Q’ty 1pcs
- Chrome Five Star Base Q’ty 1pcs
- Pnuematic Cylinder Q’ty 1pcs
- Glides/Casters Q’ty 5pcs
- Footring (optional) Q’ty 1pcs
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring (if enclosed) onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
Applications
Widely used in EPA / Clean room environment

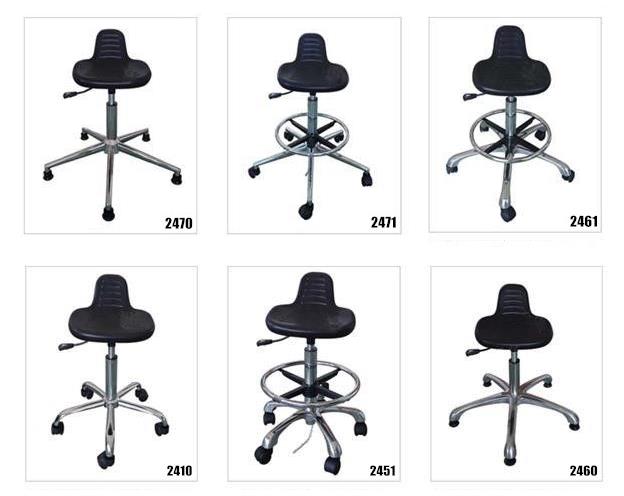

More Styles
