Cordless ESD Anti-Static Knitted Elastic Wrist Band
| Brand Name: | ESDpro |
| Certification: | ISO/SGS |
| Model Number: | ES0102 |
- Description
- Reviews (0)
Description
This ESD elastic band is available in Singapore from Phil Industries. Knitted Elastic Band Blue Orange Maroon Color provides reliable ESD protection for cleanroom and electronics manufacturing environments. As a supplier of ESD wrist straps in Singapore, Phil Industries offers island-wide delivery on all ESD elastic band products.
Detailed Product Description
Knitted Elastic Band Blue Orange Maroon Color Cordless ESD Anti-static Wrist Strap
ESD Safe Cordless Fabric Wrist Strap Adjustable Model ES0102
Descriptions:
It uses static voltage balance principle, to reach:
1, Adopt Corona discharge effect, effective remove electrostatic, and achieve static voltage balance
2, Can use this screw to do potential return to zero function
3, Can be used as circuit detection terminals.
It consists of an elastic band of fabric with fine conductive fibers woven into it, the fibers are made of carbon-filled rubber, and the strap is bound with a stainless steel plate.
Features:
– 360 degree curved wrist band;
– The band is standard with 4mm or 10mm snap;-
– The soft woven fabric allows the skin to breathe and makes it very comfortable to wear.
IMPORTANT NOTICE
Point A: Screw
Point B: Stainless steel
Point C: Conductive Fabric
| Easy procedure for effectiveness testing | ||
| Test-point pair | Electric Resistance | |
| Good | A-B | 10⁶ Ohm < R < 10⁷ Ohm |
| A-C | 10⁶ Ohm < R < 10⁷ Ohm | |
| B-C | 10² Ohm < R < 10⁷ Ohm | |
| Bad | A-B | R>10⁷ Ohm re-inspect |
| B-C | R>10⁷ Ohm replace wrist strap | |

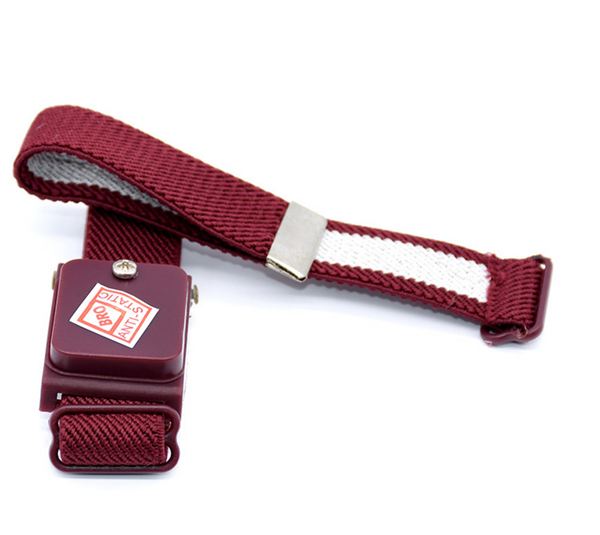

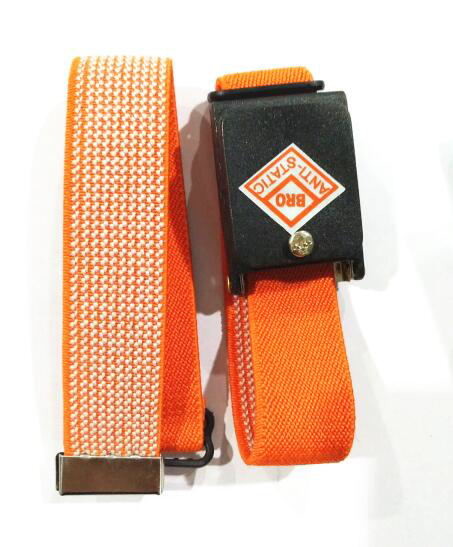

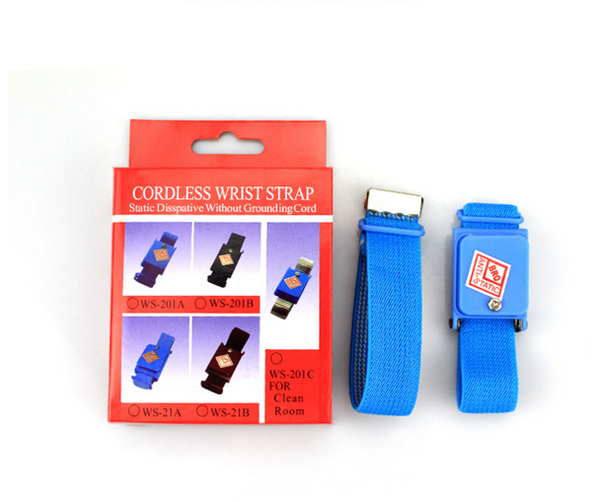

More Photos
