Clamp Magnifying Lamp
Fluorescent Clamp Model: RT201 (Now with new “LED” lighting version)
Lens material: Glass (Optical Lens)
Lens size: 5” Diopter: 3D, 5D and 10D
Size of object view: 175%, 225% and 350%
Focal Length: 330mm, 230mm, 80mm
Power input: 220V ( Electronic Ballast )

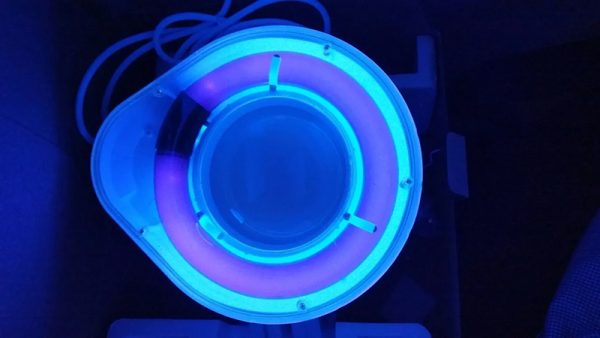

Light Source: 22W Circular fluorescent tube with protection cover Arm Length: 810mm
Color: White
- Description
Description
Part No. Description
RT201-3D Magnifying Lamp, 3 Diopter
RT201-5D Magnifying Lamp, 5 Diopter
RT201-10D Magnifying Lamp, 10 Diopter
Clamp Magnifying Lamp
A clamp magnifying lamp is an much needed tool for anyone working with small and precise details especially precision machining, quality inspection or design. Users can effortlessly see much smaller details, magnifying lamps with lights especially LEDs are very helpful in reducing eye strain and preventing eye tiredness. They are popular with electronics manufacturers, plastic molders, jewelers, watch, electronics repair, hair/dental clinics, industrial quality inspection, laboratories and aerospace.
Try these methods to have a better view.
- Make use you use both eyes while using a magnifying lamp.
- The lens has to be positioned right to keep your object in focus, with your eyes around 8” to 10” away from the main glass. This method allow you to have the best magnification.
- For best results, keep your chair height and working surface positioned to maintain good posture. You shouldn’t be leaning away from the lens when viewing the object.
What does ‘Diopter’ mean is when looking at magnifiers, you’ll come across the term ‘diopter’ instead of times like in the microscope.
- This refers to the amount of curvature a lens will have. More curvature means a thicker lens, higher magnification and a higher diopter number.
- To find the magnification level of a lens, simply divide its diopter by 4, and add 1. For example, if you’re looking at a 3-diopter lens, it’s magnification = ¾ + 1… or .75 + 1 = 1.75x.
- Objects viewed under a 3 diopter lens will appear 175% bigger than usual. A 5-diopter lens = 5/4 + 1… or 1.25 + 1 = 2.25x. Items viewed under a 5 diopter lens will appear 225% bigger than usual.
Field-Of-View:
The field of view is the size of the magnified area that is in focus under the magnifying lens. The higher your magnification, the smaller the field-of-view. For example, if you move the flashlight closer to the wall (stronger light which means stronger magnifying power), the spot of light (field-of-view) will shrink.
Click here to download instruction manual:
Clamp Magnifying Lamp in Singapore
The Clamp Magnifying Lamp provides reliable desk-mounted magnification for inspection and assembly tasks in Singapore. Available from Phil Industries, the authorised distributor in Singapore.
Key Features and Benefits
Furthermore, the desk clamp mounting saves workspace while providing stable, adjustable positioning. The quality lens and lighting combination ensures clear magnified viewing for detailed work. In addition, quality optics and lighting ensure clear visibility. The ergonomic design also supports comfortable extended use.
Singapore Industry Applications
Moreover, this is widely used across Singapore industries. Assembly workstations, inspection benches, and repair desks throughout Singapore use clamp magnifying lamps for detailed hands-free magnification. Therefore, precision manufacturing and inspection operations in Singapore benefit from enhanced visibility.
