High torque with Ø 16 mm O.D. | TD100
- High torque with Ø 16 mm damper (Up to 3 N·m)
- High rigidity achieved by the use of zinc alloy for the shaft
- Adding an option, quick release system: SR14, makes it easy to attach/detach the rotary damper
- Description
Description
Product lineup

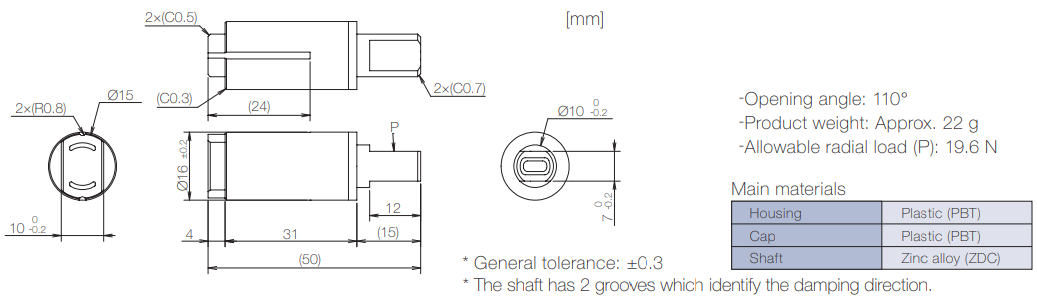

Product information

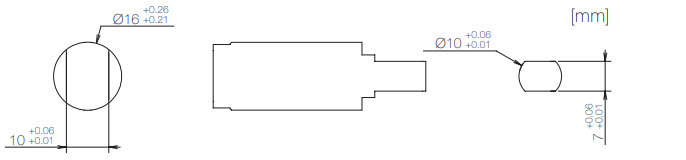

Dimensions related to mounting

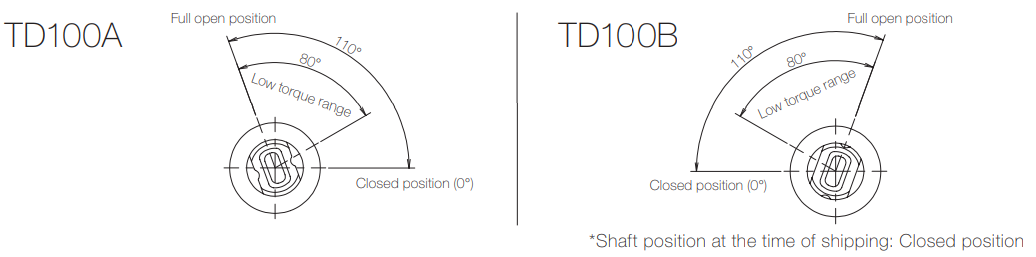

Opening angle

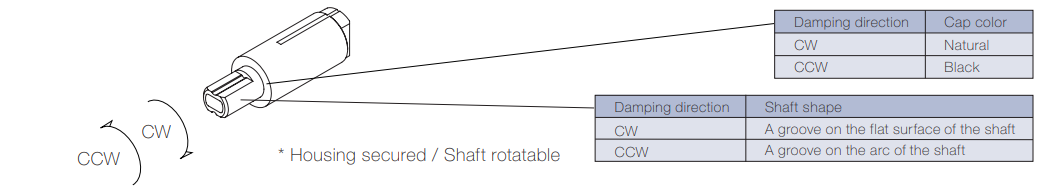

Damping directions
Rotation directions of the shaft to which torque is applied
Product specifications
*Find the catalog below.
