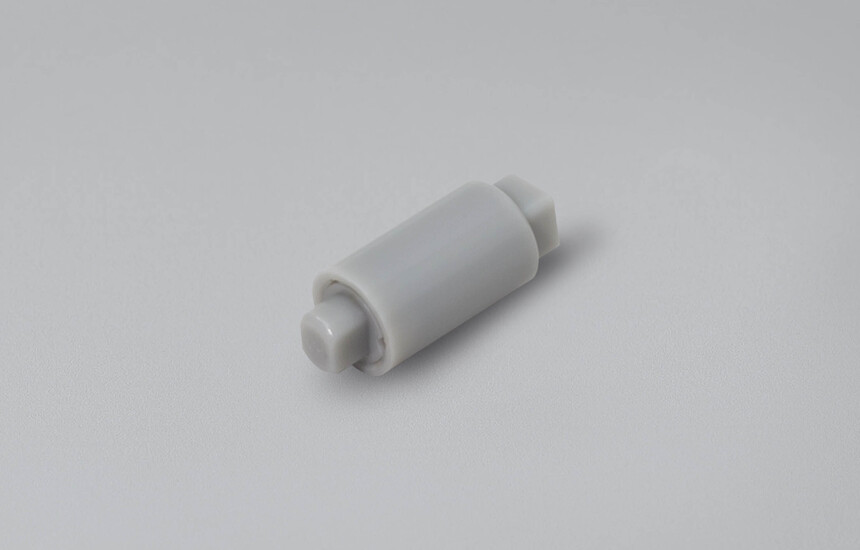

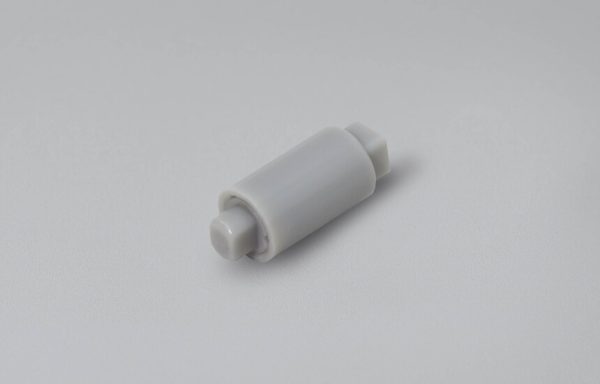

Ultra compact rotary damper | TD101

  • Outer product diameter of Ø 6 mm (Ultra compact)
  • Bidirectional rotary damper
  • Made with impact-resistant polycarbonate (PC) plastic
  • Due to its gray color, the product is inconspicuous after mounting
Category:

Description

Product lineup

Product name Torque [mN·m] (lbf·in) Damping direction
TD101W1-25 2.5 + 1.3/−0.6 (0.02 ± 0.01) Bidirectional
TD101W1-40 4.0 ± 2.2 (0.04 ± 0.02) Bidirectional

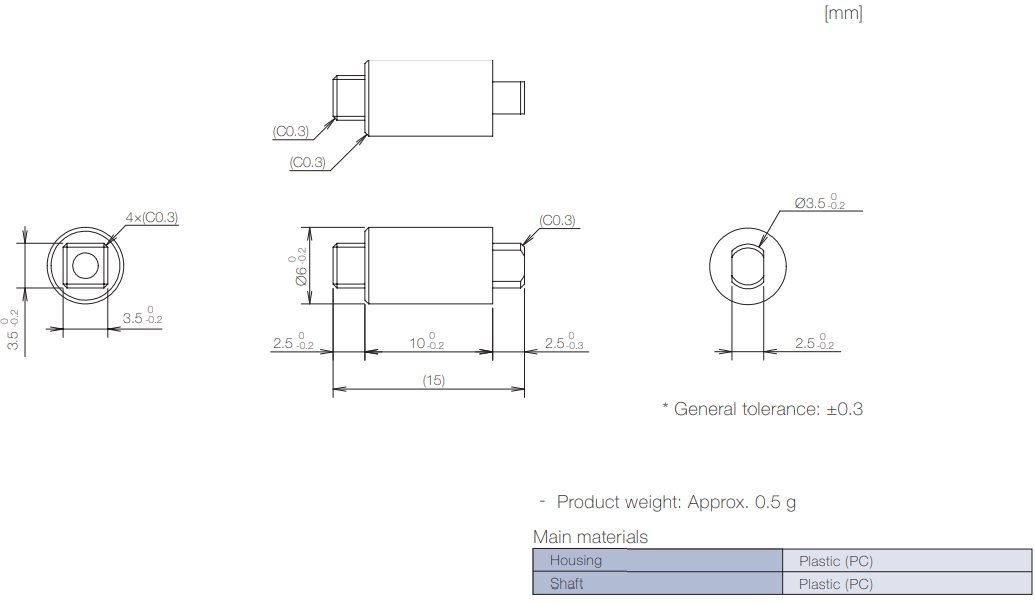

Product information

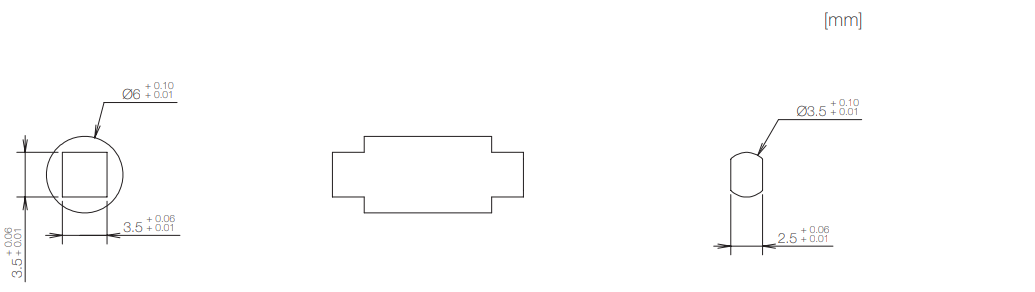

Dimensions related to mounting

Product specifications

*Find the catalog below.
