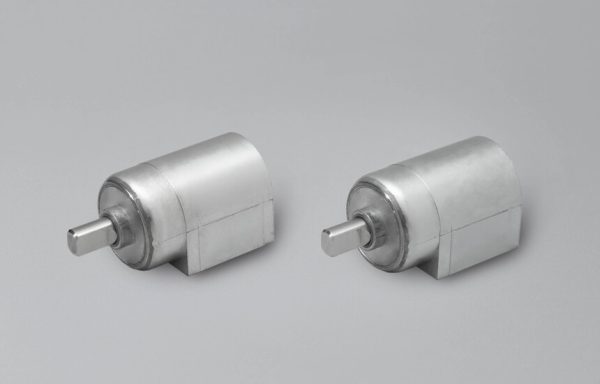

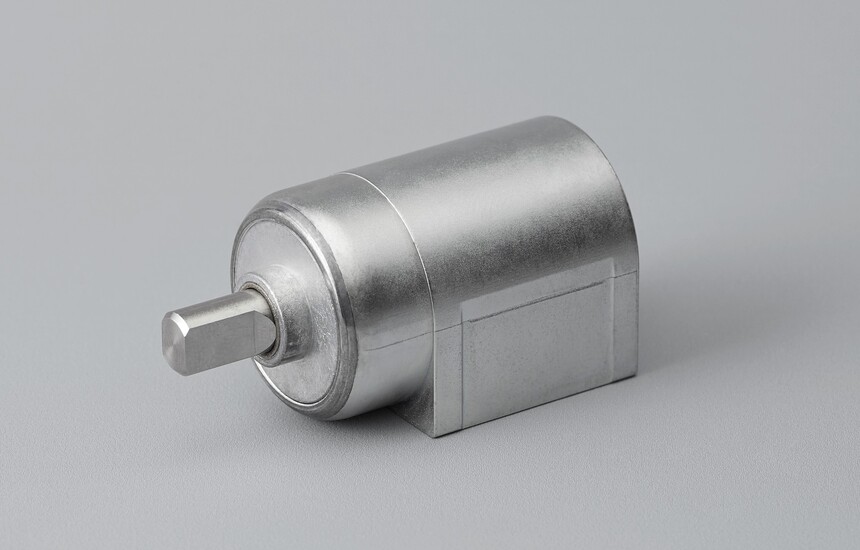

Automatic torque adjustment | SR3

  • Automatic torque adjustment (Applicable to 1 N・m or smaller)
  • Small variation in closing time
  • Durable for 300,000 cycles
Category:

Description

Product lineup

Product name Torque [N·m] (lbf·in) Damping direction
SR3-01-A10K 1.0 (8.85) CW
Product name Torque [N·m] (lbf·in) Damping direction
SR3-02-B10K 1.0 (8.85) CCW

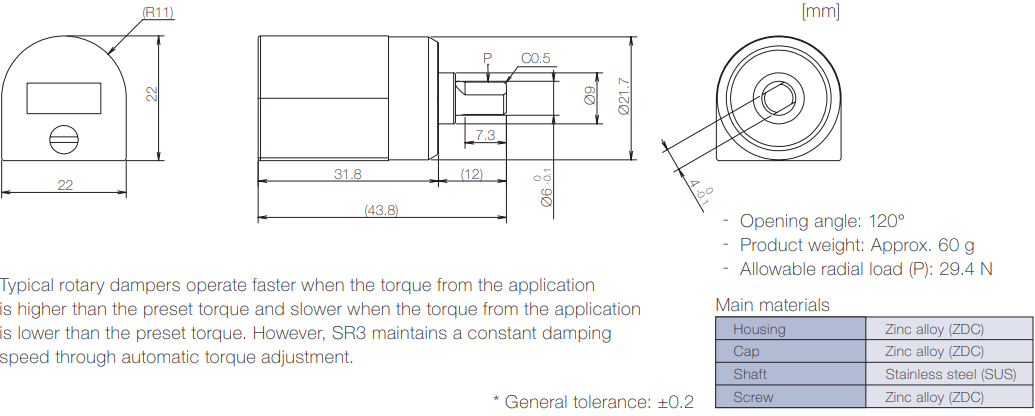

Product information

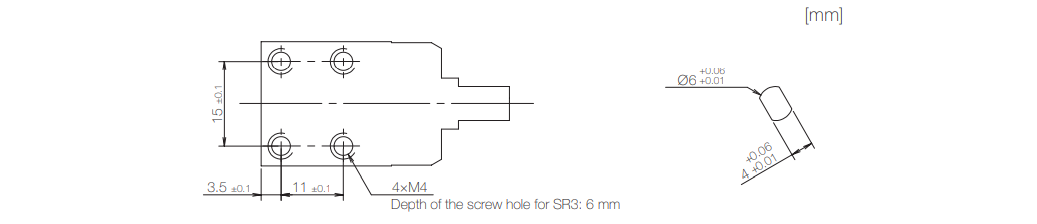

Dimensions related to mounting

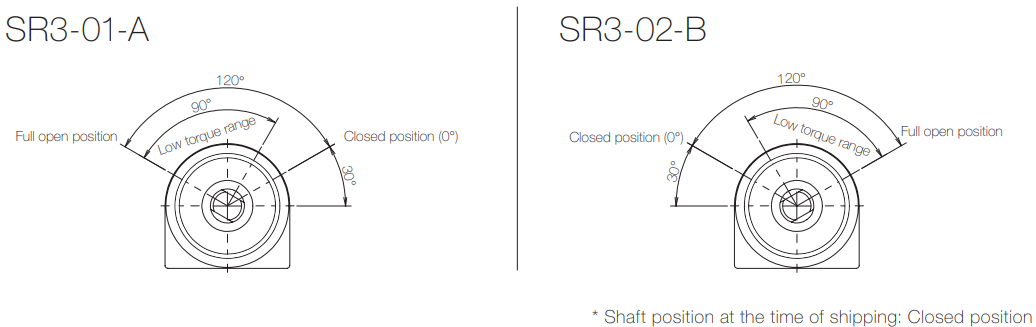

Opening angle

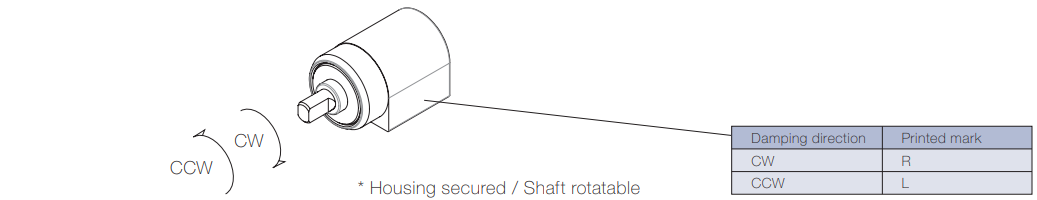

Damping directions

Rotation directions of the shaft to which torque is applied

Product specifications

*Find the catalog below.
