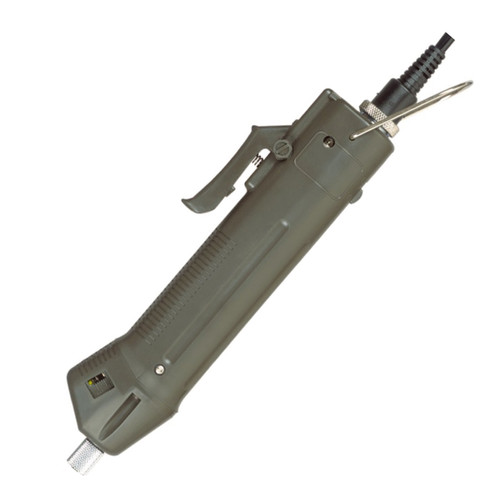

BL-Series Brushless Electric Torque Screwdrivers
The HIOS BL-Series is a brushless electric screwdriver designed for high volume manufacturing. The power tool features a robust brushless motor design that provides durability and longer-lasting service life than their counterparts, brush type electric screwdrivers. There is minimal heat build-up while operating the tool continuously. It maintains a clean environment without emitting carbon particles and significantly reduce maintenance costs. High-speed rotation shortens the tightening time and improves work efficiency. The brushless electric screwdriver automatically shuts off once the preset torque is achieved and enhances product quality through precision torque control and user comfort. The ESD models prevent the occurrence of electrostatic discharge.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Driver Type | Item Name / Number | American | S.I. | Drive Size | ESD Safe | |
|---|---|---|---|---|---|---|---|
 |
BL-2000 ESD | Lever Start | 144390 | 0.17 – 1.7 lbf.in | 2 – 20 cN.m | 4mm Hios Dr. | T |
|
BL-2000 ESD-OPC | Lever Start | 144312 | 0.17 – 1.7 lbf.in | 2 – 20 cN.m | 4mm Hios Dr. | T |
 |
BL-3000 | Lever & Push-to-Start | 144393 | 1.7 – 4.8 lbf.in | 2 – 55 cN.m | 4mm Hios Dr. | F |
 |
BL-3000 ESD | Lever & Push-to-Start | 144395 | 1.7 – 4.8 lbf.in | 2 – 55 cN.m | 4mm Hios Dr. | T |
|
BL-3000-OPC | Lever & Push-to-Start | 144313 | 1.7 – 4.8 lbf.in | 2 – 55 cN.m | 4mm Hios Dr. | F |
 |
BL-5000X | Lever & Push-to-Start | 144383 | 1.7 – 10 lbf.in | 20 – 120 cN.m | 1/4″ F/Hex | F |
|
BL-5000 | Lever & Push-to-Start | 144380 | 1.7 – 10 lbf.in | 20 – 120 cN.m | 4mm Hios Dr. | F |
 |
BL-5000X ESD | Lever & Push-to-Start | 144385 | 1.7 – 10 lbf.in | 20 – 120 cN.m | 1/4″ F/Hex | T |
 |
BL-5000 ESD | Lever & Push-to-Start | 144384 | 1.7 – 10 lbf.in | 20 – 120 cN.m | 4mm Hios Dr. | T |
 |
BL-5000X-OPC | Lever & Push-to-Start | 144389 | 1.7 – 10 lbf.in | 20 – 120 cN.m | 1/4″ F/Hex | F |
|
BL-5020X | Lever & Push-to-Start | 144557 | 4.3 – 17.4 lbf.in | 50 – 200 cN.m | 1/4″ F/Hex | T |
|
BL-5020X ESD | Lever & Push-to-Start | 144370 | 4.3 – 17.4 lbf.in | 50 – 200 cN.m | 1/4″ F/Hex | T |
 |
BL-7000X | Lever & Push-to-Start | 144397 | 6.1 – 24 lbf.in | 70 – 280 cN.m | 1/4″ F/Hex | F |
 |

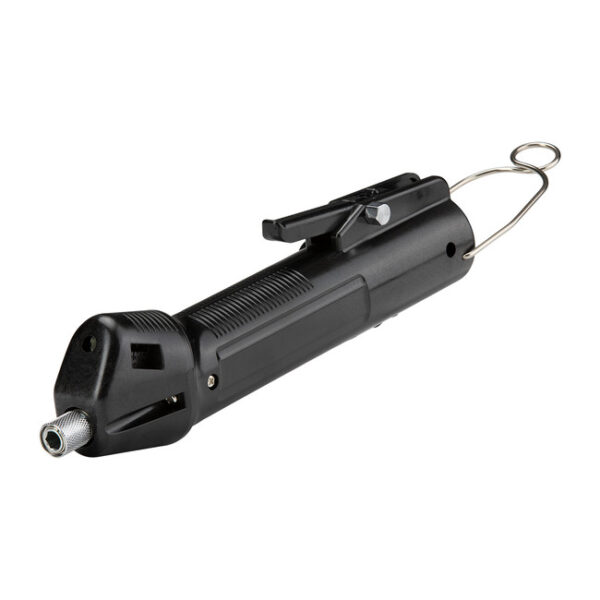

BL-7000X ESD | Lever & Push-to-Start | 144398 | 6.1 – 24 lbf.in | 70 – 280 cN.m | 1/4″ F/Hex | T |
 |
BL-7000X-OPC | Lever & Push-to-Start | 144376 | 6.1 – 24 lbf.in | 70 – 280 cN.m | 1/4″ F/Hex | F |
|
BL-7000X-HT | Lever & Push-to-Start | 144399 | 6.1 – 30 lbf.in | 70 – 340 cN.m | 1/4″ F/Hex | F |
|
BL-7000X-HT ESD | Lever & Push-to-Start | 144309 | 6.1 – 30 lbf.in | 70 – 340 cN.m | 1/4″ F/Hex | T |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- High Power brushless motor design that provides durability and longer-lasting service life than a brush type electric screwdriver.
- Accurate torque control provides precise and controlled fastening with an automatic shut-off clutch.
- Minimal heat build-up while operating the tool continuously.
- ESD safe models prevent electrostatic discharge, which improves production yields, manufacturing costs, product quality, product reliability, reputation and profitability.
- OPC models are designed to operate with BLOP-STC3 screw counter. The error-proofing device detects and eliminates costly screw-fastening errors. It monitors and identifies missing screws, cross-threading, omissions, unfinished rundowns.
- Precision automatic shut-off clutch once preset torque is achieved.
- High-speed rotation shortens the tightening time and improves work efficiency.
- Maintains a clean environment without emitting carbon particles and significantly reduce maintenance costs
- Compact size with a soft texture ergonomic grip.
- Torque adjustment scale.
- Requires a transformer (power supply).
Model : BL-2000 ESD
Model : BL-3000
Model : BL-5000X
Model : BL-7000X
Model : BL-7000X-OPC
Model : BL-7000X-HT
