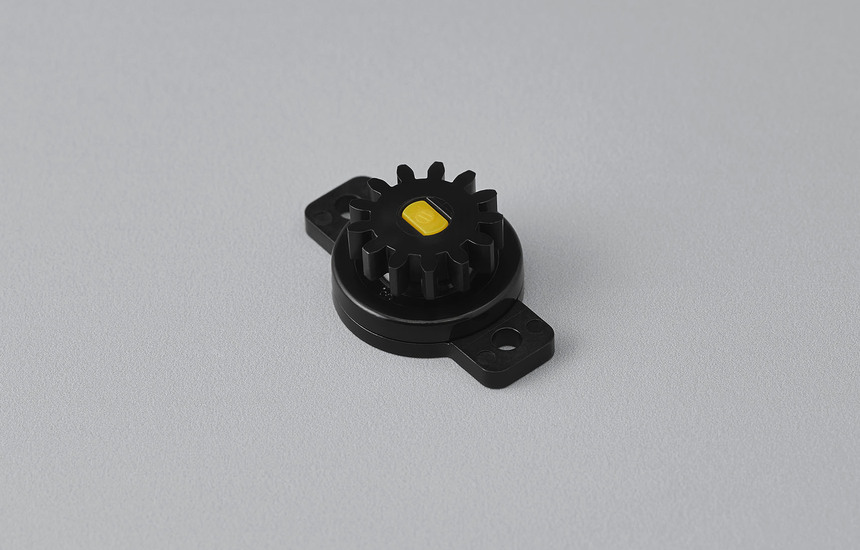

Bidirectional rotary damper | TD102 - Image 2

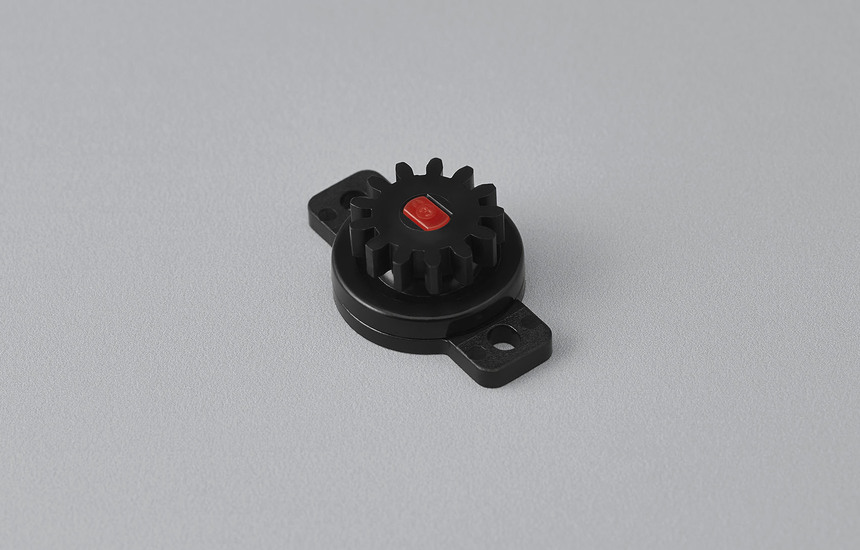

Bidirectional rotary damper | TD102 - Image 3
Can be inserted in either direction | TD73

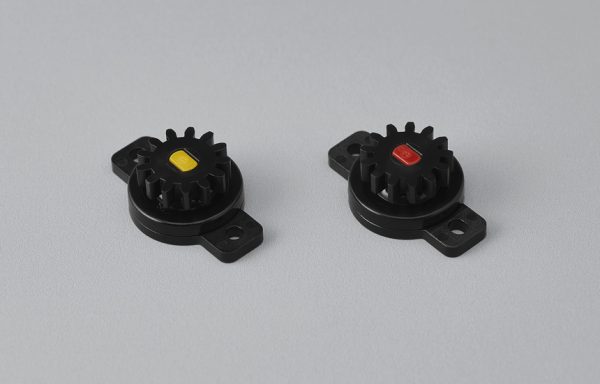

Bidirectional rotary damper | TD102

  • Outer mounting diameter of Ø 14.9 mm (Small diameter and thin type)
  • Bidirectional rotary damper
  • The mounting flange corresponds to the bottom face
  • The shaft colors enable identification of the torque
Category:
Request Quote

Description

Product lineup

Product name Torque [mN·m] (lbf·in) Damping direction Shaft color
TD102W1-25 2.5 ± 1.0 (0.02 ± 0.01) Bidirectional White
TD102W1-40 4.0 ± 1.0 (0.04 ± 0.01) Bidirectional Yellow
TD102W1-60 6.0 ± 1.5 (0.05 ± 0.01) Bidirectional Purple
TD102W1-80 8.0 ± 1.5 (0.07 ± 0.01) Bidirectional Green
TD102W1-120 12.0 ± 2.0 (0.11 ± 0.02) Bidirectional Black
TD102W1-150 15.0 ± 2.5 (0.13 ± 0.02) Bidirectional Red

The torque of all rotary dampers is measured at a rotational speed of 20 min-1.
The products without gear have “(G-L)” at the end of the product name.
Unidirectional rotary dampers are not available.

Product information

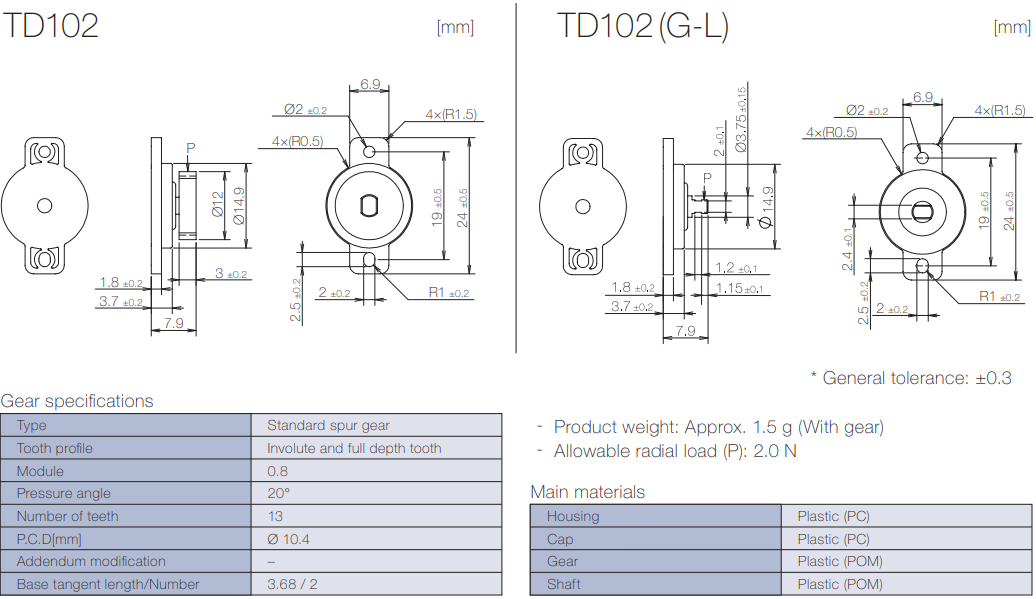

Dimensions related to mounting

Product specifications

*Find the catalog below.

CATALOG
