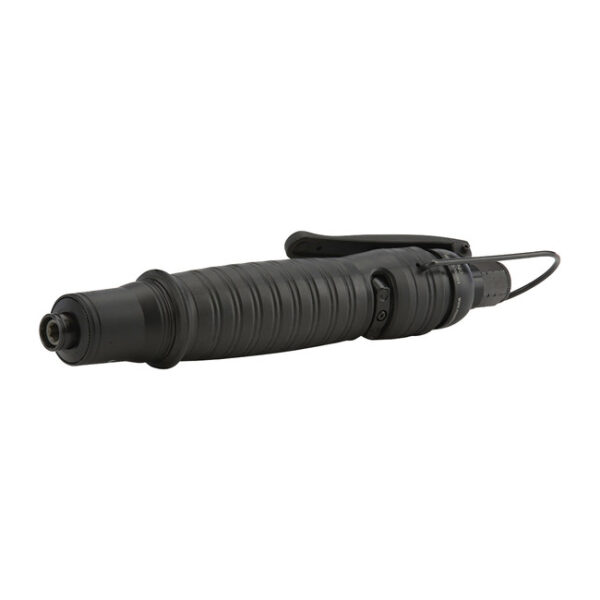

XP-Series In-Line Air Screwdrivers - Image 1
HD-Series Automation Electric Screwdrivers
XP-Series Pistol Grip Air Screwdrivers

XP-Series In-Line Air Screwdrivers

Crafted for high production environments, the Flex Power In-Line air screwdriver provides durability, power and speed for assembly and manufacturing applications at an affordable price. Designed for safe operation and increase comfort for operators, the Flex Power tools provide lower noise decibels than comparative air tools as well as minimal vibration and low torque reaction on the operator. Featuring a patented clutch design the Flex Power tools delivers reliable accuracy with repeatable torque control. The clutch mechanism shuts off the air supply when the preset torque setting is achieved, preventing over-torque conditions from occurring.

Categories: , , ,
Request Quote

Description

CHOOSE THE MODEL BELOW

Model Driver Type Item Name / Number American S.I. Metric Drive Size RPM
XP35 Lever Start 360000 2.6 – 17.4 lbf.in 0.3 – 2 N.m 3.1 – 20.4 kgf.cm 1/4″ F/Hex 2200
XP35PS Push-to-Start 360005 2.6 – 17.4 lbf.in 0.3 – 2 N.m 3.1 – 20.4 kgf.cm 1/4″ F/Hex 2200
XP40 Lever Start 360001 4.3 – 30.4 lbf.in 0.5 – 3.4 N.m 5.1 – 34.7 kgf.cm 1/4″ F/Hex 1000
XP40PS Push-to-Start 360006 4.3 – 30.4 lbf.in 0.5 – 3.4 N.m 5.1 – 34.7 kgf.cm 1/4″ F/Hex 1000
XP45 Lever Start 360002 6.9 – 34.7 lbf.in 0.8 – 3.9 N.m 8.2 – 39.8 kgf.cm 1/4″ F/Hex 800
XP45PS Push-to-Start 360007 6.9 – 34.7 lbf.in 0.8 – 3.9 N.m 8.2 – 39.8 kgf.cm 1/4″ F/Hex 800
XP48 Lever Start 360003 4.3 – 39.1 lbf.in 0.5 – 4.4 N.m 5.1 – 52 kgf.cm 1/4″ F/Hex 1700
XP48PS Push-to-Start 360008 4.3 – 39.1 lbf.in 0.5 – 4.4 N.m 5.1 – 52 kgf.cm 1/4″ F/Hex 1700
XP60 Lever Start 360004 26 – 95.5 lbf.in 2.9 – 10.8 N.m 29.6 – 110.2 kgf.cm 1/4″ F/Hex 550
XP60PS Push-to-Start 360009 26 – 95.5 lbf.in 2.9 – 10.8 N.m 29.6 – 110.2 kgf.cm 1/4″ F/Hex 550

CHOOSE THE MODEL BELOW

Model: Socket Head Power Bits 1/20 x 2″
Item Name / Number:  121039
Bit Hex Size: 1/20″
Bit Length(IN): 2″
Package Quantity

Tool Benefits

  • Various models that range from 2.6 – 95.5 lbf.in
  • The high-performance oil-free motor delivers environmentally friendly, durable, power and speed. One-third more power than competitive models.
  • Safe operation with reduced noise, vibration and low torque reaction.
  • High accuracy patented clutch with precision automatic shut-off.
  • Soft texture ergonomic grip for operator comfort.
  • One-touch torque adjustment eliminates the difficult setup of drivers.
  • Torque cover prevents operator tampering.
  • Four different colored tool bands allow color-coding of specific torque values (Red, Green, Blue, Yellow are included)
  • Built with new aluminum alloy to provide durability and reduced maintenance – no cracking, fading, or chipping found in composite body tools.
  • Ergonomically safer than harmful hammering and vibration of impact wrenches.

Accessories

  • Air Hose
  • Coupler
  • Ergonomic Torque Arms
  • Fittings
  • Filter Regulator & Lubricator
  • Mag-O-Nets
  • Screw Presenter
  • Tool Balancers
  • Tool Stand
