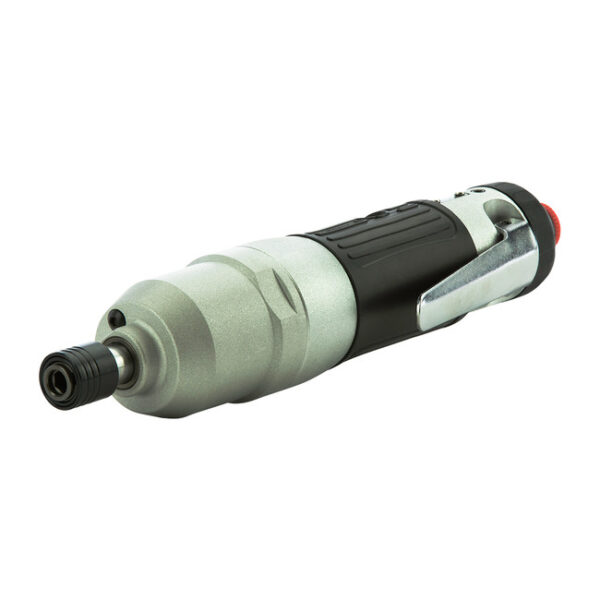

Flex Power In-Line Auto Shut-Off Pulse Tools
Auto shut-off in-line pulse tool that automatically shuts off the air supply when the pre-set torque is reached. These rugged assembly tools increase productivity and enhance product quality through precision torque control and user comfort. The FlexPower Pulse Tools provide operators with an industry leading power-to-weight ratio, allowing for a smaller tool selection for greater torques giving operators a lighter tool with more torque capability. Ergonomically safer than harmful hammering and vibration of impact wrenches. Built for durability with a superior O-ring design and specially designed pulse fluid FlexPower extends life between regular oil changes and provides more torque stability. Offers comfortable rubberized non-slip grips for easy handling and excellent thermal ergonomics. Low noise decibels, minimal vibration and low torque reaction. It is important to understand your joint application before a selecting a pulse tool.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Drive Size | Free Speed RPM | |
|---|---|---|---|---|---|---|
 |
FLEXS-30SX | 360122 | 4.4 – 9.2 lbf.ft | 6 – 12.5 N.m | 1/4″ F/Hex | 4200 |
 |
FLEXS-40SX | 360123 | 7.4 – 13.2 lbf.ft | 10 – 18 N.m | 1/4″ F/Hex | 4200 |
 |
FLEXS-40S | 360124 | 8.1 – 14 lbf.ft | 11 – 19 N.m | 3/8″ Sq. Dr. | 4200 |
 |
FLEXS-50SX | 360125 | 10.3 – 19.1 lbf.ft | 14 – 26 N.m | 1/4″ F/Hex | 7200 |
 |
FLEXS-50S | 360126 | 11.1 – 19.9 lbf.ft | 15 – 27 N.m | 3/8″ Sq. Dr. | 7200 |
|
FLEXS-60SX | 360127 | 14.8 – 22.1 lbf.ft | 20 – 30 N.m | 1/4″ F/Hex | 6000 |
 |
FLEXS-60S | 360128 | 16.2 – 25.8 lbf.ft | 22 – 35 N.m | 3/8″ Sq. Dr. | 6000 |
 |
FLEXS-70S | 360129 | 22.8 – 34.6 lbf.ft | 31 – 47 N.m | 3/8″ Sq. Dr. | 5000 |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Various models that range from 4.4 – 34.6 lbf.ft
- Ergonomically safer than harmful hammering and vibration of impact wrenches.
- Designed to enhance cycle time with high-speed rundown.
- Excellent power-to-weight ratio.
- Safe ergonomic tool – low noise decibels, minimal vibration & reaction free operation.
- Comfortable rubberized non-slip grips for easy handling and excellent thermal ergonomics.
- O-ring design and specially designed pulse fluid FlexPower extends life between regular oil changes and provides more torque stability.
- Specially designed pulse fluid extends life between oil changes and provides better torque stability. Double sealing increases performance and reduces maintenance.
- Automatically shuts off the air supply when the pre-set torque is reached.
- Pin Detent included with square drive models.
