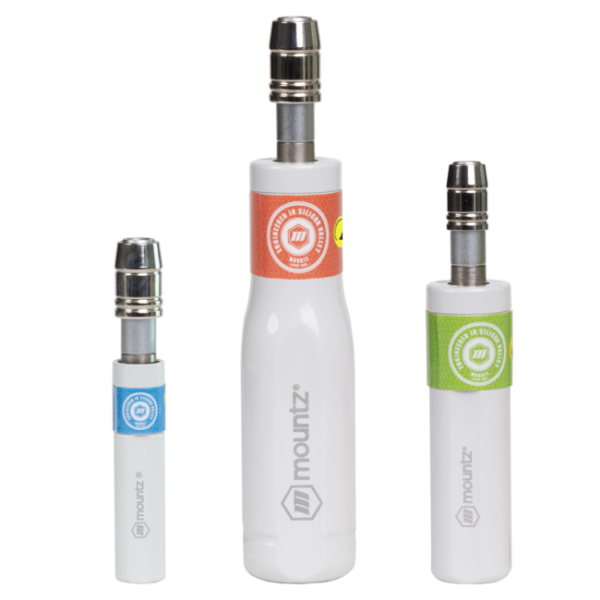

FG ESD Preset Torque Screwdrivers

ESD Environment:

• • • Equipped with anti-static properties, the ESD screwdrivers effectively minimize static electricity generation and particle attraction.
    • ESD safe tool prevents electrostatic discharge — high-grade dissipative coating maintains a surface resistance within the range of 10⁵ to 10⁸ Ohms, ensuring compliance with ESD standards (Methods: IEC 61340-5-1, ANSI/ESD STM11.13). Review our technical support document to learn more about our ESD testing process.
    • Features dynamic wear-resistant internal seals as an added protective measure to prevent grease leakage and contamination from infiltrating sensitive areas or components.

Error-Proofing:

• • • Engineered with a cam-over mechanism, the poka-yoke torque screwdrivers reduce the possibility of operator error in both fastening directions, ensuring correct torque is applied and preventing fastener breakage.
    • Providing the operator with a preset tool prevents tampering and ensures that operators always use the appropriate torque setting—unmatched security of the tamper-proof internal adjustment. No external adjustment scale—must be preset using a torque analyzer.

Process Improvement:

• • • Preset torque screwdrivers are ideal for production applications where consistent torque is critical. The screwdrivers are commonly used for precision fastening tasks where operators must consistently apply the same torque setting for each part. Preset torque screwdrivers offer greater consistency and repeatability, reducing the risk of operator error.

Ergonomics:

• • • Ergonomic handles are designed with fewer flutes and larger recesses to make the tools easier to hold, and less likely to cause hand fatigue.

Advanced Technology:

• • • Mountz torque unique bearing system eliminates axial load and sideloads on the fastener applied by the operator.
    • Mountz tools use a patented secure bit locking mechanism with a one-touch release so that the operator can activate it to enable greater flexibility of applications and efficiency on the line.
    • Reduced bit wear lowers the incidence of bits falling out, which can slow production or cause product damage.
    • The new design improves serviceability, reduces downtime, and enables the replacement of individual parts to extend the life of your investment.
    • The tool can be calibrated and operational in either the CW or CCW direction. (FG-ESD screwdriver default configuration: Torque Direction Arrow is engraved in CW direction on the tool. Mountz preset service option is conducted in the CW direction). Request a quote for an application that requires CCW calibration and CCW Torque Direction Arrow on the FG-ESD tool.

Mountz Quality Standards:

• • Our tools are durable & reliable. We provide an industry-leading warranty: 2 years unconditional. Lifetime against defects.
  • Calibration life 4x ISO standards (for the FG-8i ESD, FG-20i ESD, FG-40i ESD, and FG-125i ESD models). Unmatched by any torque screwdriver.
  • Calibration life meets the ISO standards (for the FG-25z ESD & FG-50z ESD models).

Learn how ESD torque screwdrivers prevent electrostatic discharge and over torque events. Download the white paper.

FAQ for FG Mini ESD Preset Screwdriver

Model : FG-25z ESD

View/Download Parts List
FG-25z ESD Drawing
FG-25z ESD CAD/Step File

Model: FG-50z ESD

View/Download Parts List
FG-50z ESD Drawing
FG-50z ESD CAD/Step File

Model: FG-8i

FG-8i ESD Drawing

Model: FG-20i

View/Download Drawing

Model: FG-40i

FG-40i ESD Drawing

Model: FG-125i ESD

FG-125i ESD Drawing
