CLS

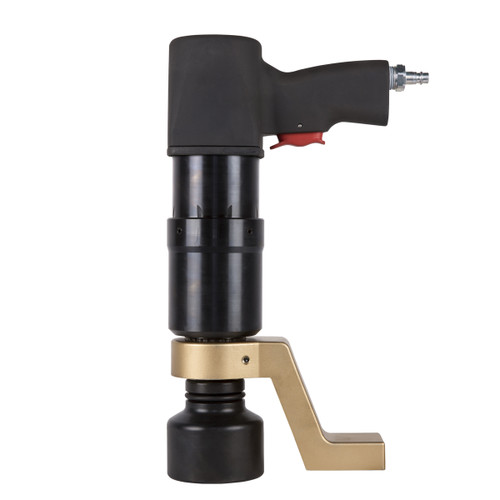

The CLS pneumatic torque multiplier provides precision tightening and loosening of all heavy duty fastening connections. The torque multiplier shuts-off when pre-set torque is achieved. It’s a non-impacting and operates at a smooth, continuous rotation, the torque multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | American | S.I. | Drive Size | |
|---|---|---|---|---|---|
 |
CLS15 | 213030 | 44 – 162 lbf.ft | 60 – 220 N.m | 1/2″ Sq. Dr. |
|
CLS15 | 213031 | 44 – 162 lbf.ft | 60 – 220 N.m | 3/4″ Sq. Dr. |
|
CLS25 | 213032 | 70 – 206 lbf.ft | 95 – 280 N.m | 1/2″ Sq. Dr. |
|
CLS25 | 213033 | 70 – 206 lbf.ft | 95 – 280 N.m | 3/4″ Sq. Dr. |
|
CLS35 | 213034 | 99 – 287 lbf.ft | 135 – 390 N.m | 3/4″ Sq. Dr. |
|
CLS45 | 213035 | 121 – 357 lbf.ft | 165 – 485 N.m | 3/4″ Sq. Dr. |
|
CLS75 | 213036 | 225 – 660 lbf.ft | 305 – 895 N.m | 3/4″ Sq. Dr. |
|
CLS95 | 213037 | 269 – 796 lbf.ft | 365 – 1080 N.m | 3/4″ Sq. Dr. |
|
CLS135 | 213038 | 365 – 1069 lbf.ft | 495 – 1450 N.m | 1″ Sq. Dr. |
|
CLS175 | 213039 | 475 – 1401 lbf.ft | 645 – 1900 N.m | 1″ Sq. Dr. |
|
CLS255 | 213040 | 671 – 1969 lbf.ft | 910 – 2670 N.m | 1″ Sq. Dr. |
|
CLS315 | 213041 | 870 – 2551 lbf.ft | 1180 – 3460 N.m | 1″ Sq. Dr. |
|
CLS2/100 | 213001 | 88 – 830 lbf.ft | 120 – 1125 N.m | 3/4″ Sq. Dr. |
|
CLS2/100 | 213002 | 88 – 830 lbf.ft | 120 – 1125 N.m | 1″ Sq. Dr. |
|
CLS2/150 | 213014 | 125 – 1191 lbf.ft | 170 – 1615 N.m | 1″ Sq. Dr. |
|
CLS2/300 | 213003 | 284 – 2651 lbf.ft | 385 – 3595 N.m | 1″ Sq. Dr. |
|
CLS2/400 | 213004 | 398 – 3728 lbf.ft | 540 – 5055 N.m | 1″ Sq. Dr. |
|
CLS2/600 | 213006 | 620 – 5800 lbf.ft | 840 – 7865 N.m | 1″ Sq. Dr. |
|
CLS2/800 | 213008 | 745 – 6960 lbf.ft | 1010 – 9435 N.m | 1″ Sq. Dr. |
|
CLS2/1000 | 213010 | 866 – 8120 lbf.ft | 1175 – 11010 N.m | 1 1/2″ Sq. Dr. |
|
CLS2/4800 | 213005 | 3466 – 35845 lbf.ft | 4700 – 48600 N.m | 2 1/2″ Sq. Dr. |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Compact design is safe, easy, and simple to handle.
- Precision tightening and loosening of all heavy duty fastening connections.
- Shuts-off when pre-set torque is achieved. Non-impacting and operates at a smooth, continuous rotation
- Torque adjustment and control is regulated by the Lubro Control Unit (LCU) via the air supply.
- Multiplier increases speed and productivity, as it is faster than a hydraulic wrench and is less expensive. Eliminates the cumbersome set up time and slow ratcheting process of hydraulic wrenches.
- Ergonomically safer than the harmful hammering of impact wrenches. Eliminates the frequent costly repairs of impact wrenches.
- Heavy-duty gear box.
- Two options: Single Speed models (CLS15 – CLS1700) are high speed with low torque range. Two Speed models (CLS2/100 – CLS2/4800) feature manual two-speed gearbox for controlled screw tightening with high torque range.
Accuracy better than ± 5%
- Lubro Control Unit
- Reaction Devices
- Retention Rings
- 6 Pt. Impact Sockets
