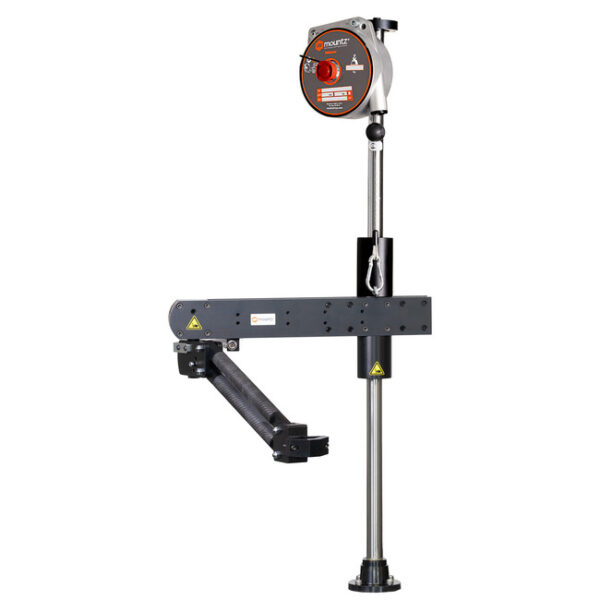

ATS-Series Articulated Torque Arms
Mountz articulated torque arms absorb the torque reaction emitted from power tools, enhancing operator comfort and reducing fatigue. The torque arms provide exceptional agility, making them perfect for complex and dynamic tasks. These arms enhance ergonomic support by allowing operators to maneuver tools precisely and efficiently, significantly reducing physical strain and preventing repetitive motion injuries.
With the ability to bend like an elbow, articulated torque arms can be used in various positions, making them suitable for various applications. Whether working in tight spaces or needing to adjust the angle frequently, these arms provide the required flexibility.
Process Improvement and Safety Benefits:
- Enhanced Safety: Reduces the physical strain on operators, promoting a safer working environment and reducing the risk of injuries. Built to absorb torque reactions from power tools, enhancing operator comfort and reducing fatigue.
- Quality: Enhance process control by preventing cross-threading and sideload occurrences through maintaining perpendicular power tool alignment.
- Space Efficiency: Ideal for compact workstations, making the best use of available space while maintaining high productivity.
- Superior Agility: Designed to offer maximum flexibility, these arms excel in applications requiring intricate and multi-directional movements.
- Adaptability: Easily reconfigured for new tasks, ensuring long-term usability and value in dynamic production environments.
- Durability: The column (pole) is constructed from premium aluminum, ensuring maximum durability and a lightweight structure. Its robust design guarantees long-lasting performance and resilience, making it perfect for demanding environments.
- Ease of Use: The tool balancer features a high-strength braided cable, engineered for superior reliability and control. The adjustable tension mechanism allows you to customize the balance according to your specific needs, ensuring optimal performance and ease of use.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Arm Reach At Inclination 0 | Arm Reach At Inclination 22.5 | Arm Reach At Inclination 45 | Tool Height (IN) | Clamp Diameter | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ATS-15 | 260600 | 11 | lbf.ft | 15 | N.m | 19″ – 23.6″ | —— | —— | 30.6 | 1 – 1 3/4″ |
 |
ATS-25 | 260601 | 18.4 | lbf.ft | 25 | N.m | 21″ – 23.6″ | 20.7″ – 21″ | 18″ – 19.3″ | 39.1 | 1 – 2 1/4″ |
 |
ATS-40 | 260602 | 29.5 | lbf.ft | 40 | N.m | 23″ – 29.2″ | 25.2″ – 28.4″ | 12.4″ – 26.3″ | 39.1 | 1 – 2 1/4″ |
 |
ATS-80 | 260603 | 59 | lbf.ft | 80 | N.m | 22″ – 28.6″ | 17.8″ – 28″ | 13.3″ – 26″ | 43.8 | 1 – 2 1/4″ |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
Enhance Ergonomic and Safety Benefits:
-
-
- Reduces the physical strain on operators, promoting a safer working environment and reducing the risk of injuries.
- Mountz ergonomic torque arm absorbs the torque reaction emitted from power tools, enhancing operator comfort and reducing fatigue.
- Decrease RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) events while improving production output.
-
Process Improvement:
-
-
- Superior Agility: Designed to offer maximum flexibility, these arms excel in applications requiring intricate and multi-directional movements.
- Space Efficiency: Ideal for compact workstations, making the best use of available space while maintaining high productivity.
- Adaptability: Easily reconfigured for new tasks, ensuring long-term usability and value in dynamic production environments.
- Improve process control by preventing cross-threading and sideload occurrences by keeping the power tool perpendicular alignment.
- The Mountz articulated arm is used with electric and pneumatic screwdrivers and prevents power tools from being accidentally dropped.
-
Quality Materials:
-
- The arm’s column (pole) is steel with a polished chrome finish.
- Tool balancers have an aluminum housing and braided cable for durability. Load adjustability can be easily made by turning the knob clockwise for lighter loads and counterclockwise for heavier loads. The balancers have a locking mechanism to prevent injury. The balancers included take into account the load of the arm and average loads of tools, cables, and bits delivering up to the maximum torque for the arm.
- (ATS-15 model) The arm’s support slider is made of industrial-grade thermoplastic for optimized weight and durability in lower-torque applications, and features integrated steel bearings.
- (ATS-15 model) The Mountz articulated arm is made of 7000-series aluminum with a thermoplastic hinge.
- (ATS-25/40/80 models) The arm’s support slider is made of aluminum with steel bearings, providing smooth and long-lasting vertical movement.
- (ATS-25/40/80 models) The articulated arms are made of 7000-series aluminum wrapped in multi-directional carbon fiber to enhance the strength-to-weight ratio, increase the arm’s torsional strength and minimize the transfer of torsional forces.
