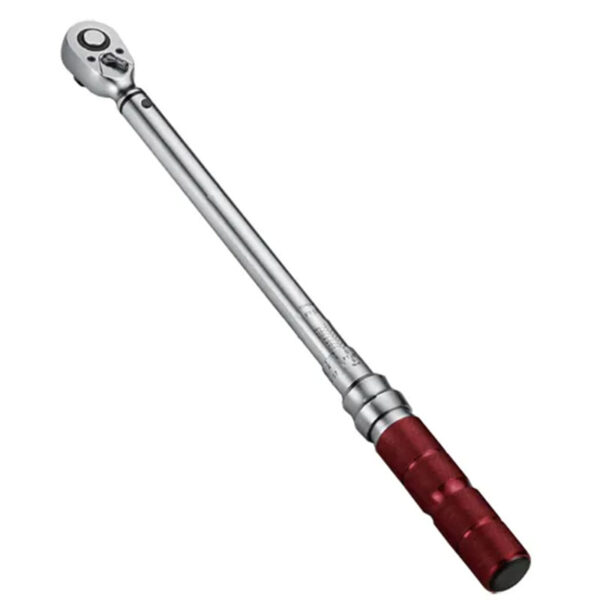

Adjustable Torque Wrench Tool
Adjustable Torque Wrench Tool | EPT Model
Adjustable Torque Wrench Tool features an external adjustment torque scale, which allows an operator to quickly adjust the torque setting on the tool as needed for different applications.
The cost effective of adjustable click torque wrench are durable and robust for a wide variety of industrial fastening applications. Our EPT adjustable click torque wrench is built with high quality materials to ensure low repair frequency and less repair costs. The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).
- Description
- Torque Ranges
Description
Adjustable Torque Wrench Tool Benefits
- Durable and robust for industrial fastening applications.
- Adjustable torque wrench with a square drive. Bi-directional ratchet head.
- External dual scale (American & S.I.) Graduation collar on the torque handle.
- Easy to read laser marked scale.
- Crafted with strong steel shaft with high corrosion resistance.
- Lightly knurled non-slip grip.
- 48 tooth ratchet (for models EPT250i – EPT750F).
60 tooth ratchet (for EPT100i). - Positive lock with spring loaded pull-down ring.
- Positive click can be heard and felt when torque is reached.
- This adjustable click torque wrench is ideal for field service, maintenance or production environments.
*Note! After being used, adjustable click torque wrenches should be turned back to minimum scale value. This helps to preserve the springs and ensures a longer product life cycle with high precision.
| Model | Item # | American | N.m | Graduation Scale |
Graduation Scale |
Drive Size | Wt. lbs. |
Wt. kg. |
| EPT100i | 280050 | 20 – 100 lbf.in | 2.8 – 11.9 N.m | 0.5 lbf.in | 0.1 N.m | 1/4″ Sq. Dr. | 0.4 | 0.18 |
| EPT250i-D | 280033 | 50 – 250 lbf.in | 6.2 – 28.8 | 1 lbf.in | 0.1 N.m | 1/4″ Sq. Dr. | 0.9 | 0.4 |
| EPT250i-A | 280034 | 50 – 250 lbf.in | 6.2 – 28.8 | 1 lbf.in | 0.1 N.m | 3/8″ Sq. Dr. | 0.9 | 0.4 |
| EPT75F | 280035 | 15 – 75 lbf.ft | 23.7 – 105.1 | 0.5 lbf.ft | 0.5 N.m | 3/8″ Sq. Dr. | 2.6 | 1.2 |
| EPT150F | 280036 | 10 – 150 lbf.ft | 20.3 – 210.1 | 1 lbf.ft | 1 N.m | 1/2″ Sq. Dr. | 3.5 | 1.6 |
| EPT250F | 280037 | 30 – 250 lbf.ft | 47.4 – 345.7 | 2 lbf.ft | 2 N.m | 1/2″ Sq. Dr. | 3.5 | 1.6 |
| EPT400F | 280038 | 80 – 400 lbf.ft | 142.3 – 559.2 | 2.5 lbf.ft | 2.5 N.m | 3/4″ Sq. Dr. | 10.9 | 4.9 |
| EPT550F | 280039 | 110 – 550 lbf.ft | 183 – 779.5 | 2.5 lbf.ft | 5 N.m | 3/4″ Sq. Dr. | 12.6 | 5.7 |
| EPT750F | 280040 | 150 – 750 blf.ft | 237.2 – 1050.6 | 5 lbf.ft | 5 N.m | 1″ Sq. Dr. | 14.4 | 6.5 |
Note! After being used, adjustable torque wrench tool should be turned back to minimum scale value. This helps to preserve the springs and ensures a longer product life cycle with high precision.
