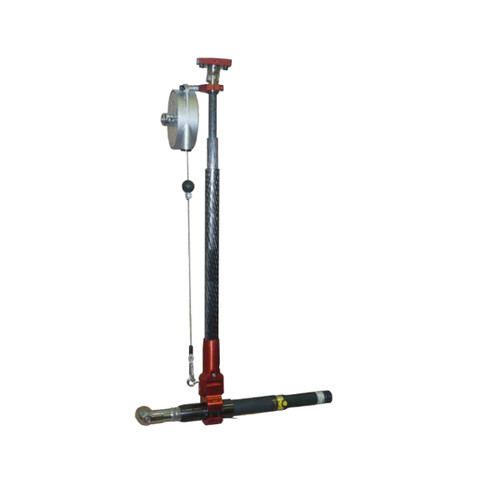

EZ-Glider Inverted Telescoping Torque Arms
The EZ-Glider inverted telescoping torque arms securely keep electric or pneumatic torque tools in perpendicular or a level alignment to help prevent side loading or cross threading occurring during the assembly process. Crafted with lightweight durable carbon fiber the torque arm collapses like a telescope. The torque arms are ideal for assembly lines like automotive, aerospace and appliance where space is a premium and operator safety is mandatory. The ergonomic design of the EZ-Glider torque arms reduces RMI (repetitive motion injury) and CTS (carpal tunnel syndrome). The effortless handling of the torque arm provides comfortable tool operation and increased production. The flexible telescoping arms provide manufacturers the ability to mount the arms to a wall, workbench, a standard rail system, aluminum extrusion or existing overhead system. The torque arms are maintenance free.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Max Torque Range – Metric | Torque Units – Metric | Clamp Diameter | Arm Reach At Inclination 0 | Arm Reach At Inclination 22.5 | Arm Reach At Inclination 45 | Tool Height (IN) | Balance Weight Capacity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EZ-12R | 260081 | 8.8 | lbf.ft | 12 | N.m | 1.2 | kgf.m | 1 – 1 1/2″ | 15 1/8″ – 21″ | 14 1/2″ – 20″ | 12 1/3″ – 18″ | 32.5 | 1.1 – 2.6 lbs |
 |
EZ-25R | 260082 | 18.4 | lbf.ft | 25 | N.m | 2.6 | kgf.m | 1 – 2″ | 15 1/8″ – 21 1/2″ | 15″ – 20 1/2″ | 12 7/8″ – 18 1/2″ | 36.5 | 2.2 – 4.8 lbs |
|
EZ-40R | 260083 | 29.5 | lbf.ft | 40 | N.m | 4.1 | kgf.m | 1 – 2″ | 22 1/4″ – 30″ | 21 1/8″ – 29″ | 18 1/8″ – 26″ | 40.5 | 3.1 – 4.8 lbs |
|
EZ-100R | 260084 | 73.7 | lbf.ft | 100 | N.m | 10.2 | kgf.m | 1 – 2″ | 26 1/3″ – 34″ | 25 1/8″ – 33″ | 22″ – 29 1/2″ | 40.5 | 4.4 – 7.7 lbs |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Prevents cross threading and side load. Keeps tool perpendicular.
- Reduces RMI (Repetitive Motion Injury) and CTS (Carpal Tunnel Syndrome) while boosting production.
- With the ability to bend like an elbow, the torque arm provides agility to position the tool in a variety of positions for different applications. Arm can be set at an inclination of 0º, 22.5º & 45º.
- Provides smooth flexible range as the arm absorbs torque reactions from electric & air screwdrivers, angle nut runners, pulse tools, pistol grip tools, grinders and drills.
- Arm length is adjustable.
- Includes an in-line driver clamp.
- Versatile torque arm works with a variety of tools, using different tool clamp options: angle drivers, pistol grip drivers, & in-line drivers.
