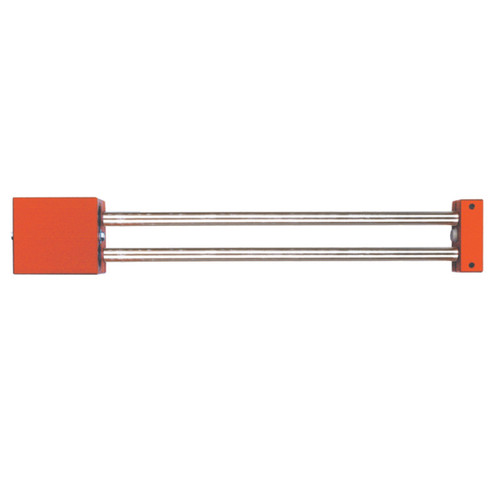

Extension Double Slides
Expands the maximum arm reach of the EZ-Glider Linear Torque Arms by adding a second slide system to the arm.
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Max Torque Range – American | Torque Units – American | Max Torque Range – S.I. | Torque Units – S.I. | Max Torque Range – Metric | Torque Units – Metric | Clamp Diameter | Minimum Arm Reach | Maximum Arm Reach | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EZ-30T APC | 260212 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 18.7″ | 37.5″ |
|
EZ-30T/1500 APC | 260213 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 25.8″ | 59″ |
|
EZ-30T/2000 APC | 260214 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 32.4″ | 78.7″ |
|
EZ-80T/1500 APC | 260215 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 28.1″ | 59″ |
|
EZ-80T/2000 APC | 260216 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 34.6″ | 78.7″ |
|
EZ-140T/1500 APC | 260217 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 36.5″ | 59″ |
|
EZ-140T/2000 APC | 260218 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 46.4″ | 78.7″ |
|
EZ-30T LPC | 260219 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 18.7″ | 37.5″ |
|
EZ-30T/1500 LPC | 260220 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 25.8″ | 59″ |
|
EZ-30T/2000 LPC | 260221 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 32.4″ | 78.7″ |
|
EZ-80T/1500 LPC | 260222 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 28.1″ | 59″ |
|
EZ-80T/2000 LPC | 260223 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 34.6″ | 78.7″ |
|
EZ-140T/1500 LPC | 260224 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 36.5″ | 59″ |
|
EZ-140T/2000 LPC | 260225 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 46.4″ | 78.7″ |
|
EZ-30T LAPC | 260226 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 18.7″ | 37.5″ |
|
EZ-30T/1500 LAPC | 260227 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 25.8″ | 59″ |
|
EZ-30T/2000 LAPC | 260228 | 22.1 | lbf.ft | 30 | N.m | 3.1 | kgf.m | 1 – 2″ | 32.4″ | 78.7″ |
|
EZ-80T/1500 LAPC | 260229 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 28.1″ | 59″ |
|
EZ-80T/2000 LAPC | 260230 | 59 | lbf.ft | 80 | N.m | 8.2 | kgf.m | 1 – 2″ | 34.6″ | 78.7″ |
|
EZ-140T/1500 LAPC | 260231 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 36.5″ | 59″ |
|
EZ-140T/2000 LAPC | 260232 | 103.3 | lbf.ft | 140 | N.m | 14.3 | kgf.m | 1 1/4 – 2″ | 46.4″ | 78.7″ |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
- Secure the assembly process by ensuring that every screw is in the correct location at the right torque
- Programmable sequence operation.
- Error proofing.
- Detects – cross threading, omissions, unfinished rundowns and cycle complete.
- Compatible with DC Controlled Tools, torque electric screwdrivers (with transformers or controllers), air tools (ported).
- Password protection and wall mountable.
- Can interface with most intelligent driver systems that store multiple torque programs and has external digital I/O control.
- Eliminates torque reaction of power tools. Can be used with a variety assembly tools.
- Quick and easy to setup. Self teaching and automation program mode.
- Programmable: Positioning Tolerance, Min. and Max. time for Poka Yoke control (automatic or manual) and 99 memory points.
- Crafted with lightweight durable carbon fiber the arm collapses like a telescope.
- Easy-to-use, requires little space and doesn’t disrupt production flow.
- The effortless handling of the torque arm provides comfortable tool operation and increased production.
- Mountable and easy to install on a wall, workbench and a standard rail or trolley system.
- Maintenance free.
- Long arm reach capability up to 6 1/2 ft.
- Operates with touch posi-control device.
- Torque Arm is available in 3 options: APC model – Equipped with one angle coder. LPC model – Equipped with one cable length coder. LAPC model – Equipped with one cable length coder & one angle coder.
