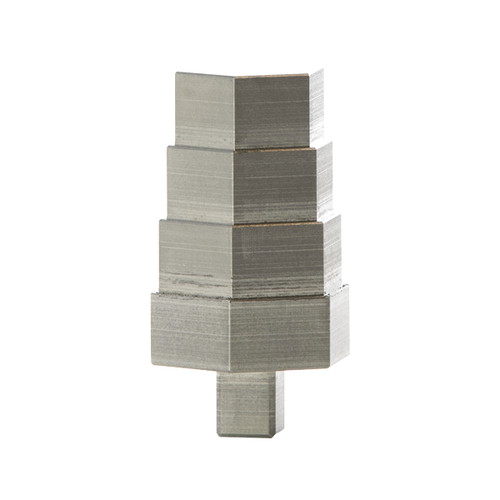

Calibration Hex Step Adapters
- Description
Description
CHOOSE THE MODEL BELOW
| Model | Item Name / Number | Dimension A | Dimension B | Dimension C | Dimension D | Maximum Torque Range | Torque Units | |
|---|---|---|---|---|---|---|---|---|
 |
1/4″ Hex Step Adapter (3/4, 11/16, 5/8 & 9/16) | 061500 | 3/4″ | 11/16″ | 5/8″ | 9/16″ | 30 | N.m |
 |
1/4″ Hex Step Adapter (5/16, 3/8, 7/16 & 1/2) | 061501 | 1/2″ | 7/16″ | 3/8″ | 5/16″ | 30 | N.m |
|
1/4″ Hex Step Adapter (1/2, 3/8, 1/4 & 1/8) | 061527 | 1/2″ | 3/8″ | 1/4″ | 1/8″ | 30 | N.m |
 |
1/4″ Hex Step Adapter (1/4, 7/32, 3/16 & 5/32) | 061630 | 1/4″ | 7/32″ | 3/16″ | 5/32″ | 30 | N.m |
|
1/4″ Hex Step Adapter (1/4, 7/32, 3/16, 1/8) | 061502 | 1/4″ | 7/32″ | 3/16″ | 1/8″ | 30 | N.m |
 |
1/4″ Hex Step Adapter (19, 17, 16 & 14mm) | 061503 | 19 mm | 17 mm | 16 mm | 14 mm | 30 | N.m |
 |
1/4″ Hex Step Adapter (13, 12, 11 & 10mm) | 061504 | 13 mm | 12 mm | 11 mm | 10 mm | 30 | N.m |
|
1/4″ Hex Step Adapter (9, 8, 7 & 6mm) | 061505 | 9 mm | 8 mm | 7 mm | 6 mm | 30 | N.m |
 |
1/4″ Hex Step Adapter (9, 7, 5 & 3mm) | 061529 | 9 mm | 7 mm | 5 mm | 3 mm | 30 | N.m |
 |
1/4″ Hex Step Adapter (8, 6, 4 & 2mm) | 061528 | 8 mm | 6 mm | 4 mm | 2 mm | 30 | N.m |
|
1/4″ Hex Step Adapter (5.5, 5, 4.5 & 4mm) | 061506 | 5.5 mm | 5 mm | 4.5 mm | 4 mm | 30 | N.m |
 |
1/4″ Hex Step Adapter (22, 20, 18mm) | 061427 | 22 | 20 | 18 | – | 30 | N.m |
 |
3/8″ Hex Step Adapter (1 1/4, 1 1/8, 1 1/16 & 1″) | 061559 | 1 1/4″ | 1 1/8″ | 1 1/16″ | 1″ | 135 | N.m |
|
3/8″ Hex Step Adapter (1, 7/8, 3/4 & 5/8) | 061537 | 1″ | 7/8″ | 3/4″ | 5/8″ | 135 | N.m |
 |
3/8″ Hex Step Adapter (3/4, 11/16, 5/8 & 9/16) | 061524 | 3/4″ | 11/16″ | 5/8″ | 9/16″ | 135 | N.m |
|
3/8″ Hex Step Adapter (9/16, 7/16, 5/16 & 3/16) | 061531 | 9/16″ | 7/16″ | 5/16″ | 3/16″ | 135 | N.m |
|
3/8″ Hex Step Adapter (1/2, 7/16, 3/8 & 5/16) | 061525 | 1/2″ | 7/16″ | 3/8″ | 5/16″ | 135 | N.m |
|
3/8″ Hex Step Adapter (1/4, 7/32, 3/16 & 1/8) | 061530 | 1/4″ | 7/32″ | 3/16″ | 1/8″ | 135 | N.m |
 |
3/8″ Hex Step Adapter (19, 17, 16 & 14mm) | 061543 | 19 mm | 17 mm | 16 mm | 14 mm | 135 | N.m |
 |
3/8″ Hex Step Adapter (17, 15, 13 & 11mm) | 061542 | 17 mm | 15 mm | 13 mm | 11 mm | 135 | N.m |
 |
3/8″ Hex Step Adapter (16, 14, 12 & 10mm) | 061541 | 16 mm | 14 mm | 12 mm | 10 mm | 135 | N.m |
 |
3/8″ Hex Step Adapter (13,12, 11,10mm) | 061540 | 13 mm | 12 mm | 11 mm | 10mm | 135 | N.m |
|
3/8″ Hex Step Adapter (9, 8, 7 & 6mm) | 061539 | 9 mm | 8 mm | 7 mm | 6 mm | 135 | N.m |
|
3/8″ Hex Step Adapter (5.5, 5, 4.5 & 4mm) | 061538 | 5.5 mm | 5 mm | 4.5 mm | 4 mm | 135 | N.m |
CHOOSE THE MODEL BELOW
| Model: | Socket Head Power Bits 1/20 x 2″ |
| Item Name / Number: | 121039 |
| Bit Hex Size: | 1/20″ |
| Bit Length(IN): | 2″ |
| Package Quantity |
-
- Effortlessly perform a torque wrench calibration with a mechanical torque wrench loader
- The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors
- The loading bench is a laboratory-grade instrument designed to allow accurate torque wrench calibration with less physical effort
- A large wheel for smooth manual loading.
- The ability to mount on a bench or cabinet
- Adjustability to the size of the wrench being tested. Operational in both clockwise and counter-clockwise directions
- Easy to use with the BMX torque sensor and an LTT or PTT torque analyzer.
Enhance your torque calibration setup with these compatible accessories designed to improve efficiency and accuracy:
BMX Torque Sensors
Precision sensors engineered to measure torque accurately across a wide range of applications. Compatible with the loading benches to provide real-time torque data during calibration.
PTT Torque Analyzer
Portable and easy-to-use analyzer designed for on-the-go torque testing and calibration. Seamlessly integrates with BMX sensors and the loading bench for complete system functionality.
LTT Torque Analyzer
Advanced laboratory-grade torque analyzer offering comprehensive calibration, verification, and data logging capabilities. Ideal for professional calibration labs paired with the loading bench.
Calibration Cables and Connectors
Mountz high-quality cables that connect the BMX to the PTT or LTT analyzer for high resolution readings.
