Yellow HZR-171 Wrist Strap Tester Portable Electrostatic Tester For Wrist Strap Tester In Electronic Factories
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | – |
| Model Number: | HZR-171 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1 PC/OPP Bag |
| Delivery Time: | 25-40 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 kg per month |
- Description
Description
Detailed Product Description

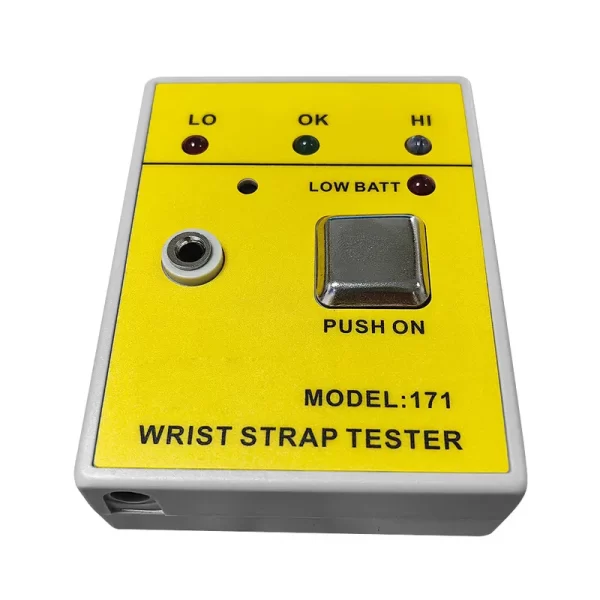

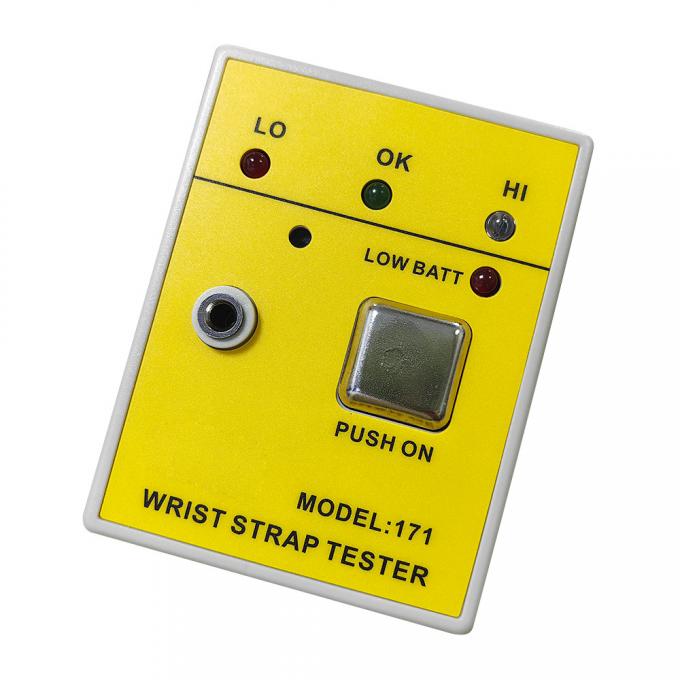

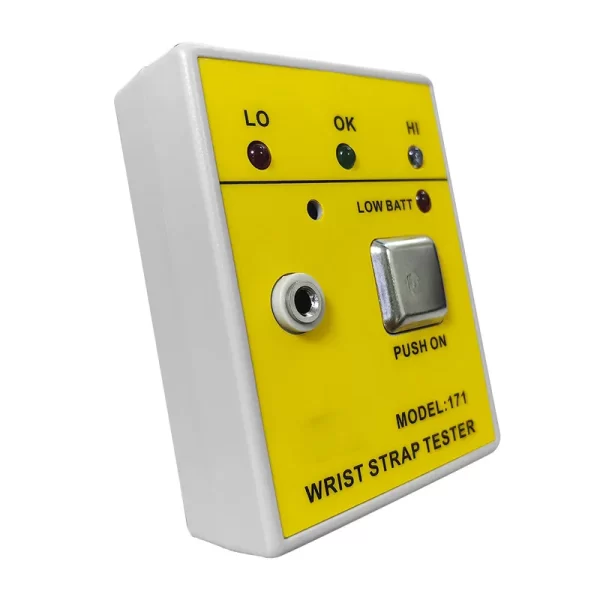

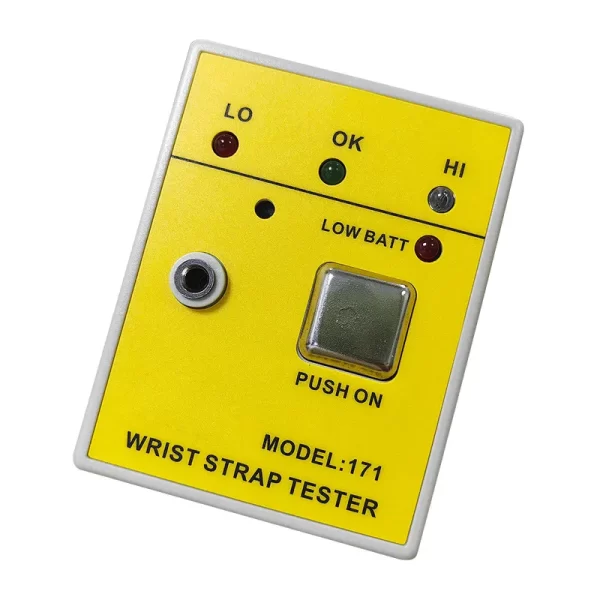

ellow HZR-171 Wrist Strap Tester Portable Electrostatic Tester for Wrist Strap Tester in Electronic Factories
Description:
This wrist strap tester is a complete human body grounding system. When the wrist strap is still on the operator’s bracelet, the meter will check its connectivity. Red LED and sound alarm display error connection (fail HI), red LED and sound alarm display low resistance (fail LO). Green
LED displays correct grounding (OK). Test parameters are factory set to 800k-10m, which can be adjusted according to user requirements.
This instrument is equipped with a 9V battery to detect the continuous path between the operator, wrist strap and grounding wire. The test voltage is 9V DC. The design of this instrument is perfect and harmless to human body.
Wrist strap 10M Ω
LED indicates resistance value (+5%)

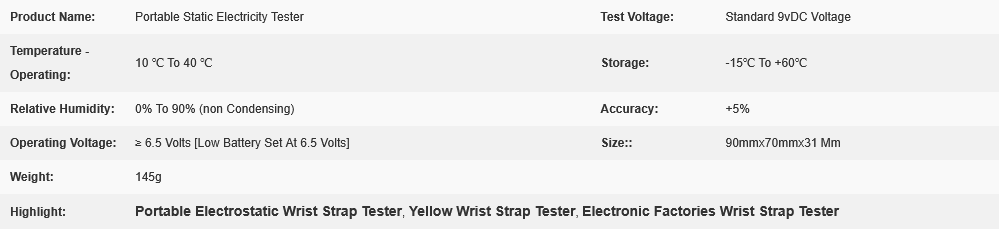

| Model | HZR-171 |
| LED indicates resistance value (+5%) | OK(GREEN) 800KΩ≈10MΩ OFF HI(RED) 10MΩ above ON LO(RED) 800KΩ below ON |
| Test voltage | 10 ℃ to 40 ℃ |
| Storage | -15℃ to +60℃ |
| Relative humidity | 0% to 90% (non condensing) |
| Instrument weight | 0 ° C~50c/32~122 ° F |
| Accuracy | +5% |
| Weight | 145g |
| Operating voltage | ≥ 6.5 volts [Low battery set at 6.5 volts] |
| Feature | Low battery display |
Operation steps:
1. when wearing the wrist strap, insert the banana plug into the connection and empty it.
2. press the metal test button gently, and the instrument can be used.
3. the green “OK” LED shows that the wrist strap, grounding wire and other accessories are working normally.
4. if the red light “fail Lo” or yellow light “fail Hi” led and alarm sound are on, the operator should immediately check the wrist strap.
