Wired ESD Scanner ESD Office Supplies Static Dissipative Support 1D 2D
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | DP0102 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1pcs/gift box |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5,000pcs per month |
- Description
Description
Detailed Product Description

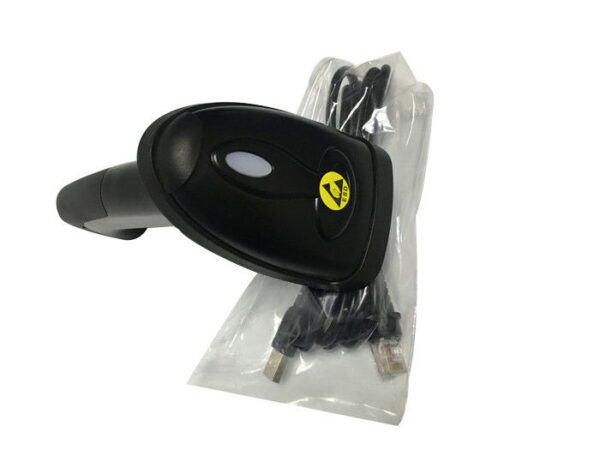

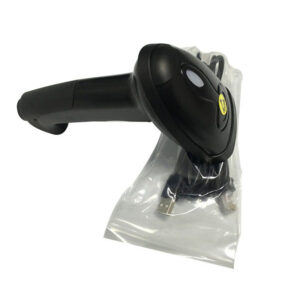

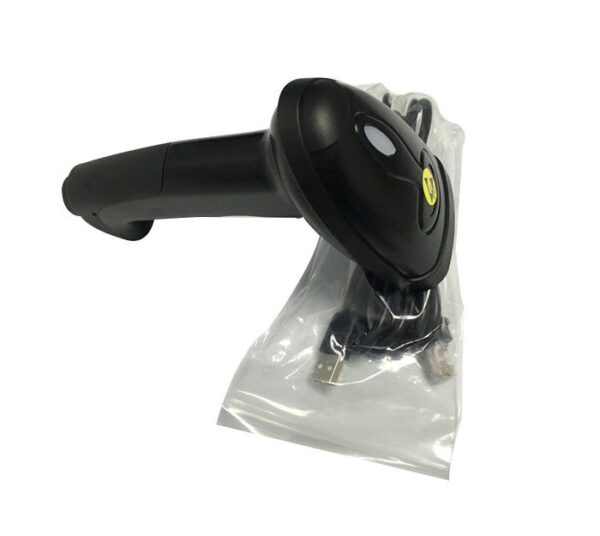

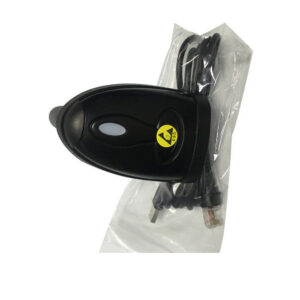

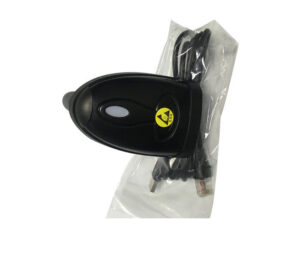

Wired ESD Scanner ESD Office Supplies Static Dissipative Support 1D 2D
Description
1, It’s constructed of conductive ABS+PC, permanently static dissipative
2, Supports 1D, 2D barcodes, including DataMatrix (ECC 200)
3, Ergonomic design for maximum user comfort
4, Multiple scanning modes
5, Designed to withstand 1.2m drops to concrete
More Details as below

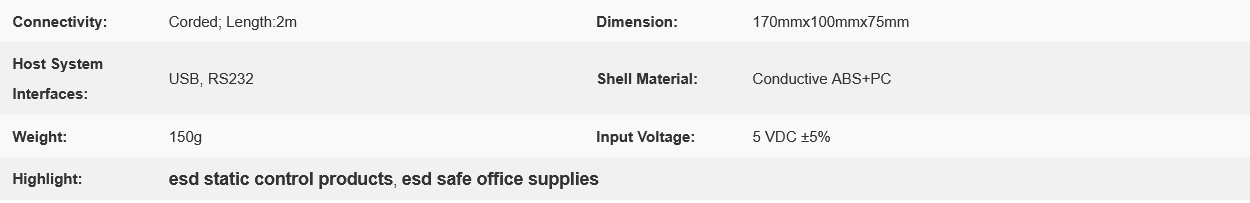

| Light source | Visible red light 630nm+10nm | Motion Tolerance: | Up to 25 cm/s |
| Weight | 150g | Scanning angle | 47°± 3° (typical), 35°± 3° (narrow) |
| Input Voltage | 5 VDC ±5% | Communication | USB, RS232 |
| Max. Resolution | 640 (Horizontal) x 480 (Vertical),256 gray levels | Mechanical Shock | 1.2m drops onto concrete |
| Operating Temperature | -20°C to 60°C (-4°F to 144°F) | Cord Length | 2m |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) | Ext.Dimension | 170x100x75mm |
Barcodes supported
1D: UPC/EAN and with supplemental, Code 39, Full ASCII Code39, Tri-optic Code 39, RSSvariants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar(NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Code11, IATA, Bookland EAN, Code 32, PDF417 (and Variants): PDF417, microPDF417 and composite codes, Postal: PRC, U.K., Japan, Australian, Dutch and U.S. Postnet and US Planet
2D: Datamatrix(ECC 200), MaxiCode, or Code
