Static Dissipative ESD Safe Materials Vinyl ESD Floor Mat Smooth Or Textured Surface
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | EM0101 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/box, export pallet |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50,000rolls per month |
- Description
Description
Detailed Product Description
Static Dissipative ESD Safe Materials Vinyl ESD Floor Mat Smooth Or Textured Surface
Sulphur easily reacts with other substances to cause decoloring of the products and bring harm to huaman body. Our Dissipative Table Mat/Floor Mat does not contain sulphur.

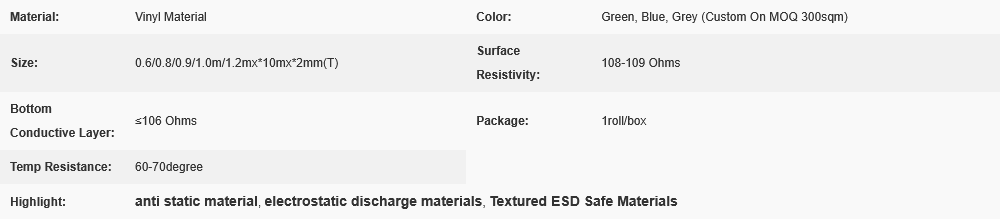

Normal size(roll): 1.0mx*10mx*2mm(T); 1.2mx*10mx*2mm(T)
Features:
1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor
2, Two layers contruction proportion 1:1
Top Static Dissipation Layer (Color: Green/Blue/Grey options)
Bottom Conductive Layer (Color: Black)
3, Some of the Characteristics are as follows:
| Dissipative Table Mat/Floor Mat | Specification | Color | ||

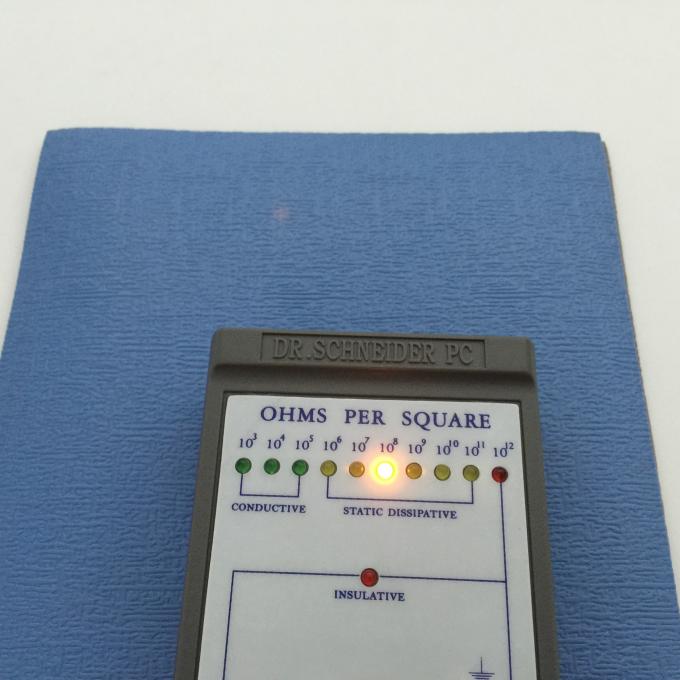

| Static Dissipation layer | Surface resistance | 108-109 |
1.2mx*10mx*2mm(T) 1.0mx*10mx*2mm(T) |
Blue, Grey, Green |
| Friction static potential V | ＜100 | |||
| Conductive layer (black bottom) | Surface resistance | ≤106 | ||
| Friction static potential V | ＜60 | |||
| Static voltage attenuation period | 5000 – 500V | ＜1.9s | ||
| Flame retardation | GB4609-84, FV-0 (less than 10S) | |||
| Volume resistance | 107-1010Ωcm | |||
| Physical performance index of Dissipative Table/Floor Mat | ||||
| No. | Description | Test reference | Results | |
| 1 | Tensile strength | GB 1040 | 3.6Mpa | |
| 2 | Fracture elongation | GB 1040 | 188% | |
| 3 | Tear elongation | GB/T 529 | 20.6KN/m | |
| 4 | Rebound elasticity (the specimen is laminated with 6 layers of sheets) | GB/T 1681 | 14% | |
| 5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage | |
| at -25℃ | ||||
| 6 | Permanent compression change rate, 70℃*22h, compression 25% | GB 10654 | 17.90% | |
| 7 |
Hot air ageing |
Tensile strength change rate |
GB/T 7141 |
8.00% |
| Fracture elongation change rate | -3.80% | |||
| Weight loss on heating | 1.08% | |||
| Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141. | |||
About Temp Resistance
| Item | Permanent /degree | Flash /degree |
| ESD Rubber Mat | 160 | 300 |
| ESD Vinyl Mat | 70 | 120 |
