Static Dissipative ESD Jackets 2.5mm Grid White And Blue For EPA Clean Room
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | AG0802 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1set/opp bag |
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50,000 sets per month |
- Description
Description
Detailed Product Description

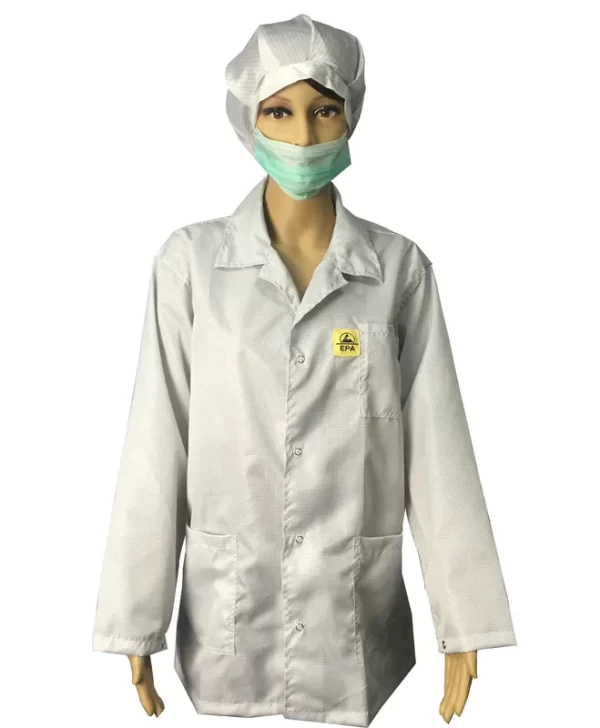

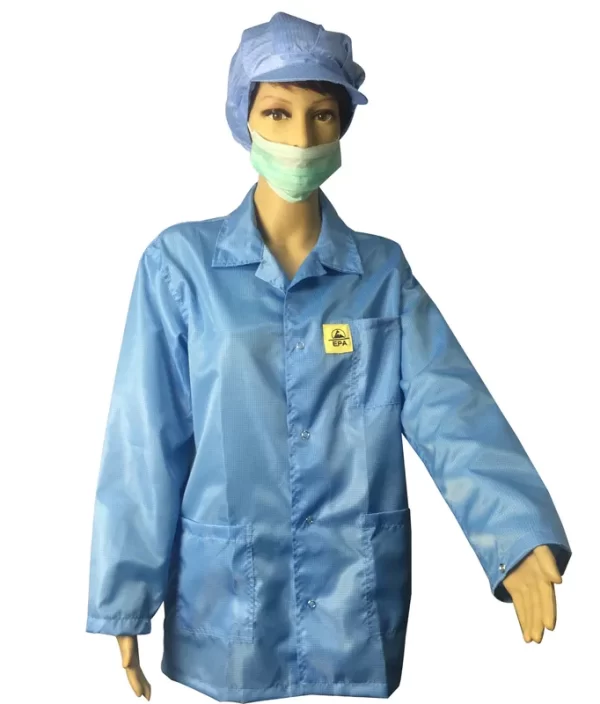

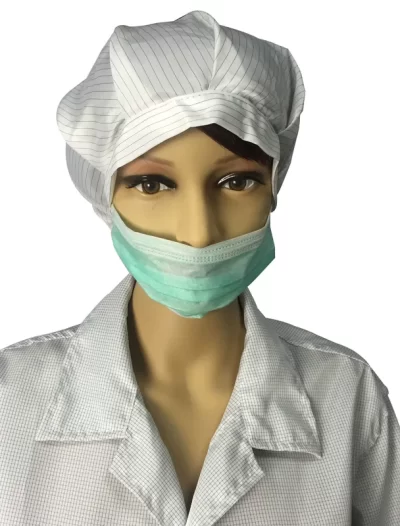

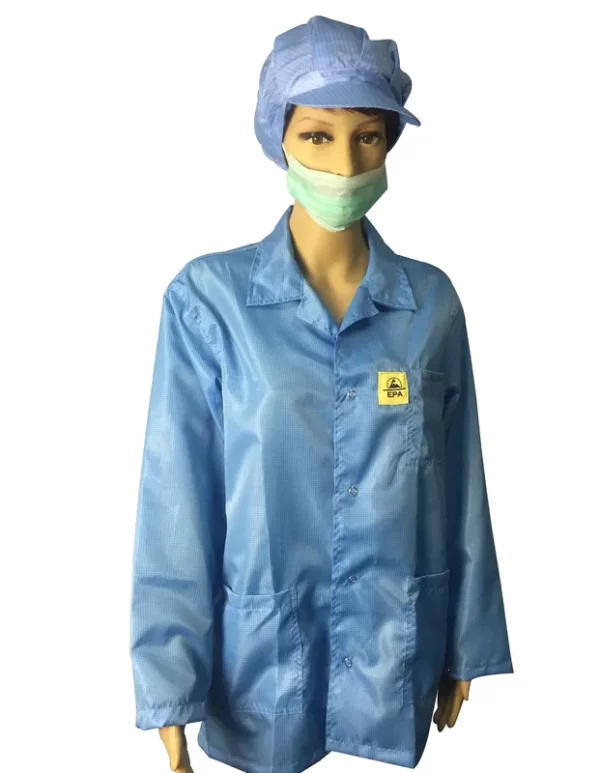

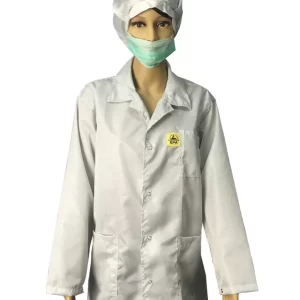

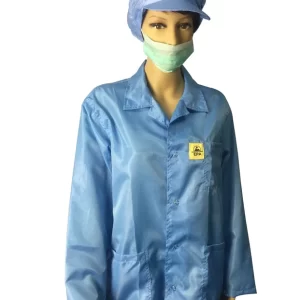

Static Dissipative ESD Jackets 2.5mm Grid White And Blue For EPA Clean Room
ESD-Safe Lightweight Lab Coat: AG0802
Description: It is made of ESD static dissipative materials. This fabric could be Polyester / Cotton / TC / CVC material with carbon filament. It does not come from any spray-on application.
Applications: ESD protection in clean rooms, work wear
Features:
1) It is designed to dissipate a charge to that person’s skin and then to ground
2) It is constructed of a lightweight dissipative material which made from woven polyester and a minimum of 2% carbon conductive filament.
3) It has a traditional style collar and lapels, front snap closure, and snaps on sleeves to adjust the fit for different size wrists.
4) They also have one chest pocket, one badge holder tab, two hip pockets and one sleeve pen pockets.
5) It offers good resistance to static, chemicals and abrasion. It is designed for Class 1000-10000 cleanrooms and higher.
6) And it is applicable in Semiconductor assembling line, Laboratory, PCB products and etc.
7) Meets ESD standards, system resistance 106-109ohms
8) Autoclavable at 121 degrees if adopts fabric with suitable carbon filaments

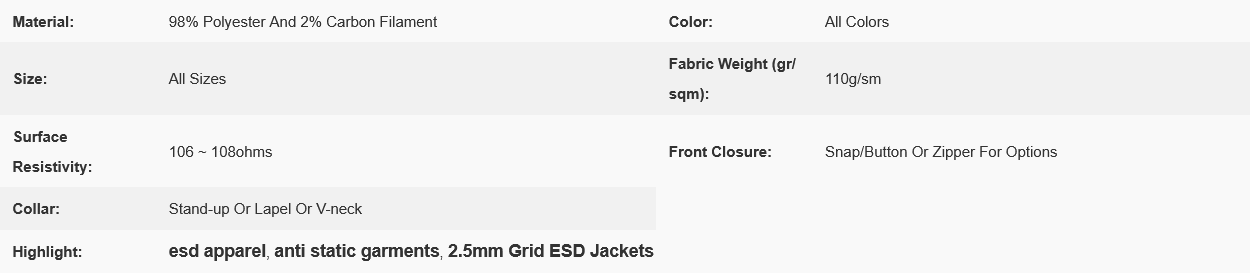

Specifications:
| Spec | Value | Test Method |
|---|---|---|
| Fabric Material | Polyester / Cotton / TC / CVC and Carbon Filaments for options. | |
| Available Colors | All colors | |
| Available Size | All sizes (below size chart for example) | |
| Surface Resistivity (ohm/unit) | 106 ~ 108 | |
| Recommended Class Of Cleanroom | Class 100~1000 |
| ESD Jacket Size Chart/Unit: cm | ||||
| Size | Total Length | Sleeve Length | Across Chest | Suitable Height |
| S | 66 | 66 | 106 | 155-160 |
| M | 68 | 69 | 110 | 160-165 |
| L | 71 | 72 | 114 | 165-170 |
| XL | 73 | 75 | 117 | 170-175 |
| XXL | 76 | 78 | 120 | 175-180 |
| XXXL | 78 | 81 | 123 | 180-185 |
| XXXXL | 81 | 84 | 126 | 185-190 |
| XXXXXL | 83 | 87 | 129 | 190-195 |
Highlights
More Shooting Photos
Hip Pockets
Badge Holder Tab & Breast Pocket
Snap Cuffs
ESD Symbol
