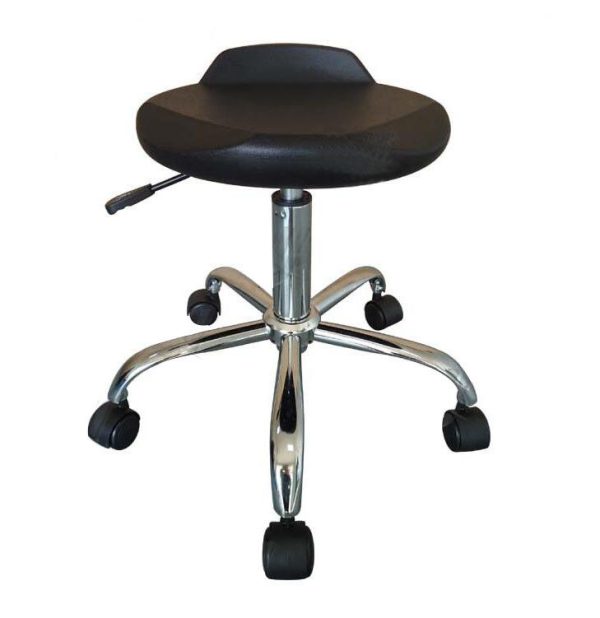

Static Control ESD Safe Chairs w/Short Backrest Puncture Resistant Surface Color Black
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS/CTI |
| Model Number: | AC2810 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | mixed package or custom 1 set/box |
| Delivery Time: | – |
| Payment Terms: | T/T |
| Supply Ability: | ~10,000 sets per month |
- Description
Description
Detailed Product Description
Static Control ESD Safe Chairs w/Short Backrest Puncture Resistant Surface Color Black
Static Control Polyurethane Stool: AC2810
Description:
1, It is constructed of antistatic polyurethane seat that is impervious to water, oil, and most chemicals, with a comfortable, durable 13.7in. diameter seat.
2, Easy-to-use pneumatic height adjustment that allows for stress-free seat height changes
3, Esd grounding resistivity up to 109ohms.
Features:
1) Puncture resistant and easy to clean surface
2) Conductive metal chain acts as ground.
3) Adjustable height range from 440-590mm and 360° swivel
4) Cleanroom Class 100-1000 certified.
5) ESD grounding resistivity range from 107 to 109 ohms
6) 5 star chrome conical foot, Radius 260 or 320mm
7) PA nylon glides, optional castors (If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge)
8) Warranty: 1Year
9) Pacakge: partially assembled
Technical Spec
| Spec | Value | Test Method |
|---|---|---|
| Material | Polyurethane | |
| Design | Round surface with Short Backrest | |
| Seat Size | Dia.350mm | |
| Thickness | 40-50mm | |
| Standard Color | Black | |
| Back Tilt | Not available | |
| Seat Tilt | Not available | |
| Gas Lift | Yes | |
| Seat Height Adjustment | 440-590mm | |
| Base | 5-Star Chromed Foot | |
| Footring (Optional) | 400mm diameter adjustable chrome footring | |
| Glides/Castors | ESD or Non-ESD for options |
Parts List:
- Seat w/control Mechanism Q’ty 1pcs
- Chromed Five Star Base Q’ty 1pcs
- Pnuematic Cylinder Q’ty 1pcs
- Glides/Casters Q’ty 5pcs
- Footring (optional) Q’ty 1pcs
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring (if enclosed) onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
Applications
Widely used in EPA / Clean room environment

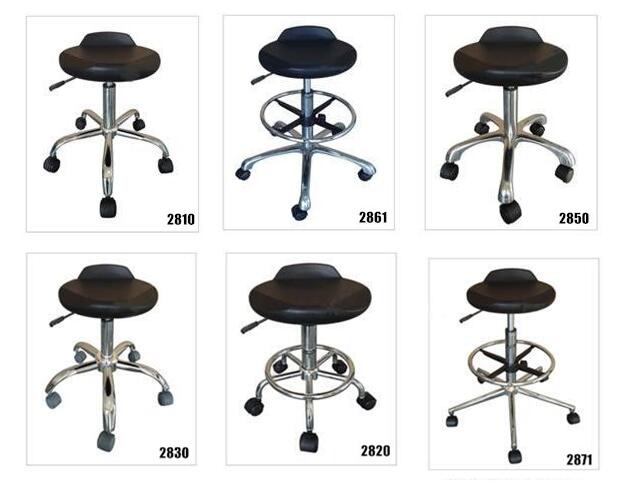

More Styles
