Pneumatic Rotatable ESD Task Chair Polyurethane Stool w/Handle Hole 40mm Thickness
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS/CTI |
| Model Number: | AC2370 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | mixed package or custom 1 set/box |
| Delivery Time: | – |
| Payment Terms: | T/T |
| Supply Ability: | ~10,000 sets per month |
- Description
Description
Detailed Product Description
Pneumatic Rotatable ESD Task Chair Polyurethane Stool w/Handle Hole 40mm Thickness
Polyurethane ESD Stool: AC2370
Description: It is made of polyurethane seat, with esd grounding resistivity up to 109ohms.
Features:
1) Conductive metal chain acts as ground.
2) Adjustable height and optional chrome foot ring
3) Cleanroom Class 100-1000 certified.
4) ESD grounding resistivity range from 107 to 109 ohms
5) 5 star chrome conical foot, Radius 240 or 320mm
6) PA nylon glides, optional castors If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge
7) Resists stains, punctures and chemicals.
8) Height adjustable: 420-570mm
9) Warranty: 1Year
10) Pacakge: partially assembled

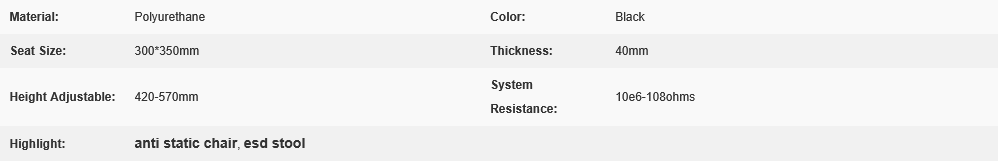

Technical Spec
| Spec | Value | Test Method |
|---|---|---|

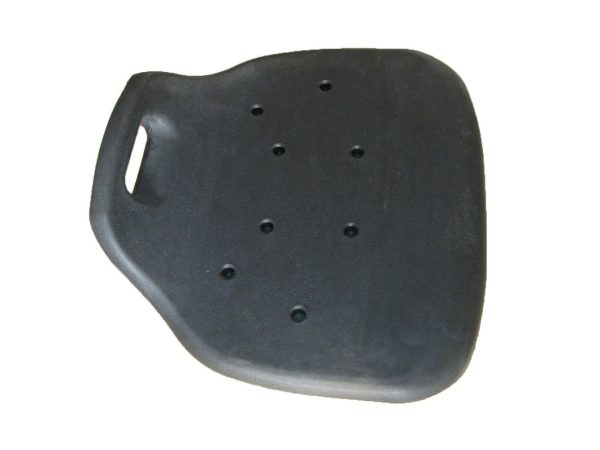

| Material | Polyurethane | |
| Seat Size | 300*350mm | |
| Thickness | 40mm | |
| Standard Color | Black | |
| Back Tilt | Not available | |
| Seat Tilt | Not available | |
| Gas Lift | Yes | |
| Seat Height Adjustment | 420-570mm | |
| Base | 5-Star Alluminium Alloy Foot | |
| Footring (Optional) | 400mm diameter adjustable chrome footring | |
| Glides/Castors | ESD or Non-ESD for options |
Parts List:

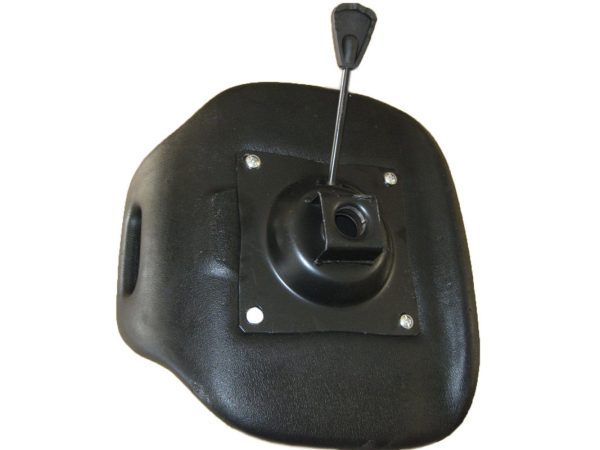

- Seat w/control Mechanism Q’ty 1pcs
- Alluminium Alloy Five Star Base Q’ty 1pcs
- Pnuematic Cylinder Q’ty 1pcs
- Glides/Casters Q’ty 5pcs
- Footring (optional) Q’ty 1pcs
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring (if enclosed) onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
Applications
Widely used in EPA / Clean room environment

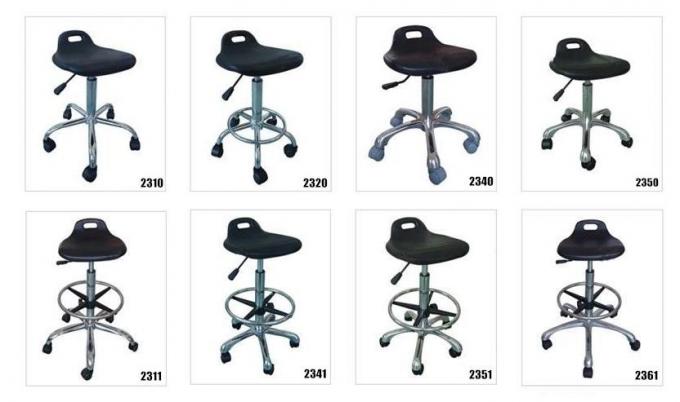

More Styles
