Plain 4mm Stripe 99% Polyester 1% Carbon Fiber Antistatic Fabric
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | AF0104 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/knitting bags |
| Delivery Time: | 15-25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1,500,000 meters per month |
- Description
Description
Detailed Product Description
ESD Clothing Plain 4mm Stripe 99%Polyester+1%Carbon Fiber Antistatic Fabric
Antistatic Fabric Description:

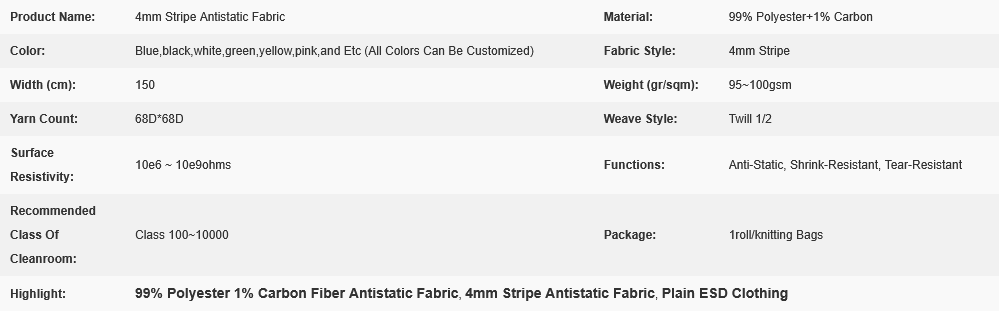

| Anti-static ESD Woven Polyester Fabric | |
| Material: | 99%Polyester+1%Carbon Fiber |
| Color: | Blue, White, Pink, Yellow, Green and etc / Customizable other colors |
| Use: | ESD protection in clean rooms, work wear |
| Carbon Configuration: | 4mm Stripe |
| Weight (gr/sqm): | 95~100gsm |

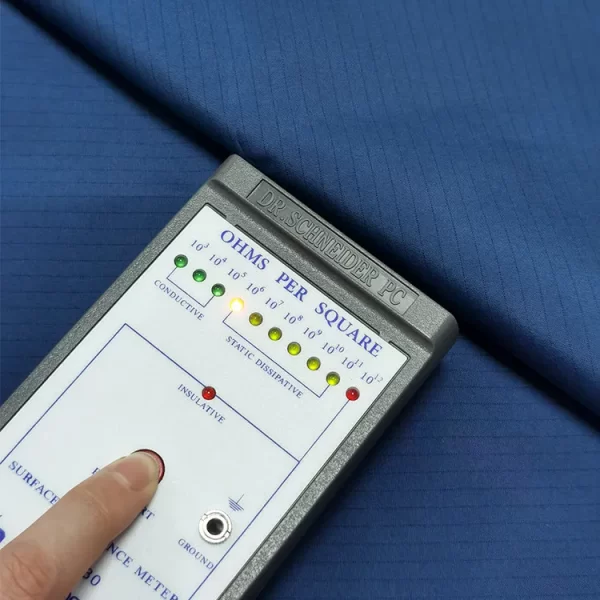

| Surface Resistivity (ohm/unit): | 10e8 ~ 10e9 |
| Functions | Anti-Static, Shrink-Resistant, Tear-Resistant |
| Friction charges (V): | <200 |
| Number of yarns (denier) | Warp100 Weft100 |
| Weave style: | 1/2 Twill |
| Air permeability (cc/cm²/sec): | 30 |
| Recommended Class Of Cleanroom: | Class 1000~10000 |
Anti-static Clothing Fabric Use:
For making antistaitc clothing, workwear, and other garment accessories, such as ESD bag, ESD cap, ESD Facemask, ESD Shoe cover and so on to protect sensitive components from harmful static charges.
Cleanroom ESD Fabric Features:
1) Antistatic fabric is also called “conductive silk”, and it adopts the special polyester filament and high quality conductive yarns
2) This fabric can be used for sewing kinds of antistatic functional garments, such as coverall, suit, jacket, caps, boots and etc.
3) Excellent conductivity and available in all colors, included sky blue,dark blue, pink, white, yellow, green and grey.
4) Anti-static fabric is designed for Class 1000 cleanrooms and higher.
5) Anti Static fabric has wide applications in electronics, medicals, biology, optics, spaceflight industries etc
6) ESD clothing fabric meets ESD standards, system resistance 106-109ohmsm
7) It is one of the most economic fabrics for static control and dust free solutions.
Recommended cleaning process for ESD garments:
The carbon filament nylon used in our garments is sensitive to heat, alkali, acids, softeners and bleach. In order to keep the ESD properties of the garments, please follow our recommended instructions:
*Wash in warm water, no more than 40 C(104 F) with liquid laundry detergent, i. e. liquid Tide, lemon liquid detergent, oxydol, and etc.
*In case of severe dirt or grease, stronger liquid detergents can be used if they do not contain any chlorine bleach.
*Do not bleach, do not use alkali, acid or fabric softeners. Do not dry clean.
*Usually no ironing will be needed, as a special additive is used during the finishing process of our woven fabrics. Nevertheless, the garments can be ironed at medium temperature.
