Dark Green 135 GSM Anti Static Fabric ESD Knitted Polyester 6mm Diamond Pattern
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS/COO |
| Model Number: | AF0633 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/knitting bags |
| Delivery Time: | 25-40 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 meters per month |
- Description
Description
Detailed Product Description

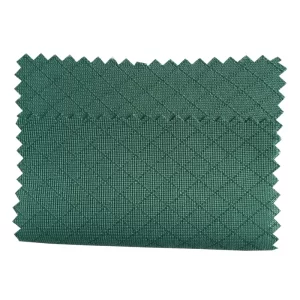

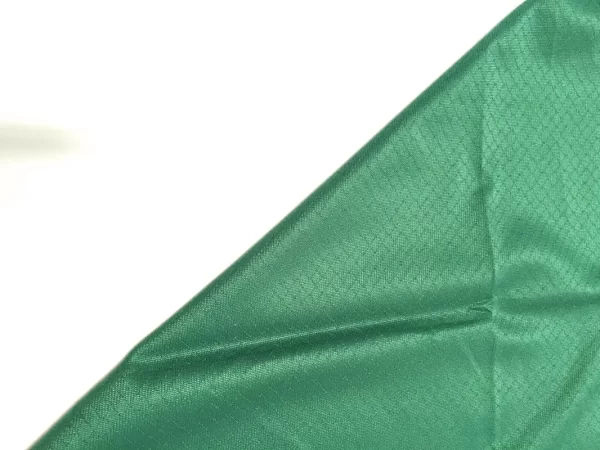

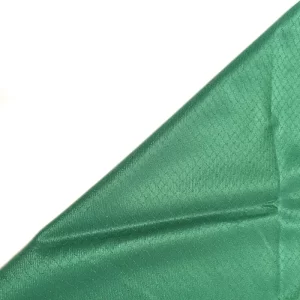

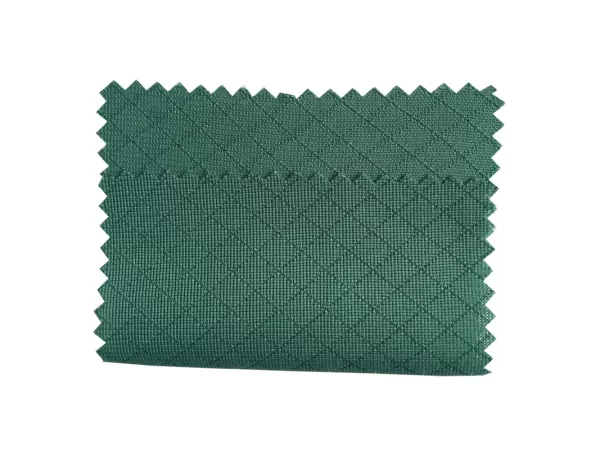

Dark Green 135 GSM Anti Static Fabric ESD Knitted Polyester 6mm Diamond Pattern
ESD Knitted Fabric 6mm Diamond Pattern: AF0633
Description: Anti-static ESD Knitted Polyester Fabric, 6mm Diamond
Applications: ESD protection in clean rooms, work wear
Features:
1) Durable and light weight, with good air permeability
2) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer extremely good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology, optics, spaceflight industries etc
3) Meets ESD standards, system resistance 106-107ohms

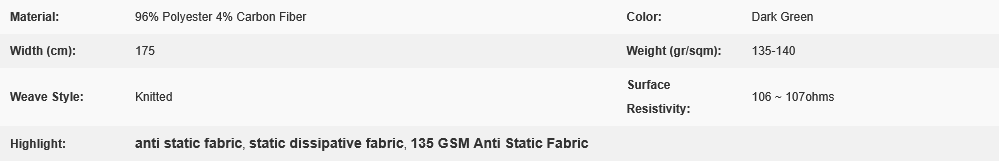

Specifications:
| Spec | Value | Test Method |
|---|---|---|
| Material | 96% Polyester 4% Carbon Fiber | |
| Available Colors | Dark Green (Any color if Custom) | |
| Carbon Configuration | Diamond 6mm | |
| Width (cm) | 175 | |
| Weight (gr/sqm) | 135-140gsm | |

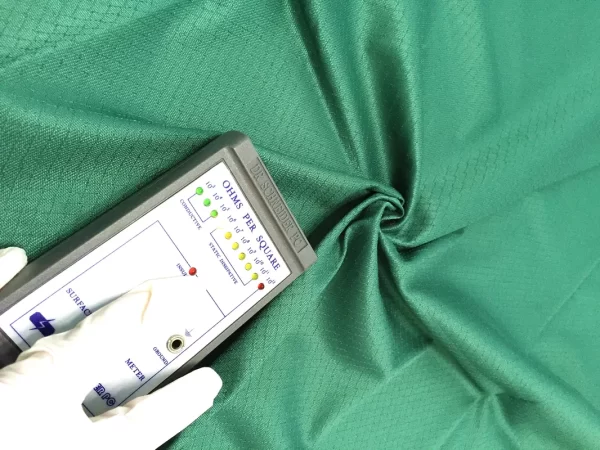

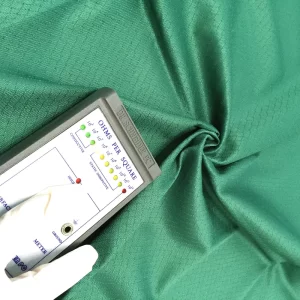

| Surface Resistivity (ohm/unit) | 106 ~ 107 | |
| Friction charges (V) | <150 | |
|
Number of yarns (denier) Warp Weft |
50DFDY*50DDTY |
|
| Weave style | Knitted | |
| Recommended Class Of Cleanroom | Class 100~1000 |
Our ESD Knitted Fabric Diamond Pattern Series
| Model | Spec | Yarn Count | Weight | Charge Density | Friction Voltage |
| AF0633 | Diamond 6mm | 50DFDY*50DDTY | 135-140gsm | 0.8uc/m | <200V |
| AF0632 | Diamond 5mm | 50DFDY*50DDTY | 135-140gsm | 0.8uc/m | <200V |
| AF0631 | Diamond 2.5mm | 50DFDY*50DDTY | 135-140gsm | 0.6uc/m | <150V |
