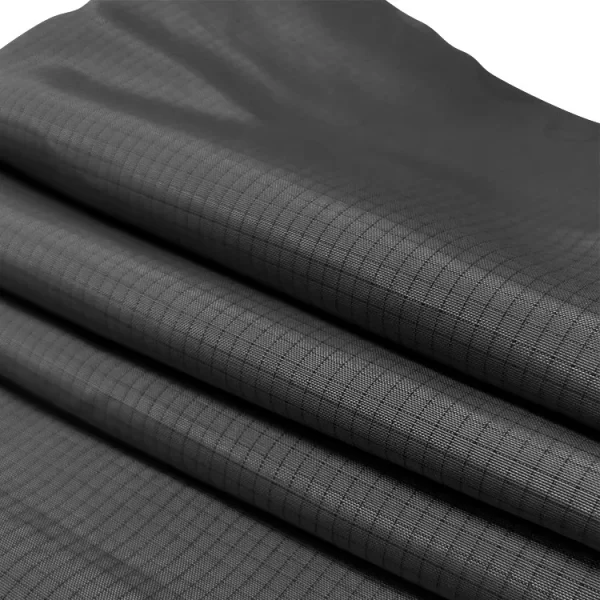

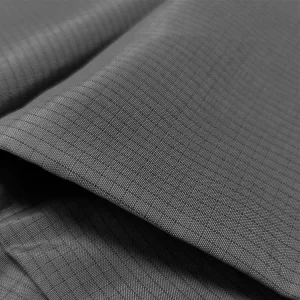

Black 4mm Grid 33% Cotton 2% Carbon Fiber Antistatic TC Fabric For ESD Working Clothes
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | AF0106BK |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/knitting bags |
| Delivery Time: | 25-40 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 kg per month |
- Description
Description
Detailed Product Description
Black 4mm Grid Conductive Wire Red Anti Static 65%Polyester 32%Cotton 2%Carbon TC Fiber Fabric
Description:

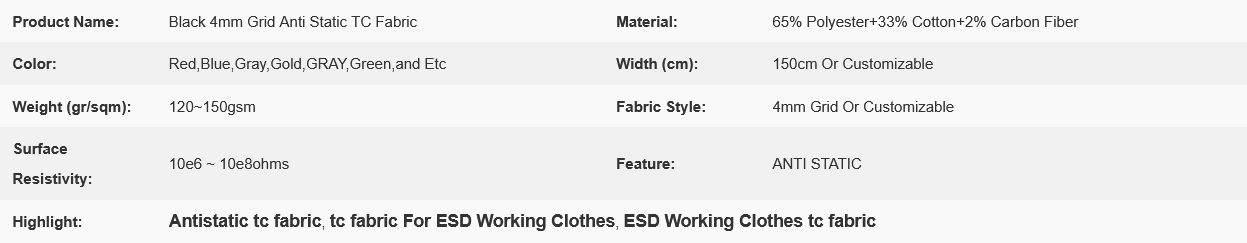

| 4mm Grid Anti Static TC Fabric | |
| Material: | 65%polyester 33%cotton 2% Carbon Fiber |
| Color: | Red,Blue,Gray,Gold,GRAY,Green,and etc |
| Use: | Making esd working clothes |
| Fabric Style: | 4mm Grid or custom 2.5/5mm stripe |
| Weight (gr/sqm): | 120~150gsm |

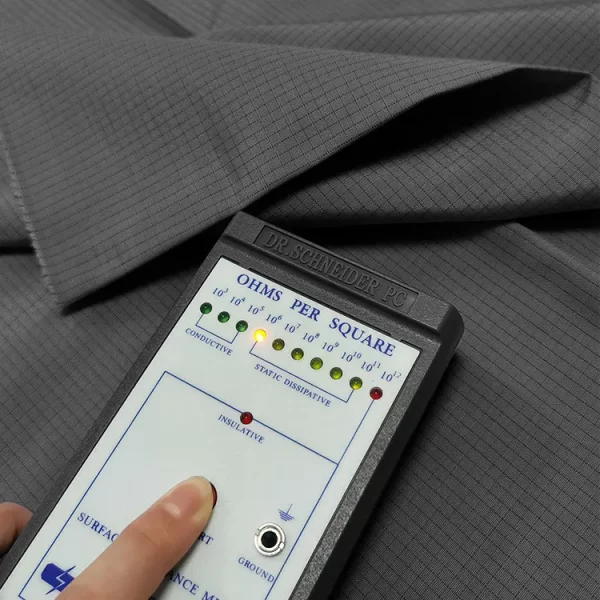

| Surface Resistivity (ohm/unit): | 10e6 ~ 10e8 ohm/unit |
| Friction charges (V): | <200V |
| Number of yarns (denier): Warp Weft |
100d |
| Weave style: | Twill 1/2 |
| Air permeability (cc/cm²/sec): | 30cc |
| Recommended Class Of Cleanroom: | Class 1000~10000 |
Overview of Electrostatics:
The primary source of static electricity in individuals is friction, particularly between clothing items or between clothing and the skin. Consequently, wearing garments composed of varying materials leads to differing levels of charge accumulation. For instance, synthetic fibers like those in chemical fiber clothing are prone to generating static electricity, whereas cotton fabrics produce significantly less. Furthermore, dry conditions facilitate the transfer and accumulation of charges, explaining why static electricity is more noticeable during winter.
In industrial settings, the production of static electricity is unavoidable and poses several risks:
Risks Associated with Electrostatic Discharge (ESD):
Electronic devices may malfunction or operate incorrectly, leading to electromagnetic interference.
Integrated circuits and delicate electronic components may sustain damage, accelerate aging, and decrease manufacturing yields.
High-voltage ESD can cause electric shocks, posing a threat to personal safety.
In environments with high concentrations of flammable materials, explosives, dust, or oil mist, static electricity can readily spark explosions and fires.
To mitigate these risks, industries such as petroleum, petrochemicals, gas stations, and electronics manufacturing, as well as workplaces with flammable and explosive hazards, must uniformly adopt workwear made from antistatic fabrics. These garments must adhere to stringent standards and performance criteria to effectively counteract static hazards and prevent workplace accidents.

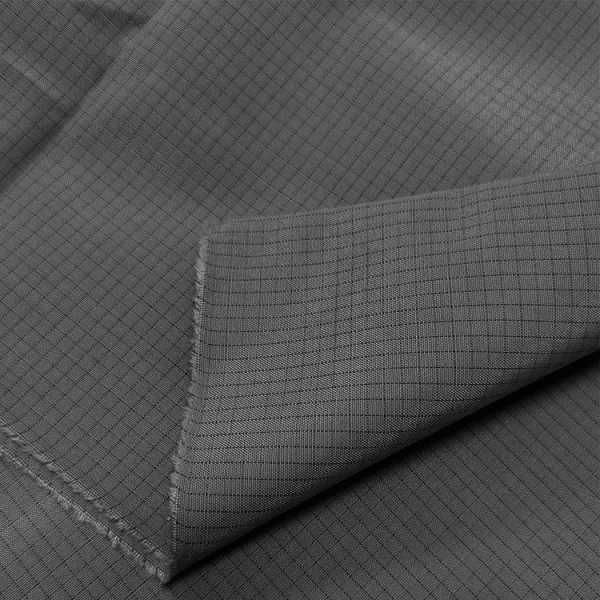

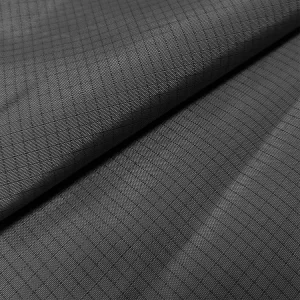

Cleanroom ESD Fabric More Picture:
