Back Rest ESD Cleanroom Chairs Polyurethane Seatings Non Slip Strips PU Foamed
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS/CTI |
| Model Number: | AC3861 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | mixed package or custom 1 set/box |
| Payment Terms: | T/T |
| Supply Ability: | ~10,000 sets per month |
- Description
Description
Detailed Product Description
Back Rest ESD Cleanroom Chairs Polyurethane Seatings Non Slip Strips PU Foamed

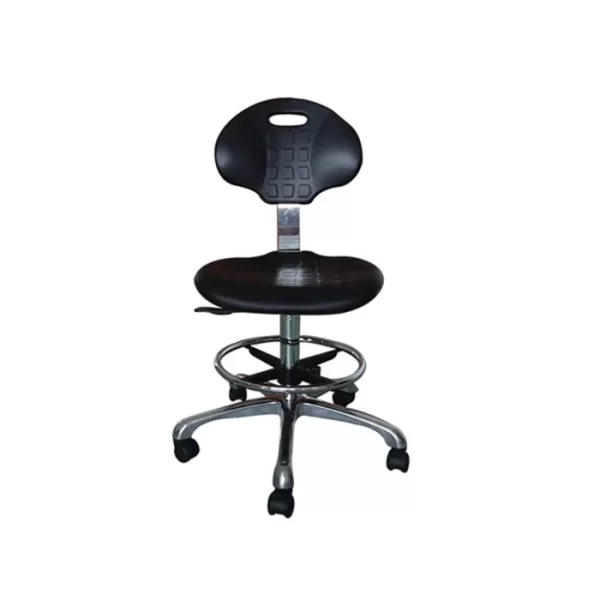

Cleanroom ESD Work Chair : AC3861
Description: It is made of polyurethane seat and backrest with non-slip strips, which could be applied in Cleanroom Class 100-1000, and esd grounding resistivity up to 109ohms.
Features:
1) Conductive metal chain acts as ground.
2) Adjustable height and chrome foot ring, options available for adjustable seat and backrest.
3) Cleanroom Class 100-1000 certified.
4) ESD grounding resistivity range from 107 to 109 ohms
5) 5 star aluminum die cast base, Radius 320mm
6) PA nylon castors, options glides available. If used in EPA sensitive area, conductive castors or glides recommended, which could provide maximum dissipation of electro-static discharge
7) Resists stains, punctures and chemicals.
8) Height adjustable: 600-800mm
9) Weight capacity 300LBS
10) Warranty: 1Year
11) Pacakge: partially assembled

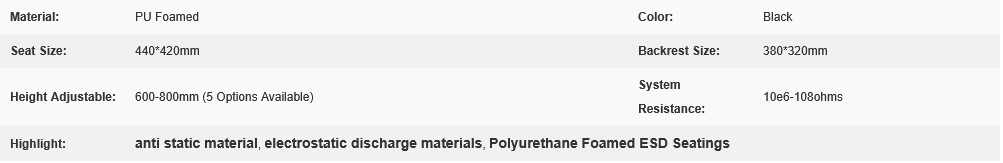

Technical Spec
| Item | ESD Work Chair | Base | Five-Star Aluminum Die Cast, R320mm |
| Material | Polyurethane | Weight Capacity | 300LBS |
| Back Size | 380*320mm | Height Adjustable | 600-800mm |
| Seat Size | 440*420mm | Color | Black |
Parts List:
- Support Bar Q’ty 1pcs ( L-shape, width 60mm & thickness 6mm)
- Backrest w/hinge assembly and handwheel Q’ty 1pcs
- Seat w/control Mechanism Q’ty 1pcs
- Aluminum Five-star Base Q’ty 1pcs
- Pnuematic Cylinder Q’ty 1pcs
- Glides/Casters Q’ty 5pcs
- Footring (optional) Q’ty 1pcs
- Armrests (optional) Q’ty 1pair
Assembly Instructions
- Insert glides or casters into each leg of the base.
- Slide footring onto cylinder.
- Slide the cylinder into the center of the base.
- Place seat with control mechanism onto the end of the pneumatic cylinder. Sit on seat to secure fit onto cylinder.
- Slide screw through slot in back support bar so it is aligned with the two raised squares on hinge assembly, then position white washer against back bar and then tighten handwheel securely.
- Slide bottom of back support bar into the opening of the control mechanism underneath back of seat. Tighten handwheel securely.
- Optional arms available for ESD leather seat series. Slide arm bracket into mounting plate attached underneath seat. Tighten handwheel securely.
Applications
Widely used in EPA / Clean room environment

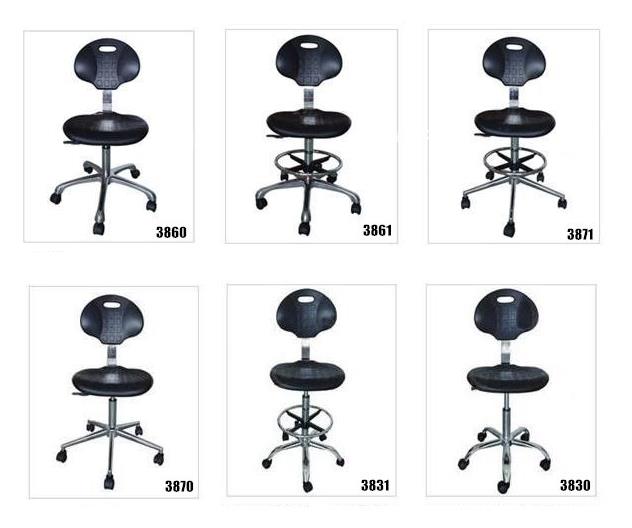

More Styles
