110gsm Anti Static Polyester Fabric 2/3 Twill Woven Style For Biopharmaceutical Industry
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | AF0082 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/knitting bags |
| Delivery Time: | 25-40 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1,000,000 meters per month |
- Description
Description
Detailed Product Description
110gsm Anti Static Polyester Fabric 2/3 Twill Woven Style For Biopharmaceutical Industry

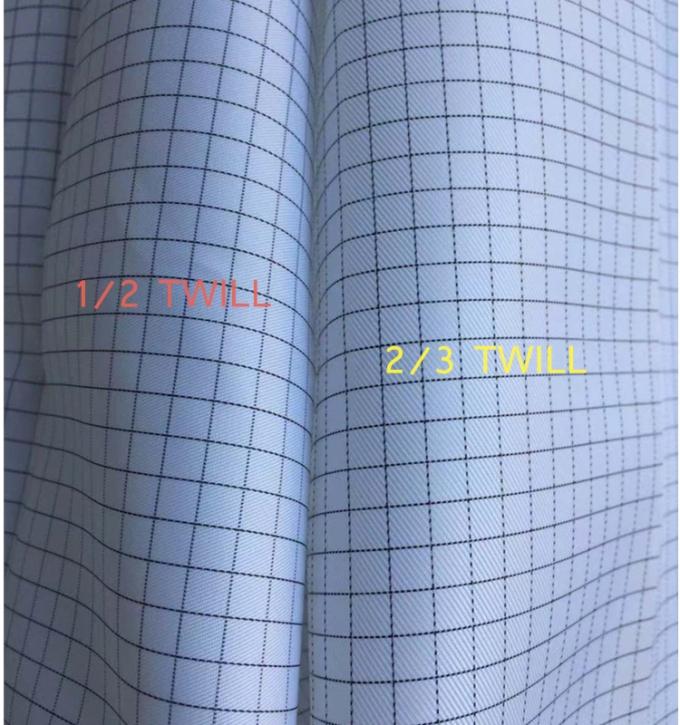

ESD 2/3 Twill Polyester Fabric 5mm Grid: AF0082
Description: Anti-static ESD 2/3 Twill Polyester Fabric,5mm Grid
Applications: ESD protection in clean rooms, work wear
Features:
1) This kind of garments/cap/boots/facemask which are sewed with esd fabric, offer extremely good resistance to static, chemicals and abrasion. It is designed for Class 100-1000 cleanrooms and higher. And it is applicable in medicals, biology.
2) Meets ESD standards, system resistance 106-107ohms
3) Autoclavable at 121 degrees if adopts special low-shrinkage conductive fiber

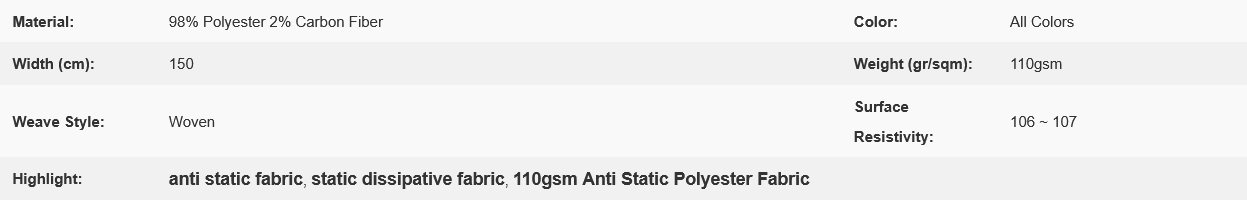

Specifications:
| Spec | Value | Test Method |
|---|---|---|
| Material | 98% Polyester 2% Carbon Fiber | |
| Available Colors | All colors | |
| Carbon Configuration | 5mm Grid | |
| Width (cm) | 150 | |
| Weight (gr/sqm) | 110gsm | |
| Surface Resistivity (ohm/unit) | 106 ~ 107 | |
| Friction charges (V) | <150 | |
| Number of yarns (denier) Warp Weft |
75DFDY*75DFDY | |
| Weave style | Woven | |
| Recommended Class Of Cleanroom | Class 100~1000 |
Our ESD Woven Fabric 75D series
| Model | Spec | Yarn Count | Weight | Density | Charge Density | Friction Voltage |
| AF0061 | Strip 5mm | 75D36F*75D36F | 90-95g/m2 | 160*88ends/inch | 1.2uc/m | <300V |
| AF0062 | Strip 5mm | 75D36F*100D36F | 110-115g/m2 | 188*90ends/inch | 1.2uc/m | <300V |
| AF0063 | Strip 5mm | 75D36F*75D36F | 105-110g/m2 | 188*120ends/inch | 1.0uc/m | <200V |
| AF0081 | Grid 5mm | 75D36F*75D36F | 90g-95g/m2 | 160*88ends/inch | 1.0uc/m | <200V |
| AF0082 | Grid 5mm | 75D36F*75D36F | 105-110g/m2 | 188*120ends/inch | 0.8uc/m | <150V |
Other ESD Fabric & Products we Supply
- Other ESD Fabric: Antistatic TC and CVC fabric, Antistatic knitted diamond fabric, Antistatic knitted fabric, Antistatic polyester stripe fabric,
- Cleanroom Apparels(Disposable)
- Cleanroom Cleaning Supplies(Wipes, Tacky Rollers, Mops, Brushes, Swabs),
- Cleanroom &ESD Chairs/Stools,
- Cleanroom Documentation(Paper, Pen, Notebook),
- Cleanroom Gloves(Finger Cots, PU Coated Glove, PVC Dotted Glove)
- Cleanroom Mats(Sticky Mat, Table/Floor Mat, Anti-fatigue Mat),
- ESD Package Materials(Bags, Tapes etc),
- ESD Storage Materials (Bins, Trays, Circulation Box, Solvent Dispensers),
- ESD Wrist/Heel Straps/Grounding Cords.
- Static Control Ionizing Blower/Gun/Nozzle,
- Illuminated Magnifier,
- Cleanroom Curtain and etc
