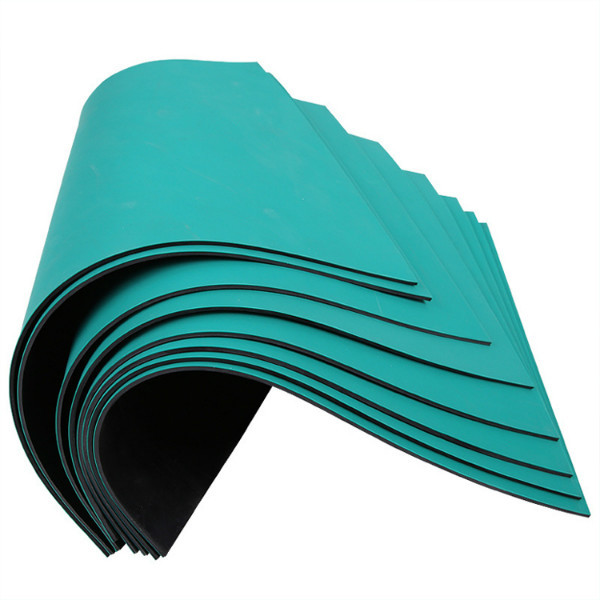

106 Ohms Cleanroom ESD Rubber Static Dissipative Mat
| Place of Origin: | China |
| Brand Name: | allesd |
| Certification: | ISO/SGS |
| Model Number: | EM0101 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 1roll/box, export pallet |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Supply Ability: | 50,000rolls per month |
- Description
Description
Detailed Product Description
Green Blue Black Grey Cleanroom Static Discharge Anti-static ESD Rubber Mat Table Mat Floor Mat
Product Description

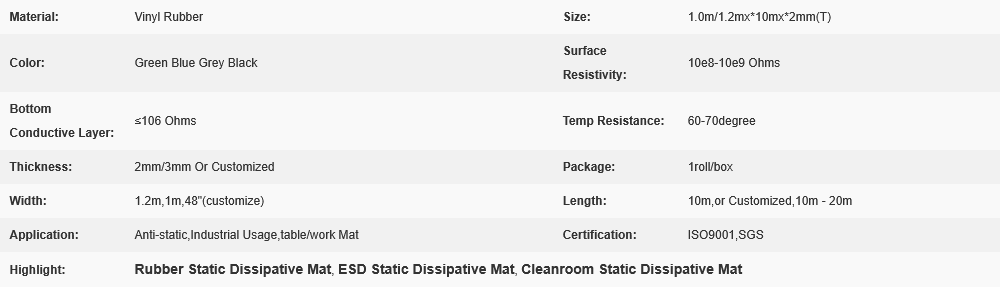

| Construction Material: | Rubber |
| Color: | Green, blue, gray, black |
| Normal Size: | 0.6,0.9,1.0,1.2M*10m*2mm or Custom |

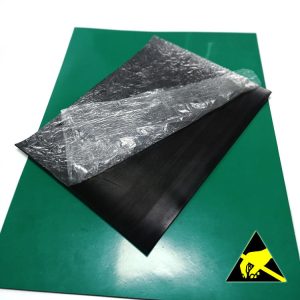

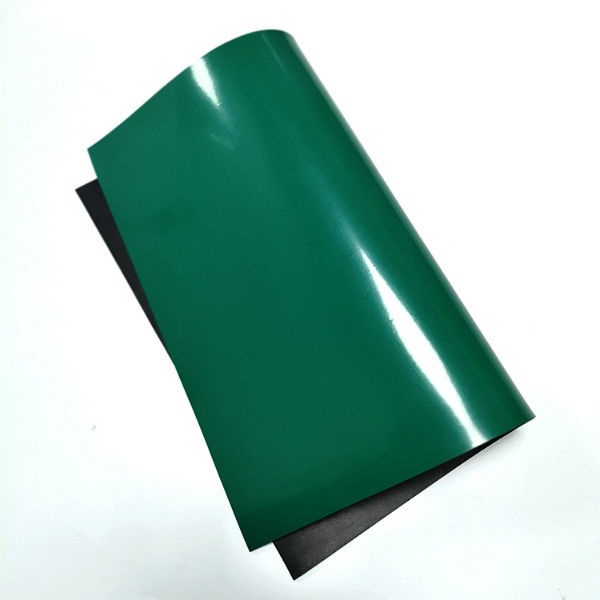

| Two layers: | Static Dissipation layer + Conductive layer |
| Surface: | Shiny or dull |
| Gross Weight: | around 35kg/roll |
| Remarks: | Above sizes are standard, customized size available. |
Features:
1, Anti-static, widely used in electronic assembly, cleanroom, semiconductor production lines work table/floor
2, Two layers contruction proportion 1:1
Top Static Dissipation Layer (Color: Green/Blue/Grey options)
Bottom Conductive Layer (Color: Black)
3, Some of the Characteristics are as follows:
| Dissipative Table Mat/Floor Mat | Specification | Color | ||
| Static Dissipation layer | Surface resistance | 108-109 |
1.2mx*10mx*2mm(T) 1.0mx*10mx*2mm(T) |
Blue, Grey, Green |
| Friction static potential V | ＜100 | |||
| Conductive layer (black bottom) | Surface resistance | ≤106 | ||
| Friction static potential V | ＜60 | |||
| Static voltage attenuation period | 5000 – 500V | ＜1.9s | ||
| Flame retardation | GB4609-84, FV-0 (less than 10S) | |||
| Volume resistance | 107-1010Ωcm | |||
| Physical performance index of Dissipative Table/Floor Mat | ||||
| No. | Description | Test reference | Results | |
| 1 | Tensile strength | GB 1040 | 3.6Mpa | |
| 2 | Fracture elongation | GB 1040 | 188% | |
| 3 | Tear elongation | GB/T 529 | 20.6KN/m | |
| 4 | Rebound elasticity (the specimen is laminated with 6 layers of sheets) | GB/T 1681 | 14% | |
| 5 | Impact embrittlement temperature (no cut) | GB 5470 | No damage | |
| at -25℃ | ||||
| 6 | Permanent compression change rate, 70℃*22h, compression 25% | GB 10654 | 17.90% | |
| 7 |
Hot air ageing |
Tensile strength change rate |
GB/T 7141 |
8.00% |
| Fracture elongation change rate | -3.80% | |||
| Weight loss on heating | 1.08% | |||
| Remarks | Test according to national standards: GB 1040, GB/T 529, GB/T 1671, GB 5470, GB 10654 and GB/T 7141. | |||
